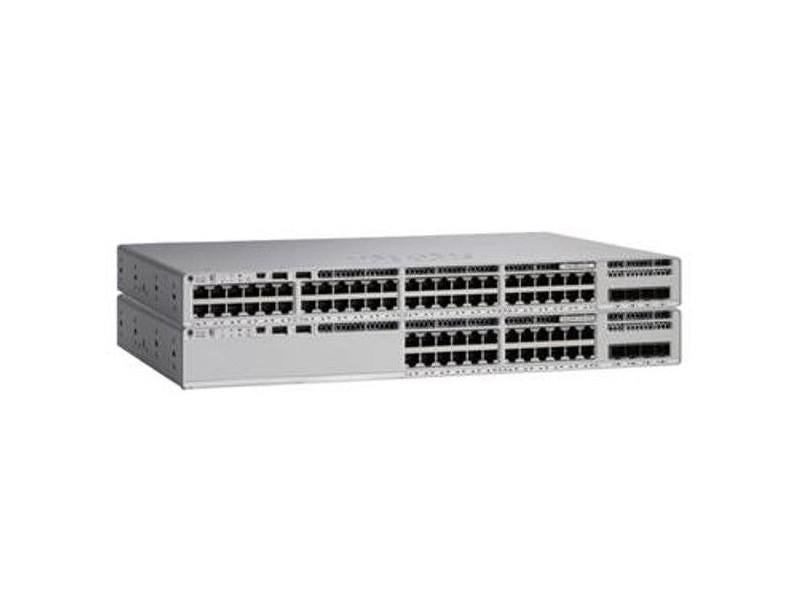

Cisco Catalyst C9200L-24PXG-4XA++ 24-Port Managed PoE+ Switch

VENDOR: CISCO Mfg Part#: C9200L-24PXG-4XA++ UPC#: 889728173223
  • The Cisco Catalyst C9200L-24PXG-4XA++ is a TAA-compliant 24-port managed L3 switch built for enterprise-grade performance with Power over Ethernet Plus (PoE+), multigigabit Ethernet, and advanced network routing. Offering Network Advantage features, this rack-mountable switch ensures high-speed stacking, strong security via MACsec, and robust remote management capabilities.
1 1
Photo is for illustration purposes only. Actual product may be different.
$5,646.61
$5,646.61
Sale Sold out
MSRP: $8,213.26
Shipping calculated at checkout.
  • 24 managed ports: 8 multigigabit (100/1000/2.5G/5G/10GBase-T), 16 Gigabit PoE+
  • 4 x 10 Gigabit SFP+ uplink ports for high-speed connectivity
  • PoE+ power budget of 370W with support for up to 600W total power
  • Switching capacity: 272 Gbps (352 Gbps with stacking), forwarding rate: 214.28 Mpps
  • Routing protocol support: OSPF, EIGRP, RIP, VRRP, PIM-SM/SSM, BGP, OSPFv3, etc.
  • Remote management via SNMP, CLI, RESTCONF, NETCONF, and YANG
View full details

Key Benefits

Eye-Insights
  • Delivers multigigabit Ethernet and flexible uplinks to support high-bandwidth and PoE-powered devices in enterprise environments
  • Advanced Layer 3 features and routing protocols enable scalable segmentation, making it ideal for growing and complex networks
  • TAA compliance, MACsec support, and lifetime hardware warranty ensure suitability for high-security and regulated deployments

Product Overview

The Cisco Catalyst C9200L-24PXG-4XA++ is a high-performance Layer 3 managed switch featuring 24 total ports — 8 multigigabit and 16 PoE+ Gigabit ports — along with 4 x 10G SFP+ uplinks. Offering a switching capacity of 272 Gbps (352 Gbps with stacking) and PoE+ budget of 370W, it supports robust Power over Ethernet for modern workloads. Built for security and scale, it incorporates MACsec encryption, advanced Layer 3 routing protocols, and Cisco StackWise-80 technology for horizontal expansion. Remote management is simplified with SNMP, NETCONF, RESTCONF, and YANG support. Its TAA compliance and AES encryption make it ideal for regulated industries and secure enterprises. The switch delivers enterprise-grade resilience, scalability, and future-forward performance in a compact, rack-mountable form factor.

Specifications

Primary Information
Status Indicators LED indicators
Model C9200L-24PXG-4X-A
Network Device Type Switch
Form Factor 1U
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 2 GB
Flash Memory / Installed Size 4 GB
Networking Compliant Standards IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3bt
Power / Device Type Power Supply
Media Layer Supported Layer 2 and Layer 3
Uplink Port 4x 1/10G fixed uplinks
Power / Provided (W) 600 Watt
Power Consumption Operational 370W Watt
Power / Voltage Required 100 to 240 VAC, 50 to 60 Hz
MTBF 379410 hours

Service&Support
Service & Support Type Enhanced Limited Lifetime Warranty

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 24-port 8xmGig, 16x1G, 4x10G, PoE+

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 13.8 Inch
Height 1.73 Inch
Weight 5.44 Kg

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature -5 celsius
Max Operating Temperature 45 celsius
Min Storage Temperature -40 celsius
Max Storage Temperature 70 celsius
RoHS Y

Network
Power Over Ethernet (PoE) Support Yes
PoE Power Consumption 370W
MAC Address Table Size 16000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; SNMP
Routing Protocol RIPv1, RIPv2,OSPFv3
Interfaces 24-port 8xmGig, 16x1G, 4x10G, PoE+
