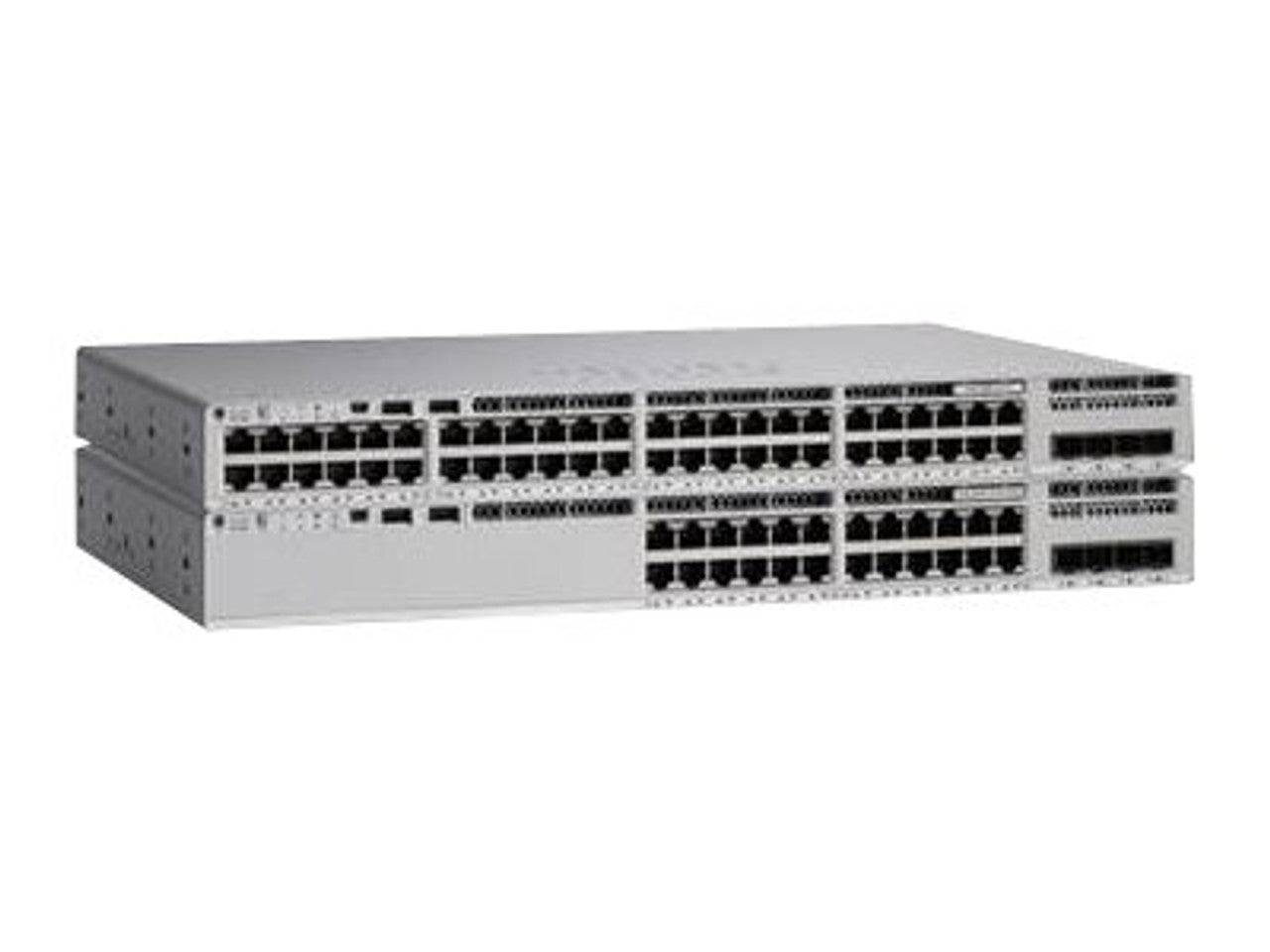

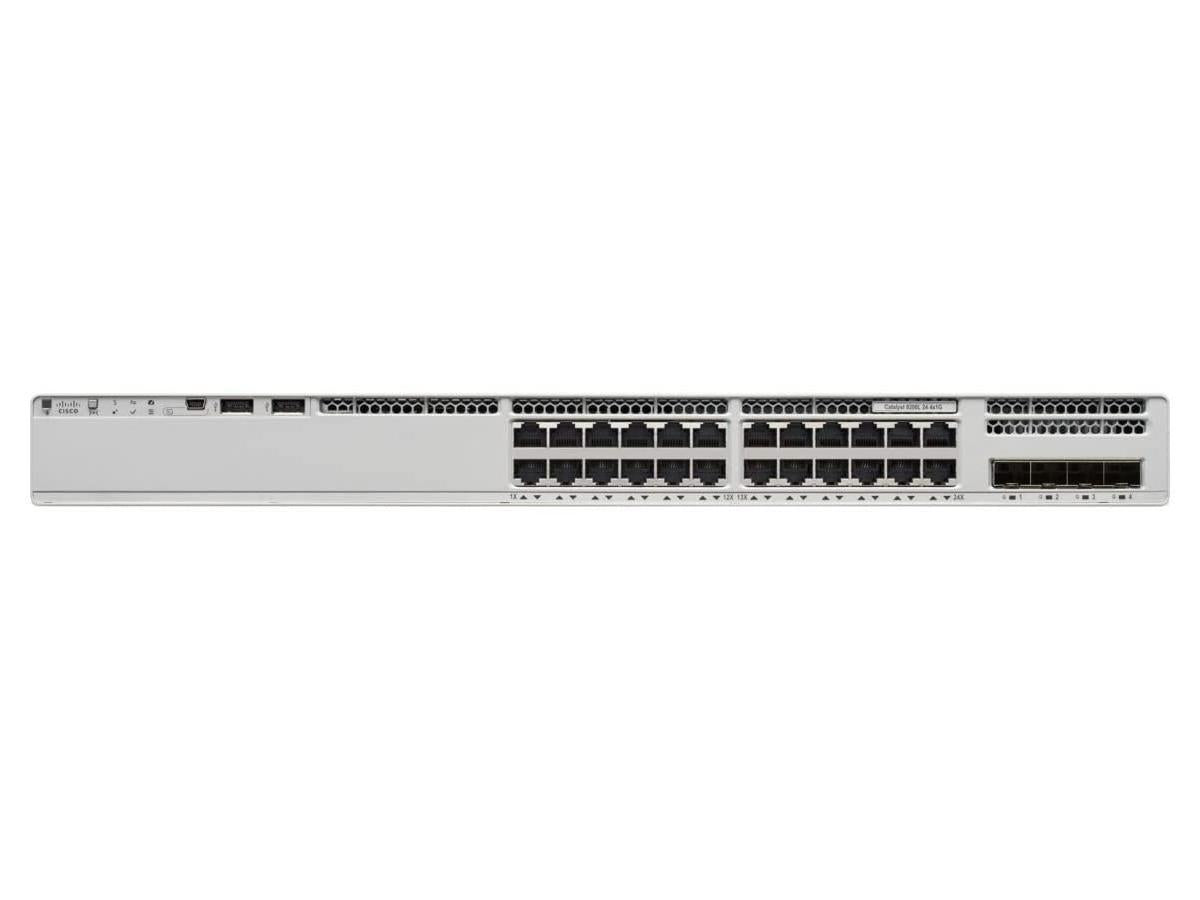

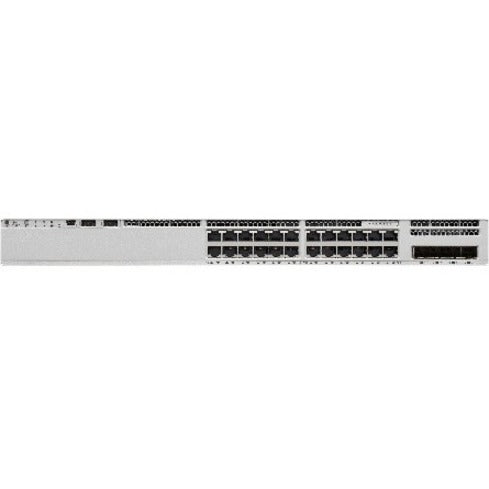

Cisco Catalyst C9200L-24T-4X-E++ 24-Port Gigabit Managed Switch

VENDOR: CISCO Mfg Part#: C9200L-24T-4X-E++
1 2
Photo is for illustration purposes only. Actual product may be different.
$2,610.72
$2,610.72
Sale Sold out
MSRP: $3,829.05
Shipping calculated at checkout.
  • 24 x 10/100/1000 RJ-45 ports and 4 x 10G SFP+ uplinks
  • Layer 3 managed switch with support for multiple routing protocols including OSPF, EIGRP, RIP, IS-IS, and IPv6
  • StackWise-160 support with 208 Gbps stacking bandwidth and 128 Gbps switching capacity
  • Advanced features: QoS, MACsec, Flexible NetFlow, VLAN support (1024 VLANs), and Energy Efficient Ethernet
  • Remote management via SNMP (v1/v2c/v3), CLI, RESTCONF, and NETCONF
  • TAA compliant and includes limited lifetime warranty with next business day replacement

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables scalable enterprise networking with 24 Gigabit ports and 4 x 10G uplinks, ideal for core and aggregation layers.
  • Supports comprehensive security and traffic optimization features, including MACsec, NetFlow, and per-port QoS.
  • Backed by Cisco’s Enhanced Limited Lifetime Warranty with rapid next-business-day replacement for minimized downtime.

Product Overview

The Cisco Catalyst C9200L-24T-4X-E++ is a high-performance, rack-mountable Layer 3 managed switch built to meet the demands of modern enterprise networks. Featuring 24 gigabit Ethernet ports and 4 x 10 Gigabit SFP+ uplink ports, the switch supports advanced stacking capability with a bandwidth of up to 208 Gbps via Cisco StackWise-160. It delivers reliable throughput with a forwarding rate of 95.23 Mpps and switching capacity of 128 Gbps, making it suitable for high-density environments requiring uninterrupted performance.

With 2 GB RAM and 4 GB flash memory, this switch supports an expansive set of routing protocols and enterprise-grade features including Flexible NetFlow, MACsec encryption, QoS, and support for up to 1024 VLANs. Security and manageability are enhanced through policy-based routing, First Hop Security (FHS), and Remote Switch Port Analyzer (RSPAN), broadcast storm control, and extensive remote management protocol support including SNMP, NETCONF, and RESTCONF.

Backed by a limited lifetime warranty and TAA compliance, and with a robust MTBF of over 525,000 hours, the C9200L-24T-4X-E++ is a secure, scalable, and reliable solution ideally suited for complex enterprise network environments.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Form Factor Rack-mountable
Rack Units 1U
Weight 9.59 lbs
Power Requirements AC 100-240 V (50 - 60 Hz)
Power Provided 125 Watt
Power Device Internal power supply - hot-plug
Power Redundancy Optional
MTBF 525,990 hours
RAM 2 GB
Flash Memory 4 GB

Cloud Management & Licensing
Management Protocols SNMP v1/v2c/v3, RMON 1/2, CLI, NETCONF, RESTCONF
Management Features Cisco DNA Center, Web UI, CLI, Flexible NetFlow
Included Software Network Essentials license

Physical & Environmental
Width 17.5 in
Depth 11.3 in
Height 1.7 in
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Operating Humidity 5 - 90% (non-condensing)
Storage Humidity 5 - 90% (non-condensing)

Interfaces
Total Number of Ports 28
Downlink Ports 24 x 10/100/1000 RJ-45
Uplink Ports 4 x 10 Gigabit SFP+
Console Ports 1 x RJ-45 console port
Management Ports 1 x RJ-45 management port
Stacking Port(s) 1 x StackWise port
Interface Bandwidth StackWise: 208 Gbps
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
Jumbo Frame Support 9198 bytes

Advanced Security Features
Encryption 128-bit AES (MACsec)
Access Control ACLs, First Hop Security (FHS), Control Plane Protection (CoPP), Port Security
Security Protocols 802.1X, DHCP Snooping, Dynamic ARP Inspection (DAI), IP Source Guard
Network Monitoring SPAN, RSPAN, Embedded Event Manager (EEM)

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 Class A, RoHS, VCCI Class A, BSMI Class A, ICES-003 Class A, EN 55022 Class A, EN 55024, CISPR 22/24, EN 300 386
IEEE Standards 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1x, 802.1ab, 802.3ad (LACP)
