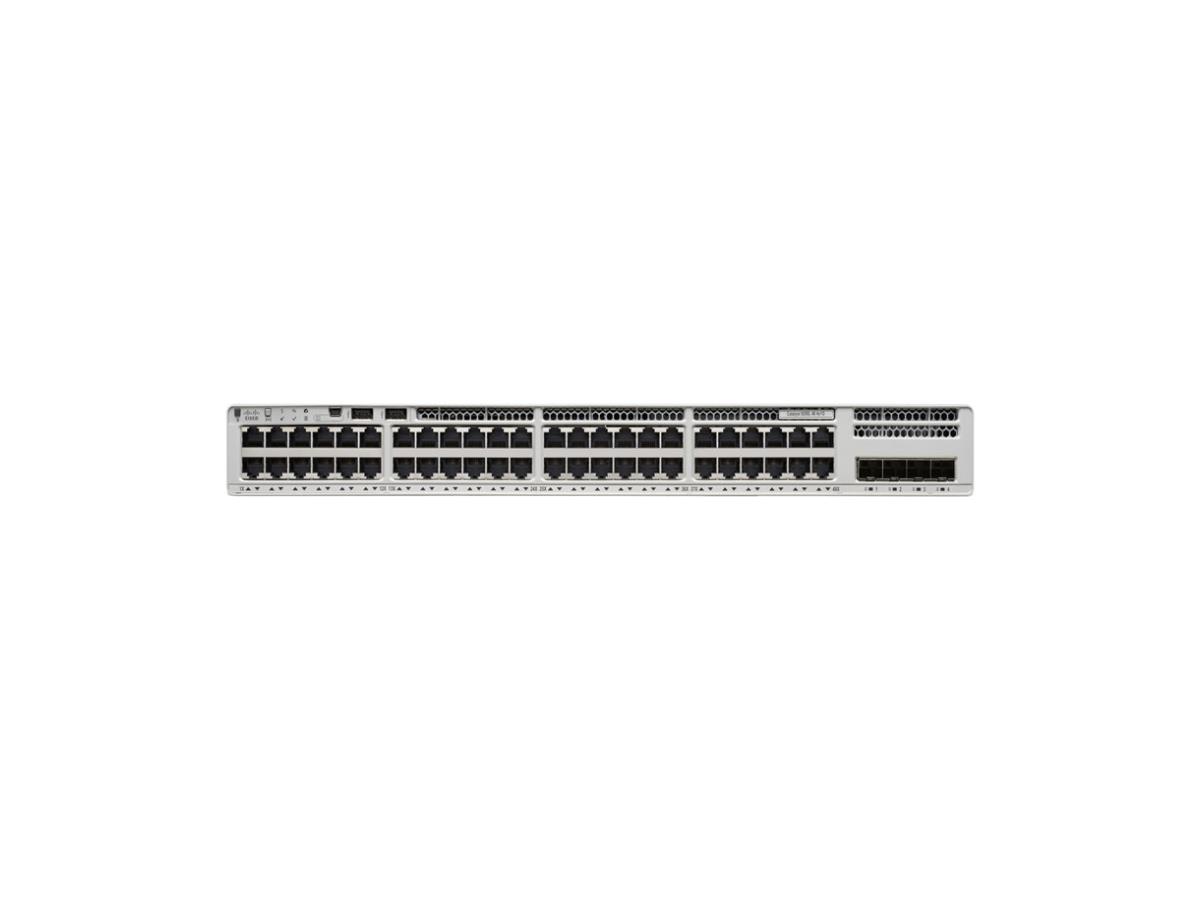

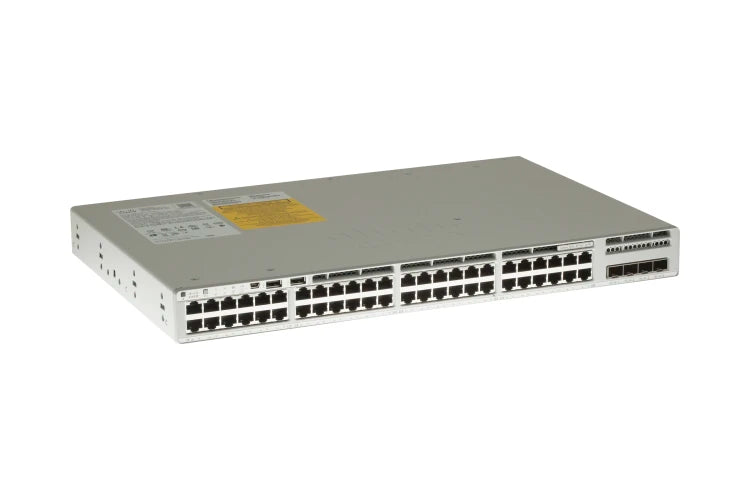

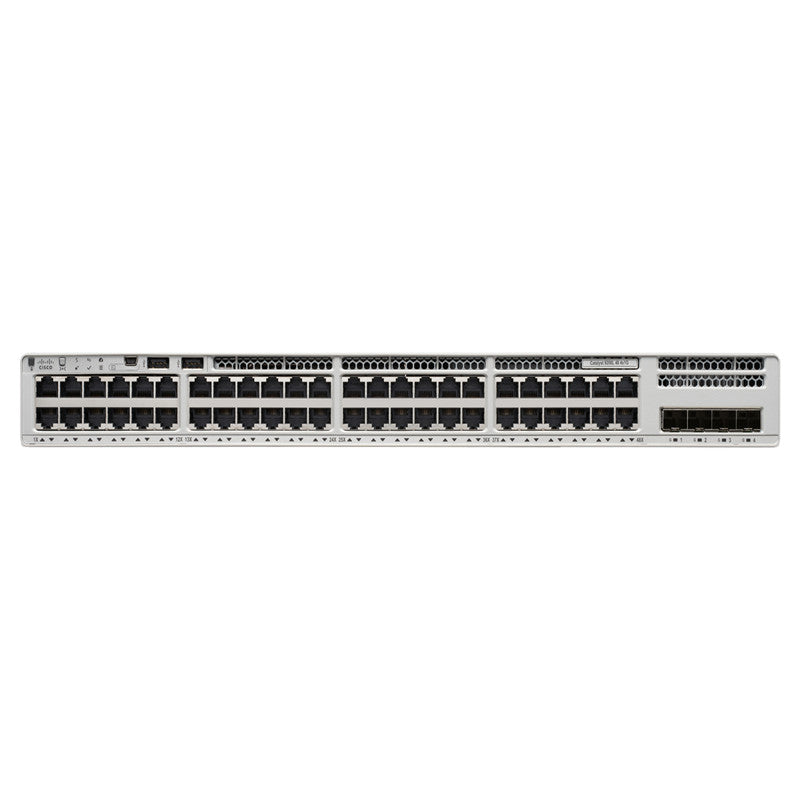

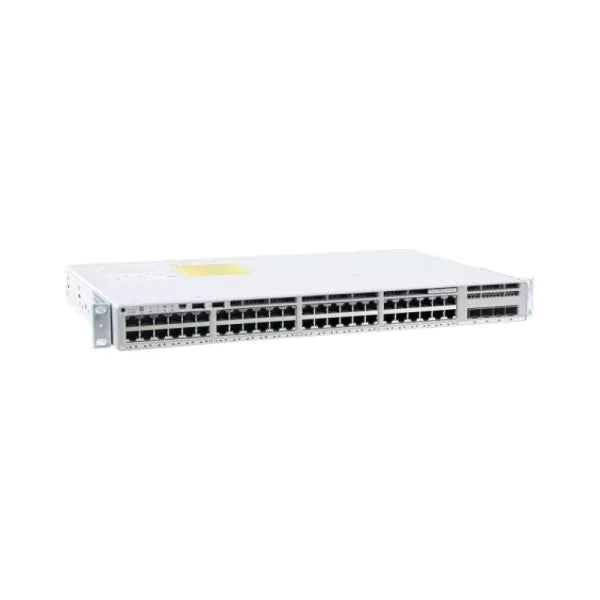

Cisco Catalyst C9200L-48P-4G-E 48-Port PoE+ Switch, 4x1G Uplink

VENDOR: CISCO Mfg Part#: C9200L-48P-4G-E++
  • C9200L-48P-4G-E is a Catalyst 9200L 48-port PoE+ switch with four 1G uplinks, built to deliver enterprise-level performance, scalability, and advanced Layer 3 features. Designed in a 1RU form factor, it provides high-density Gigabit Ethernet, supports up to 740W of PoE power, and ensures robust remote management via protocols like SNMP, RMON, and Syslog. Backed by a limited lifetime warranty, it also boasts an MTBF of 347,760 hours, offering reliable operation for critical infrastructures.
1 1
Photo is for illustration purposes only. Actual product may be different.
$4,863.49
$4,863.49
Sale Sold out
MSRP: $7,074.18
Shipping calculated at checkout.
  • 48-port PoE+ configuration with 740W power budget
  • 4x 1G fixed uplink ports for scalable connectivity
  • Supports Layer 2 and Layer 3 protocols including OSPF and EIGRP
  • Jumbo frame support up to 9198 bytes
  • 2 GB RAM and 4 GB flash memory for efficient performance
  • Comprehensive remote management via SNMP, RMON, Syslog, and DHCP
View full details

Key Benefits

Eye-Insights
  • Delivers high-density PoE+ support to power a broad range of connected devices without additional infrastructure
  • Enterprise-class Layer 3 routing and compliance with key networking standards ensure seamless integration into complex environments
  • Long service life backed by a 347,760-hour MTBF and Enhanced Limited Lifetime Warranty reduces total cost of ownership

Product Overview

The Cisco Catalyst C9200L-48P-4G-E is a fixed-configuration, enterprise-grade network switch engineered for performance, security, and operational simplicity. With 48 Gigabit PoE+ ports and 4 fixed 1G uplinks, this switch provides the power and throughput needed for demanding campus and branch-office environments. It offers comprehensive routing protocol support, including OSPF, EIGRP, ISIS, and RIP, enabling seamless Layer 3 integration within complex networks.

Featuring a robust PoE+ capacity of up to 740W, it is ideal for powering IP phones, wireless access points, and other PoE-enabled devices without the need for separate electrical installations. The switch includes key industry standard compliances such as IEEE 802.3af/at and supports jumbo frames up to 9198 bytes. With 2 GB RAM, 4 GB flash memory, and a MAC table capacity of 16,000, it is optimized for high-volume traffic handling. Management is streamlined with support for SNMP, Syslog, DHCP, and RMON protocols.

Its compact 1RU form factor and enhanced limited lifetime warranty make it a cost-effective yet powerful foundation for modern networks. With TAA compliance and an impressive MTBF of over 347,000 hours, the C9200L-48P-4G-E stands out as a dependable choice for public sector and enterprise deployments.

Specifications

Primary Information
Network Device Type Switch
Form Factor 1RU
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Model C9200L-48P-4G-E
Connectivity Technology Wired
Status Indicators LED indicators
RAM / Total Installed Size 2 GB
Flash Memory / Installed Size 4 GB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at
Media Layer Supported Layer 2 and Layer 3
Power / Device Type Power Supply
Uplink Port 4x 1G fixed uplinks
Power / Provided (W) 1 KW
Power / Voltage Required 100 to 240 VAC
MTBF 347760 hours
Features Cisco Software-Defined Access (SD-Access) Plug and Play (PnP) enabled Cisco IOS XE Cloud management ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries.

Service&Support
Service & Support Type Enhanced Limited Lifetime Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Interfaces 48-port PoE+; 4x 1G fixed uplinks, Ethernet management port, Management console port
Power Over Ethernet (PoE) Support YES
PoE Power Consumption 740W
MAC Address Table Size 16000
Jumbo Frame Support 9198 bytes
Remote Management Protocol DHCP; Syslog; RMON; SNMP
Routing Protocol OSPF, EIGRP, ISIS, RIP
Encryption Algorithm AES

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 11.3 Inch
Height 1.73 Inch
Weight 4.8 Kg

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature -5 degree celsius
Max Operating Temperature 45 degree celsius (1500m); 40 degree celsius (3000m)
Min Storage Temperature -40 degree celsius
Max Storage Temperature 70 degree celsius

Interfaces / Ports
Interfaces 48-port PoE+; 4x 1G fixed uplinks, Ethernet management port, Management console port
