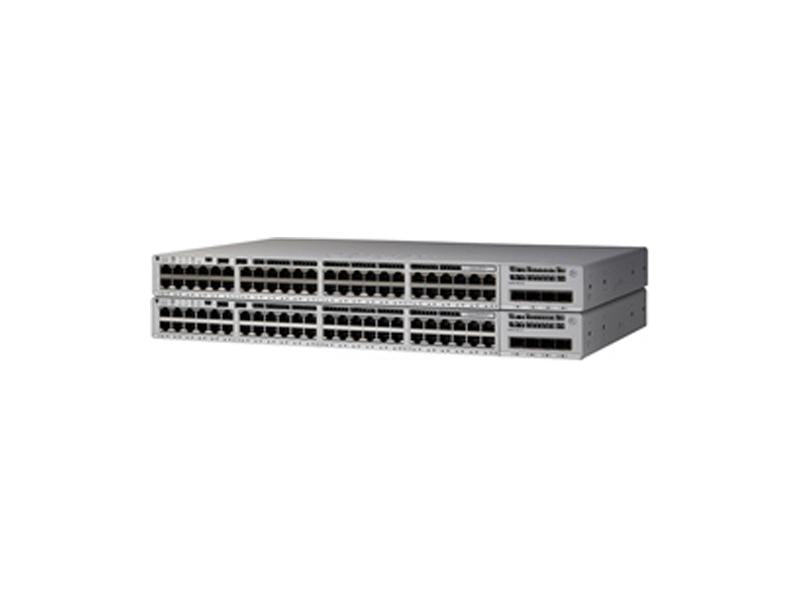

Cisco Catalyst C9200L-48P-4X-A++ 48-Port PoE+ TAA Switch

VENDOR: CISCO Mfg Part#: C9200L-48P-4X-A++ UPC#: 889728173216
  • TAA C9200 48P POE+, 4 X 10G, NETWORK ADV
1 1
Photo is for illustration purposes only. Actual product may be different.
$5,626.40
$5,626.40
Sale Sold out
MSRP: $8,252.06
Shipping calculated at checkout.
  • 48 x 10/100/1000 PoE+ ports and 4 x 10G SFP+ uplinks for high-speed connectivity and scalability
  • 1440W PoE+ budget supports power delivery for devices like APs and VoIP phones
  • 176 Gbps switching capacity with up to 261.9 Mpps forwarding rate for high-performance data transfer
  • Supports Layer 3 routing protocols including OSPF, EIGRP, RIP, IS-IS, and more
  • StackWise Technology with 80 Gbps stacking bandwidth enables scalable deployment
  • TAA-compliant, rack-mountable design with optional power redundancy and extended lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise environments requiring high port density and PoE+ power, with 48 PoE+ ports and 1440W budget
  • Supports Layer 3 features and advanced protocols for robust routing, scalability, and security
  • Backed by Cisco's limited lifetime warranty and TAA compliance for reduced risk and federal procurement readiness

Product Overview

The Cisco Catalyst C9200L-48P-4X-A++ is a fully managed, enterprise-grade Layer 3 switch with 48 PoE+ ports and 4 10G SFP+ uplinks. It delivers 176 Gbps switching capacity and features Cisco StackWise Technology for stackable scalability. Built for performance, it supports advanced Layer 3 routing, multicast, and security protocols like MACsec and VRRP. Network automation and monitoring are enabled via CLI, SNMP, and RESTCONF support. A 1440W PoE budget allows direct power delivery to devices such as APs and VoIP phones. TAA compliance and an MTBF of 346,270 hours further make it a reliable choice for commercial and government-grade deployments. Backed by Cisco’s lifetime warranty with next-business-day replacement, this switch offers dependable service continuity and investment protection.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Form Factor Rack-mountable
Mounting Type Rack-mountable, 1U
Switching Capacity 176 Gbps
Forwarding Rate 261.9 Mpps
Stacking Bandwidth 80 Gbps
PoE Budget 1440 W
PoE Support 802.3af/at (PoE+)
MAC Address Table Size 16,000 entries
Jumbo Frame Support 9198 bytes
RAM 2 GB
Flash Memory 4 GB
Power Requirements AC 100-240 V (50 - 60 Hz)
Power Supply Type Internal, hot-plug
Power Redundancy Optional, supports up to 2 PSUs
MTBF 346,270 hours
Warranty Limited lifetime warranty with next business day replacement

Cloud Management & Licensing
Software Licensing Network Advantage
Remote Management Protocols SNMP 1/2c/3, RMON 1/2, CLI, NETCONF, RESTCONF

Physical & Environmental
Width 17.5 in
Depth 11.3 in
Height 1.7 in
Weight 12.13 lbs
Operating Humidity 5% to 90% (non-condensing)
Storage Humidity 5% to 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F

Interfaces
Total Ports 52
10/100/1000 Ports (RJ-45) 48 PoE+
10G SFP+ Uplink Ports 4
Stacking Port 1 x network stack device
Management Port 1 x RJ-45 (LAN)
Console Port 1 x RJ-45
QoS Hardware Queues Per Port 8

Advanced Security Features
802.1X Authentication Yes
MACsec Support Yes
Control Plane Protection (CoPP) Yes
Private VLAN (PVLAN) Support Yes
First Hop Security (FHS) Yes
Access Control Lists (ACLs) 1500 entries

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
Certifications CISPR 22/24, FCC Part 15 Class A, UL 60950-1, EN 60950-1, VCCI Class A, ICES-003 Class A, BSMI, CCC, RCM, CAN/CSA-C22.2 No. 60950-1
