Cisco Catalyst C9200L-48PXG 48-Port PoE+ Managed Switch

VENDOR: CISCO Mfg Part#: C9200L-48PXG-2Y-1E
  • The Cisco C9200L-48PXG-2Y-1E is a highly capable Layer 3 managed switch built for scalability and secure enterprise networking. With 48 ports, advanced PoE+ support, and Cisco Network Essentials software included for one year, it is designed to support demanding performance in distributed edge environments. Premium stacking, enhanced policy capabilities, and a robust feature set deliver high availability and switch redundancy along with a limited lifetime warranty.
1 1

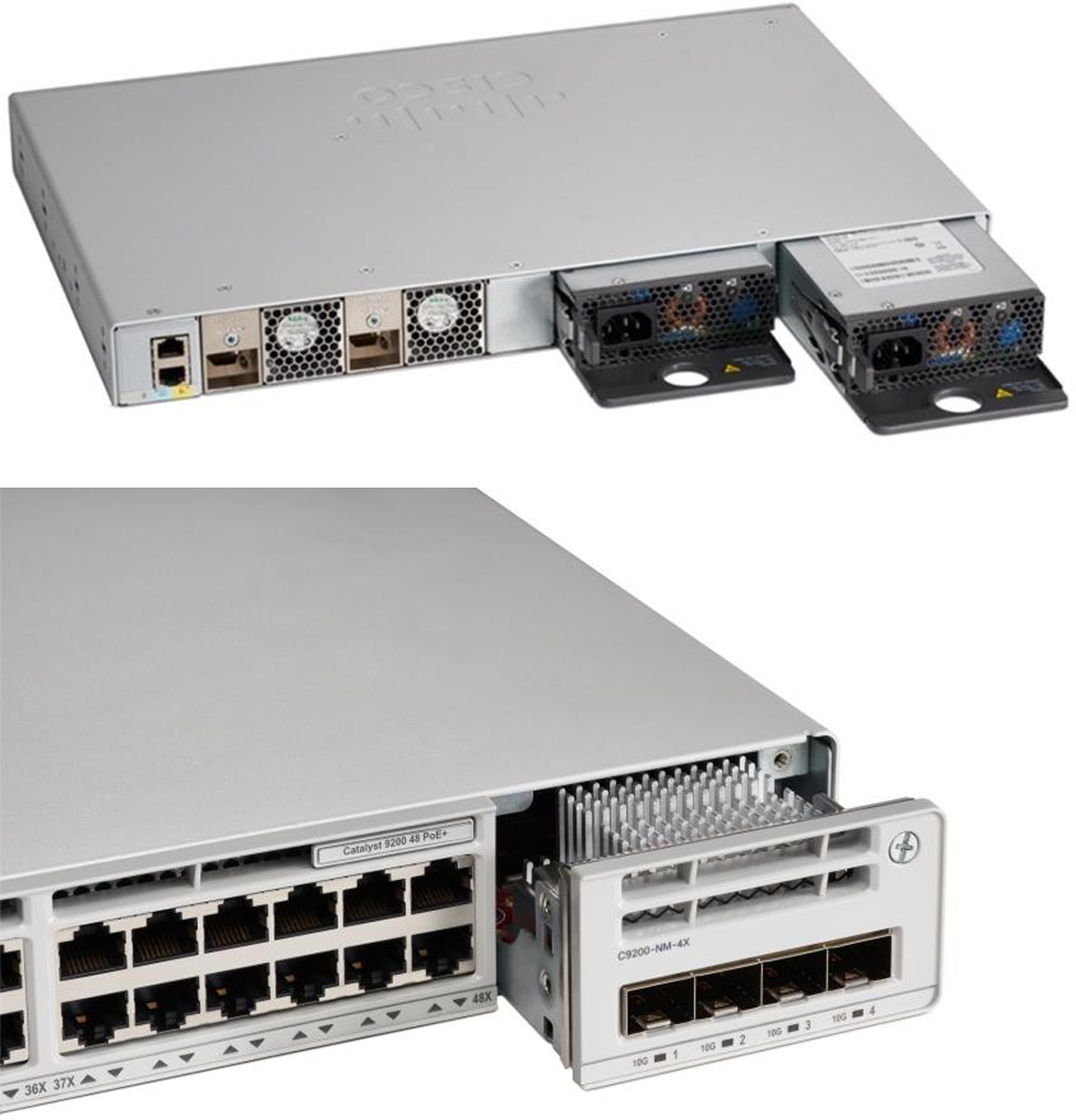

Photo is for illustration purposes only. Actual product may be different.
$8,813.92
$8,813.92
Sale Sold out
MSRP: $12,820.24
Shipping calculated at checkout.
  • 48-port PoE+ Gigabit Ethernet Layer 3 switch with 740W power budget
  • Dual 25Gbps uplink ports and StackWise-80 stacking up to 80 Gbps bandwidth
  • Switching capacity up to 420 Gbps and forwarding rate of 252.97 Mpps
  • Comprehensive Layer 2/3 support including OSPFv3, EIGRPv6, VLANs, RIPng
  • 2GB RAM, 4GB Flash, MACsec encryption, and Jumbo Frame support (9198 bytes)
  • Advanced remote management via SNMP, RESTCONF, NETCONF, and CLI
View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise edge and access layer with robust PoE+ support and a 740W power budget
  • Supports high availability with stackable architecture and hot-pluggable power redundancy
  • Comes with a Cisco-enhanced limited lifetime warranty and 1-year Network Essentials license included

Product Overview

The Cisco Catalyst C9200L-48PXG-2Y-1E delivers powerful Layer 3 switching performance with 48 PoE+ Gigabit Ethernet ports and dual 25G uplinks. Designed for rack-mounted enterprise deployments, this compact 1U switch supports a PoE budget of 740W and accommodates a wide range of connected devices such as access points, VoIP phones, and IP cameras. The integrated Cisco Network Essentials software (1-year licensing included) brings automation, security, and simplified management across distributed environments.

Built for scalability and resilience, this switch supports stacking bandwidth up to 80 Gbps using Cisco’s StackWise-80 technology, achieving an aggregate switching capacity of up to 420 Gbps. With a forwarding rate of 252.97 Mpps and support for full Layer 2/3 routing protocols including OSPFv3, EIGRPv6, RIPng, VRRP, and PIM-SSM, it offers broad routing flexibility. Extensive feature support includes QoS, MACsec encryption, RSPAN, Jumbo Frame, and Energy Efficient Ethernet, optimizing both performance and operational costs.

Management capabilities are extensive, with support for SNMP, CLI, RESTCONF, and NETCONF. Built-in redundancy options such as hot-pluggable power supplies enhance uptime, while 2GB RAM and 4GB flash memory enable efficient operation and system responsiveness. Its compliance with global standards, TAA certification, and a Cisco-enhanced limited lifetime warranty make it a future-proof choice for secure, scalable network deployments.

Specifications

Primary Information
Network Device Type Switch
Model C9200L-48PXG-2Y-1E
Form Factor 1U
Connectivity Technology Wired
Data Transfer Rate 25 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED indicators
RAM / Total Installed Size 2 GB
Flash Memory / Installed Size 4 GB
Networking Compliant Standards 802.1w,802.1s,802.1Q,802.1p,802.1x
Power / Device Type Power Supply
Media Layer Supported Layer 2 and Layer 3
Power / Provided (W) 1 KW
Uplink Port 2x 1/10/25G fixed uplinks
Power / Voltage Required 100 to 240 VAC, 50 to 60 Hz
MTBF 337260 hours
Processor / Type None Processor

Interfaces / Ports
Interfaces 48-port PoE+;1/10/25G fixed uplinks

Service&Support
Service & Support Type Cisco Enhanced Limited Lifetime Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support Y
MAC Address Table Size 16000
Jumbo Frame Support 9198 bytes
Remote Management Protocol SNMP; Syslog; DHCP
Routing Protocol IPv4,IPv6,OSPFv3,EIGRPv6
Encryption Algorithm AES
Interfaces 48-port PoE+;1/10/25G fixed uplinks
PoE Power Consumption 740W

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 13.8 Inch
Height 1.73 Inch
Weight 12.6 lbs.

Special Feature
Min Storage Temperature -40 celsius
Max Storage Temperature 70 celsius
RoHS Y
COO MEXICO
TAA compliance Yes
Min Operating Temperature -5 celsius
