| Product Type | Managed Layer 3 Switch |
| Model | Cisco Catalyst C9200L-48PXG-4XE++ |
| Form Factor | Rack-mountable |
| Mounting Type | Rack-mountable |
| Power Requirements | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Internal Power Supply | Hot-plug |
| PoE Support | PoE+ |
| PoE Budget | 1440 W |
| RAM | 2 GB |
| Flash Memory | 4 GB |
| MTBF | 337,360 hours |
| Weight | 12.59 lbs |

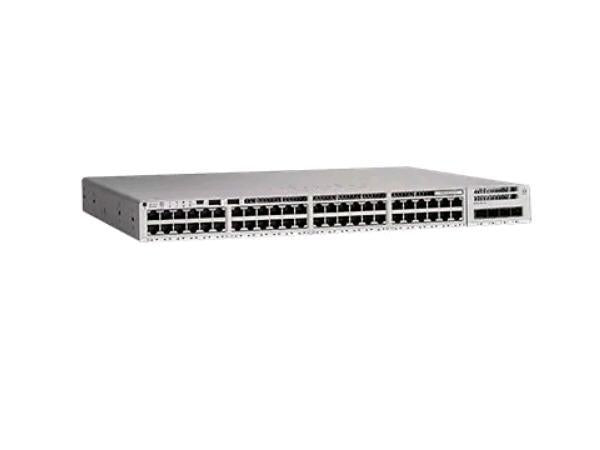

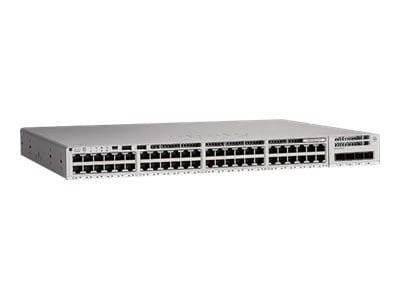

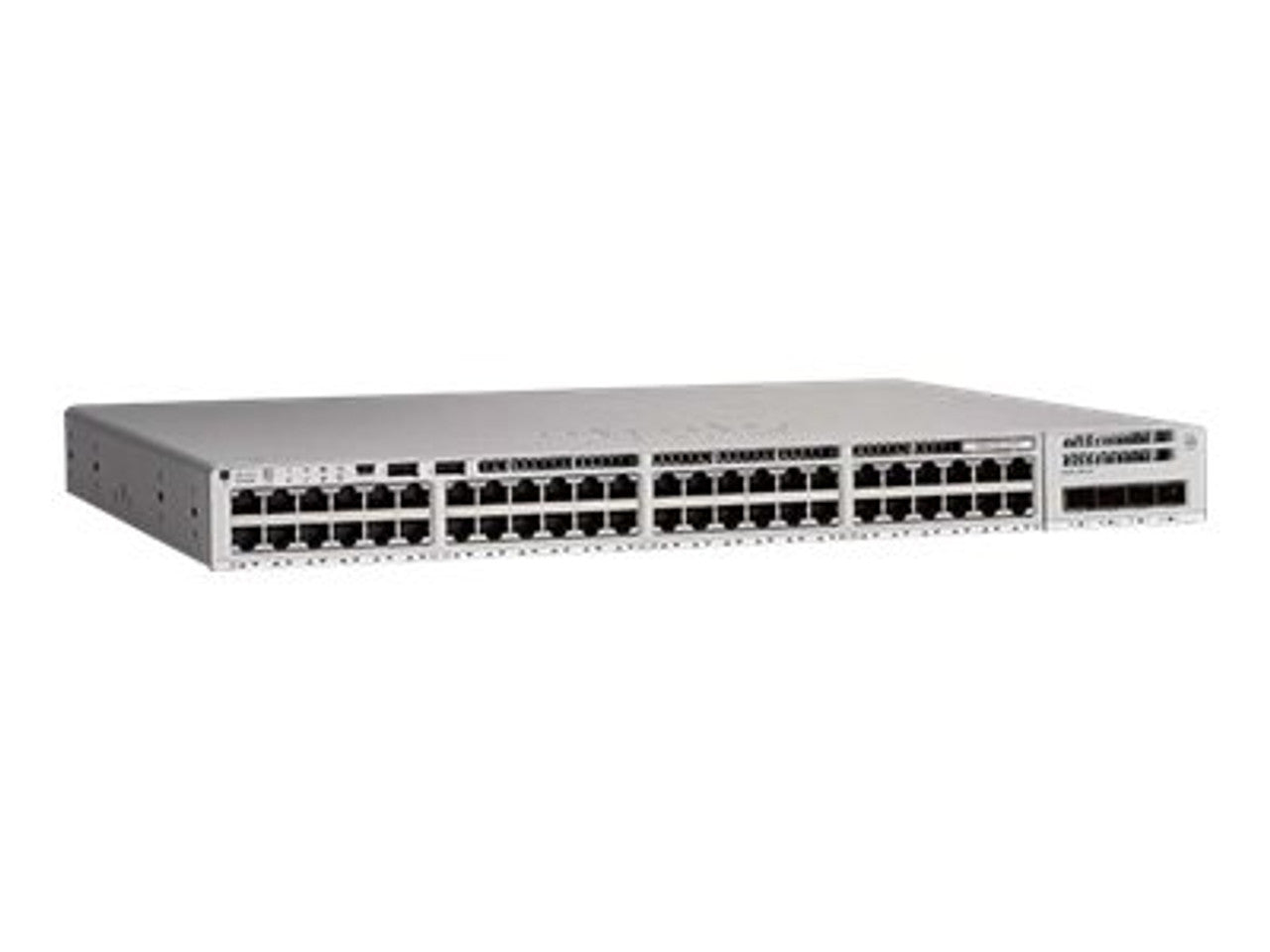

Cisco Catalyst C9200L-48PXG-4XE++ 48-Port TAA-Compliant Managed Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$8,028.13
Regular price
Sale price
$8,028.13
Unit price
per
MSRP: $11,774.58
Shipping calculated at checkout.
Couldn't load pickup availability
- 48-port managed Layer 3 switch: 12 x multi-Gigabit, 36 x Gigabit PoE+
- 4 x 10G SFP+ uplinks for high-speed connectivity
- 1440W Power over Ethernet Plus (PoE+) budget
- 80 Gbps stacking bandwidth with optional redundant power
- Advanced routing protocol support including OSPF, EIGRP, RIP, and BGP
- Remote management via SNMP (v1, 2c, 3), CLI, RESTCONF, and NETCONF
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers multi-Gigabit and 10G uplink capabilities for bandwidth-heavy enterprise applications.
- Equipped with robust 1440W PoE+ to power a wide array of IP devices directly through the switch.
- TAA-compliant design and advanced security features like MACsec make it ideal for government and regulated industries.
Product Overview
The Cisco Catalyst C9200L-48PXG-4XE++ is a TAA-compliant, managed 48-port Layer 3 switch offering enterprise-grade scale and speed. It features 12 multi-Gigabit ports (up to 10G), 36 PoE+ Gigabit ports, and 4 x 10G SFP+ uplinks for high-bandwidth environments. With a 1440W PoE+ power budget and stacking bandwidth of 80 Gbps, it's ideal for dense campus and data center deployments. Enhanced capabilities such as MACsec encryption, policy-based routing, and advanced QoS ensure performance and security. Remote management via SNMP, CLI, NETCONF, and RESTCONF streamlines administration. Designed with redundant power support and backed by a limited lifetime warranty, it ensures maximum uptime and long-term ROI.
Specifications
Product Overview
Cloud Management & Licensing
| Management Interfaces | SNMP 1/2c/3, RMON 1/2, CLI, NETCONF, RESTCONF |
| Features | Cisco StackWise, EEM, RSPAN, NetFlow, QoS, MACsec, CoPP, DSCP support, PXE, Energy Efficient Ethernet, SPAN, PVLAN support |
Physical & Environmental
| Dimensions (W x D x H) | 17.5 in x 13.8 in x 1.7 in |
| Minimum Operating Temperature | 23 °F |
| Maximum Operating Temperature | 113 °F |
| Operating Humidity Range | 5 - 90% (non-condensing) |
| Minimum Storage Temperature | -40 °F |
| Maximum Storage Temperature | 158 °F |
| Storage Humidity Range | 5 - 90% (non-condensing) |
Routing & Layer 3 Capabilities
| Routing Protocols | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng, MSTP, Policy-Based Routing |
| IPv4 Routes Supported | 11000 |
| IPv4 Routing Table Entries | 3000 |
| IPv6 Routing Table Entries | 1500 |
| Multicast Scale | 1000 |
| ACL Scale Entries | 1500 |
| Switched Virtual Interfaces (SVIs) | 512 |
| QoS Hardware Queues per Port | 8 |
| VLANs Supported | 1024 |
| FNF Entries | 16000 |
Interfaces
| Port Count | 48 Total Ports |
| Port Types | 12 x 100/1000/2.5G/5G/10GBase-T RJ-45, 36 x 1000Base-T RJ-45 PoE+, 4 x 10GBase-X SFP+ uplinks |
| Stacking Ports | 1 x Network Stack Device Port |
| Management Ports | 1 x RJ-45 (LAN), 1 x RJ-45 Console |
| Switching Capacity | 392 Gbps |
| Forwarding Rate | 291.66 Mpps |
| Stacking Bandwidth | 80 Gbps |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9198 bytes |
Advanced Security Features
| Encryption Algorithm | 128-bit AES |
| Policy-Based Routing | Supported |
| Authentication | 802.1x Authentication |
| Security Protocols | MACsec, CoPP, DHCP Snooping, DAI, IP Source Guard |
Compliance & Origin
| Compliant Standards | IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.1ab (LLDP), 802.3at, 802.3bz |
| Environmental Standards | RoHS |
| Electromagnetic Standards | EN 55022 Class A, CISPR 22 Class A, VCCI Class A, FCC Part 15 Class A |
| Country of Origin | Mexico |
| TAA Compliant | Yes |
Warranty
| Service & Support | Limited lifetime warranty with advance parts replacement (next business day) |
