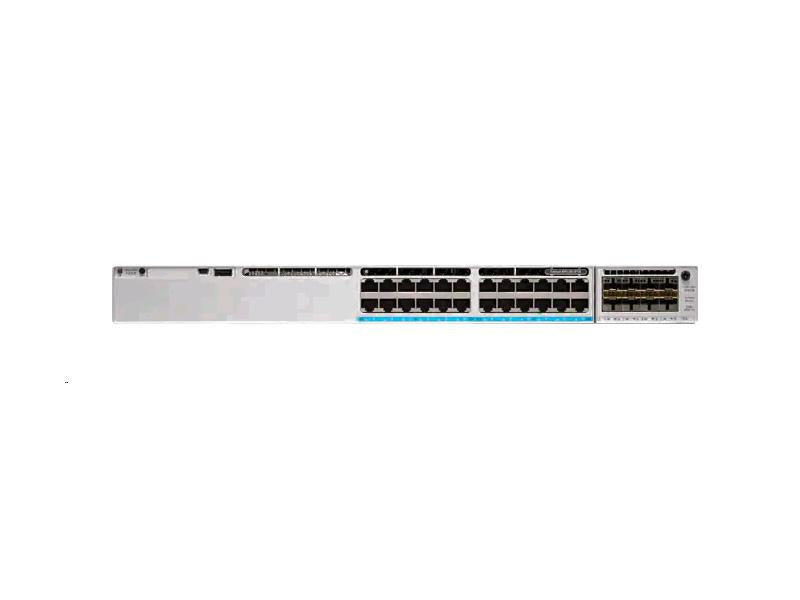

Cisco Catalyst C9300-24U-A 24-Port UPOE Network Switch

VENDOR: CISCO Mfg Part#: C9300-24U-A UPC#: 889728051668
  • The Cisco Catalyst C9300-24U-A is a 24-port Gigabit Ethernet switch delivering UPOE capabilities, modular uplinks, and advanced Layer 2/3 features. It includes 8GB of RAM and 16GB of flash storage, supporting secure protocols and efficient remote management. With industry standard compliance and enhanced lifetime support, it’s purpose-built for scalable, enterprise-grade performance.
1 1

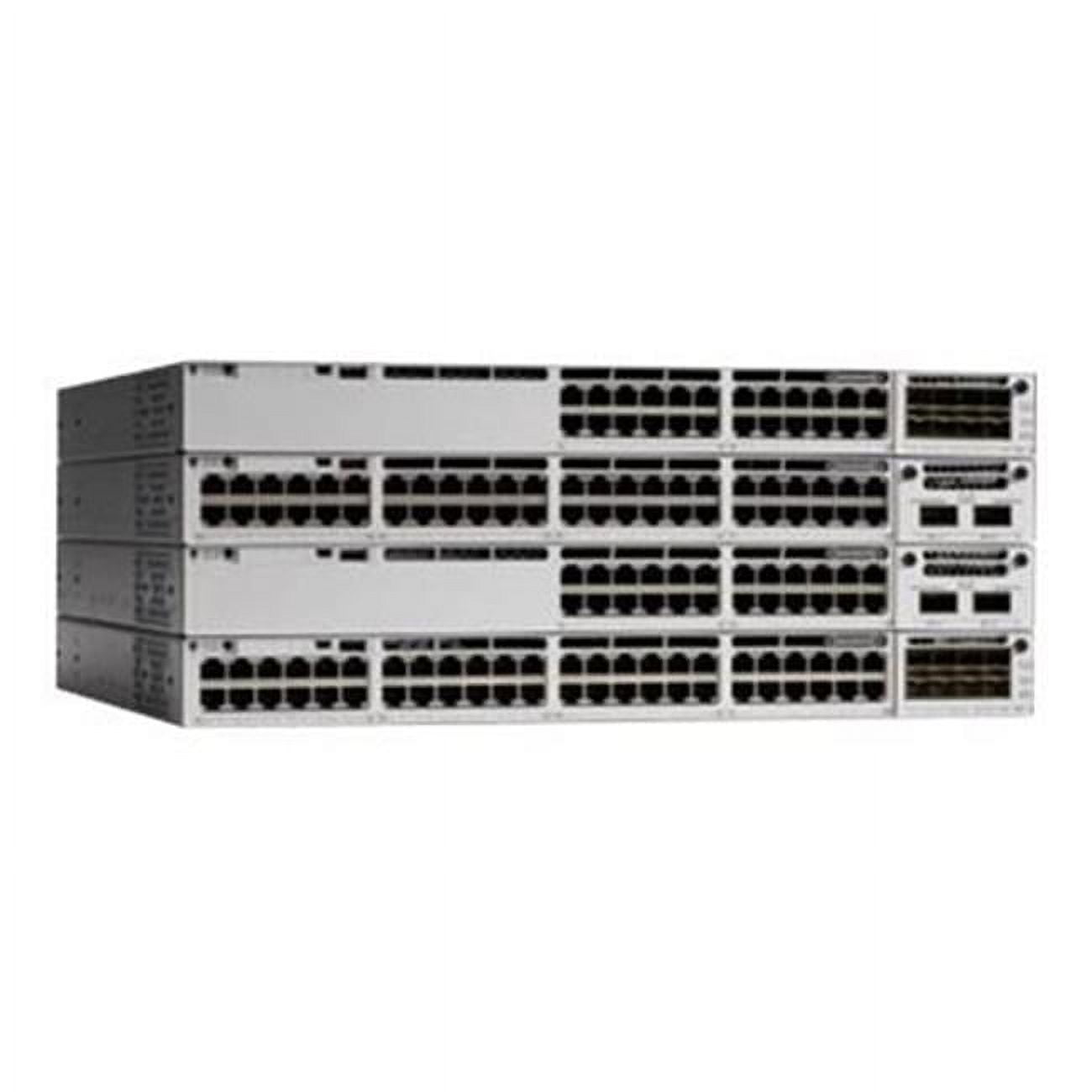

Photo is for illustration purposes only. Actual product may be different.
$5,686.06
$5,686.06
Sale Sold out
MSRP: $8,270.62
Shipping calculated at checkout.
  • 24-port Gigabit Ethernet with modular UPOE uplinks and up to 1440W PoE power
  • Supports Layer 2 and Layer 3 functionality including RIPv1, RIPv2, and RIPng
  • Advanced remote management via SNMP, RMON, and Syslog
  • Jumbo frame support up to 9198 bytes for enhanced throughput
  • Integrated 8GB RAM and 16GB flash memory for improved device performance
  • Compliance with IEEE standards and encryption with AES 256-bit for secure networking
View full details

Key Benefits

Eye-Insights
  • Delivers powerful UPOE switching with 1440W support—ideal for powering demanding network devices.
  • Incorporates enterprise-grade manageability and security, including SNMP, RMON, RIP, and AES-256 encryption.
  • Backed by Cisco's enhanced limited lifetime hardware warranty, ensuring long-term value and dependable performance.

Product Overview

The Cisco Catalyst C9300-24U-A 24-Port UPOE Switch is engineered for high-performance enterprise networking. Featuring 24 1G copper ports with modular uplinks and advanced UPOE capability, it supports power delivery up to 1440W. Aligning with IEEE standards, this managed Layer 2/3 switch delivers robust 1 Gbps throughput, enhanced with jumbo frame support and AES-256-bit encryption for secure data transmission.

With 8GB RAM and 16GB flash memory, it enables smooth operations via features like automated provisioning, programmable APIs, and seamless updates. Supporting SNMP, RMON, and Syslog, and compatible with RIPv1/v2 and RIPng, it’s versatile across architectures. Mountable in standard racks and built with a MTBF of over 238,000 hours, it also complies with RoHS and TAA regulations for global deployments. An enhanced limited lifetime warranty strengthens its ROI and reliability.

Specifications

Primary Information
Network Device Type Switch
Model C9300-24U-A
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED
RAM / Total Installed Size 8 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3u, IEEE 802.3z
Power / Device Type Power Supply
Media Layer Supported Layer 2, Layer 3
MTBF 238410 hours
Features Automated device provisioning; API-driven configuration; Granular visibility; Seamless software upgrades and patching

Interfaces / Ports
Interfaces 24-port 1G copper with modular uplinks, UPOE

Service&Support
Service & Support Type Enhanced Limited Lifetime hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support Yes
PoE Power Consumption Default: 830W; Upgrade: 1440W
MAC Address Table Size 32000
Jumbo Frame Support 9198 bytes
Remote Management Protocol Syslog; SNMP; RMON
Routing Protocol RIPv1, RIPv2, RIPng
Interfaces 24-port 1G copper with modular uplinks, UPOE
Encryption Algorithm AES (256-bit)

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 16.1 Inch
Height 1.73 Inch
Weight 7.54 Kg

Special Feature
Min Operating Temperature -5 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y
COO BRAZIL / CHINA / MEXICO / UNITED STATES
TAA compliance Yes
