| Brand Name | Cisco |
| Redundant Power Supply Supported | No |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| Total Number of Network Ports | 24 |
| Media Type Supported | Twisted Pair |
| Stack Port | Yes |
| Uplink Port | Yes |
| Modular | No |
| Ethernet Technology | Gigabit Ethernet |
| Environmental Certification | RoHS-5 |
| Environmentally Friendly | Yes |
| Manageable | Yes |
| Depth | 17.50" (444.50 mm) |
| Width | 17.50" (444.50 mm) |
| Height | 1.73" (43.94 mm) |
| Product Type | Ethernet Switch |
| Product Series | 9300 |
| Product Line | Catalyst |
| Network Technology | 10/100/1000Base-T |
| Product Name | Catalyst C9300-24UX Ethernet Switch |
| Product Model | C9300-24UX |
| Manufacturer | Cisco Systems, Inc |
| Form Factor | Rack-mountable |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Power Source | Power Supply |
| Marketing Information | Built for Security, IoT, Mobility, and Cloud The Cisco® Catalyst® 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise® virtual technology, providing flexible deployment with support for nonstop forwarding with stateful switchover (NSF/SSO), for the most resilient architecture in a stackable sub-50-ms solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, open Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence. The foundation of Software-Defined Access Advanced persistent security threats. The exponential growth o |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Part Number | C9300-24UX-A |

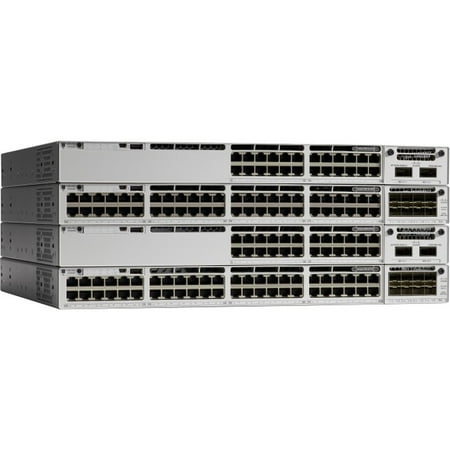

Cisco Catalyst C9300-24UX 24-Port MGig UPOE Network Switch
Request a quote
Cisco Catalyst C9300-24UX 24-Port MGig UPOE Network Switch
Couldn't load pickup availability
- 24 Multi‑Gigabit Ethernet ports (100M/1G/2.5G/5G/10GBase‑T) with UPOE support
- Up to 480 Gbps stacking bandwidth with dedicated stack ports
- Advanced security: MACsec encryption, TrustSec, ACLs, DHCP snooping
- Managed through Cisco IOS XE and cloud-enabled via Cisco DNA Center
- Redundant power supply support and power consumption up to 275W
- Rack-mountable form factor with Network Advantage license included
Key Benefits
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers flexible MGig and UPOE support for powering and connecting next-gen devices through a single cable
- Fully integrates with Cisco DNA Center for streamlined automation, assurance, and centralized cloud monitoring
- Advanced Layer 2/3 security features including MACsec and TrustSec meet the needs of enterprise-grade secure deployments
Product Overview
The Cisco Catalyst C9300-24UX-A Ethernet Switch is designed for advanced enterprise network deployments requiring high throughput and secure, intelligent switching. Featuring 24 Multi-Gigabit Ethernet (MGig) ports supporting 100M/1G/2.5G/5G/10GBase-T speeds with Universal Power over Ethernet (UPOE), it delivers power and data to connected devices like access points, IP phones, and IoT endpoints through a single cable. Its maximum power consumption is 275W, with redundant power supply capabilities enhancing uptime and operational confidence.
The unit supports Cisco DNA Center for automation and assurance, enabling cloud-managed flexibility, as well as advanced Layer 2/3 security protocols including Access Control Lists, DHCP Snooping, MACsec 128-bit Encryption, and TrustSec. With optional stacking via dedicated stack ports and a 480 Gbps stacking bandwidth, deployment can scale seamlessly across large networks. The switch is rack-mountable, operates within a 32°F to 113°F range, includes a lifetime limited warranty, and adheres to major global compliance standards such as UL, CE, FCC, and RoHS-5.
Customers benefit from intelligent management through Cisco IOS XE and Network Advantage licensing, providing robust features for visibility, manageability, and automated operations. It’s an optimal solution for organizations looking to modernize their campus infrastructures with secure, efficient, and future-ready networking.
Specifications
Primary Information
UNSPSC Code
| UNSPSC Code | 43222612 |
Special Feature
| COO | BRAZIL / CHINA / MEXICO / UNITED STATES |
| TAA compliance | Yes |
