Cisco Catalyst C9300-24UX 24-Port mGig UPOE Switch, K12-Optimized

VENDOR: CISCO Mfg Part#: C9300-24UX-EDU UPC#: 889728116992
1 3

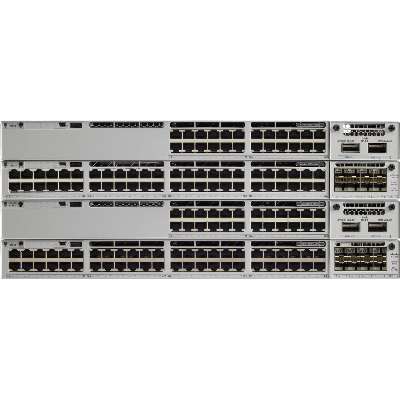

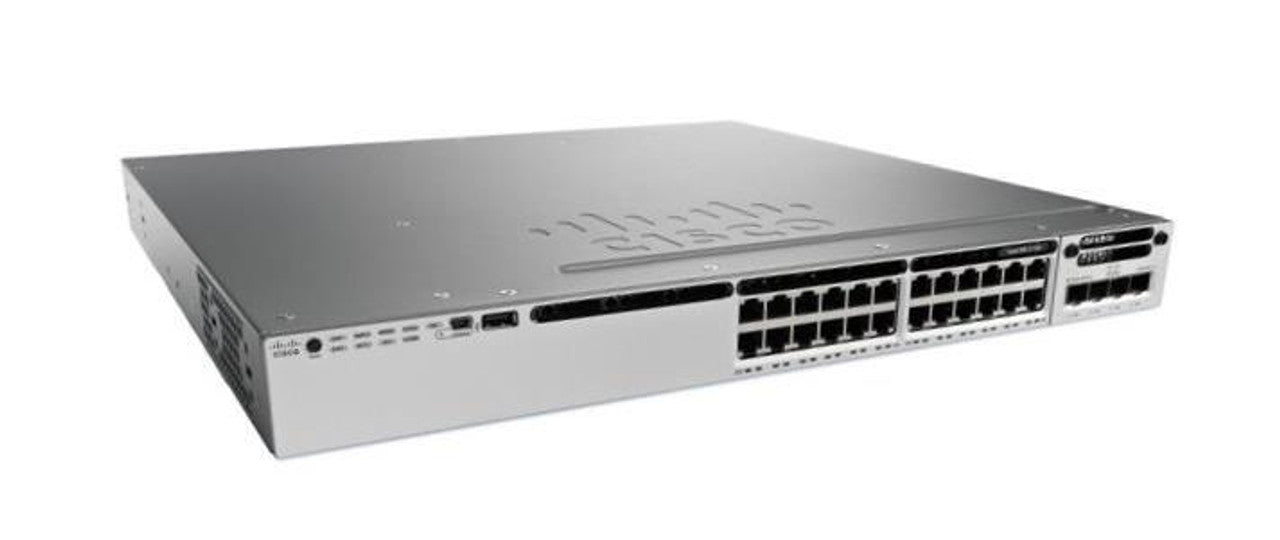

Photo is for illustration purposes only. Actual product may be different.
$10,465.17
$10,465.17
Sale Sold out
MSRP: $15,348.91
Shipping calculated at checkout.
  • 24 x 10/100/1000Base-T multi-gigabit Ethernet ports with UPOE support
  • Fully manageable with Cisco IOS XE OS for advanced programmability
  • Built-in support for Cisco StackPower and resilient architecture features
  • Based on Cisco UADP 2.0 architecture for high throughput and future growth
  • Compact 1U design with dimensions: 1.73" x 17.5" x 18.5" (HxWxD)
  • TAA compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for educational environments with K12 designation and full UPOE power delivery
  • Engineered for scalability and resiliency with stackable architecture and redundant power support
  • Cost-effective ownership backed by Cisco’s lifetime warranty and TAA compliance

Product Overview

The Cisco Catalyst C9300-24UX K12 is a 24-port multi-gigabit Ethernet switch from Cisco’s leading 9300 Series, tailored for high-performance, scalable networking in education and enterprise environments. Designed with UPOE capabilities and full manageability, it supports powerful endpoint integration including PoE+ devices. With its stackable design and support for redundant power, the switch promotes resilient and secure network architectures. Built on Cisco’s trusted UADP 2.0 architecture, this model ensures future-ready extensibility and policy-based security. TAA compliance and lifetime warranty position it as a cost-effective and regulation-compliant solution for mission-critical applications.

Specifications

Product Overview
Product Type Ethernet Switch
Series Cisco Catalyst 9300
Model C9300-24UX-EDU
Form Factor Rack-mountable
Power Source Internal Power Supply
Redundant Power Supply Supported Yes
Power Consumption (Typical) 143.8W
Power Consumption (Maximum) 800W with UPOE
Weight 8.25 lbs

Wireless Features
Wireless Support No (Wired Switch)

Cloud Management & Licensing
Management Type Cisco IOS XE, CLI, Web UI, SNMP, RMON
Cloud Management Cisco DNA Center (optional)
License Requirement Cisco DNA Subscription License (K12 optimized)
Software Defined Access (SD-Access) Supported
StackWise-480 Technology Supported

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL/CSA 60950-1, CB, CE Marking, FCC Part 15 Class A, ICES-003 Class A
Warranty Limited Lifetime Warranty

Interfaces
Total Number of Ports 24
Port Type Multi-Gigabit Ethernet (1G/2.5G/5G/10G)
Port Details 24 x 100M/1G/2.5G/5G/10G Ethernet UPOE
Expansion Slots 1 x Network Module Slot for Uplink Modules
Uplink Module Options 4 x 1G, 4 x 10G, 8 x 10G, 2 x 40G
Media Type Supported Twisted Pair
Auto Negotiation Yes
Full Duplex Support Yes
Data Transfer Rate Up to 10 Gbps per port
Stacking Bandwidth 480 Gbps
StackWise Virtual Support Yes

Physical & Environmental
Height 1.73 in (44 mm)
Width 17.5 in (445 mm)
Depth 18.5 in (470 mm)
Mount Type Rack Mount 1U
Operating Temperature Range 32°F to 113°F (0°C to 45°C)
Storage Temperature Range -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 90% (noncondensing)
Storage Humidity 5% to 95% (noncondensing)
Noise Level Up to 59 dB
Cooling Fan-based Active Cooling

Advanced Security Features
MACsec 256-bit Encryption Supported
TrustSec Supported
802.1X Authentication Supported
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Cisco Talos Threat Intelligence Supported via DNA Center
