| Data Link Protocol | Gigabit Ethernet |
| Features | Flexible and dense uplink offerings; Mixed Stacking with Backward Compatibility ; Stack Power with Backward Compatibility; Secure Tunnel connectivity; Enhanced Application Hosting |
| Network Device Type | Switch |
| Model | C9300L-24T-4G-A |
| Form Factor | 1RU |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | LED indicators |
| RAM / Total Installed Size | 8 GB |
| Flash Memory / Installed Size | 16 GB |
| Networking Compliant Standards | IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,802.1p,IEEE 802.3bt |
| Media Layer Supported | Layer 2 and Layer 3 |
| Power / Device Type | Power Supply |
| Uplink Port | 4x 1G fixed uplinks |
| Power / Provided (W) | 350 Watt |
| Power / Voltage Required | 100 to 240 VAC |
| MTBF | 395800 hours |

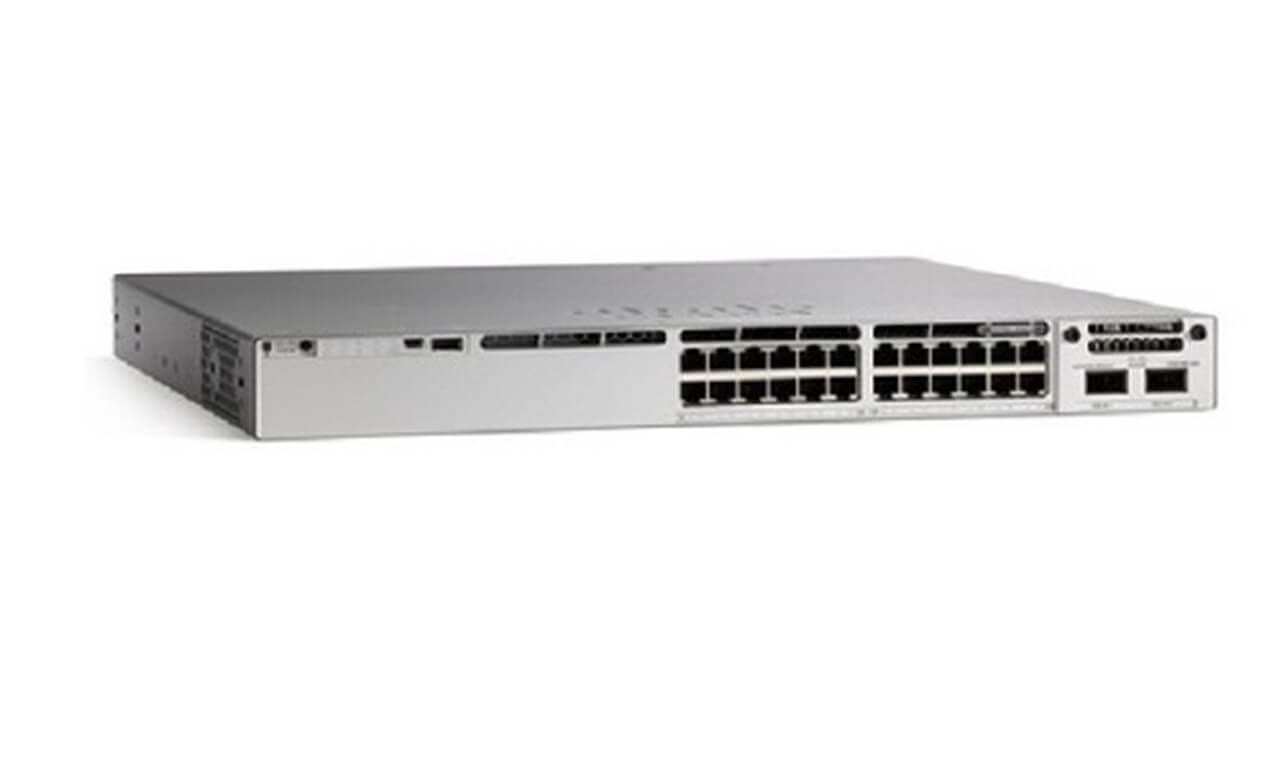

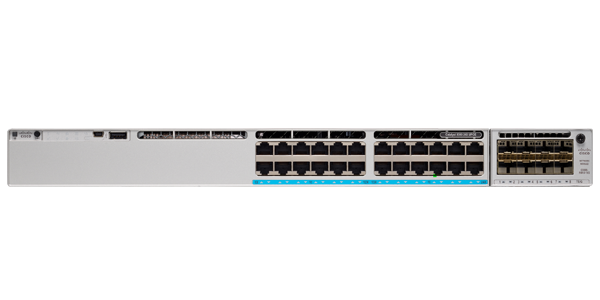

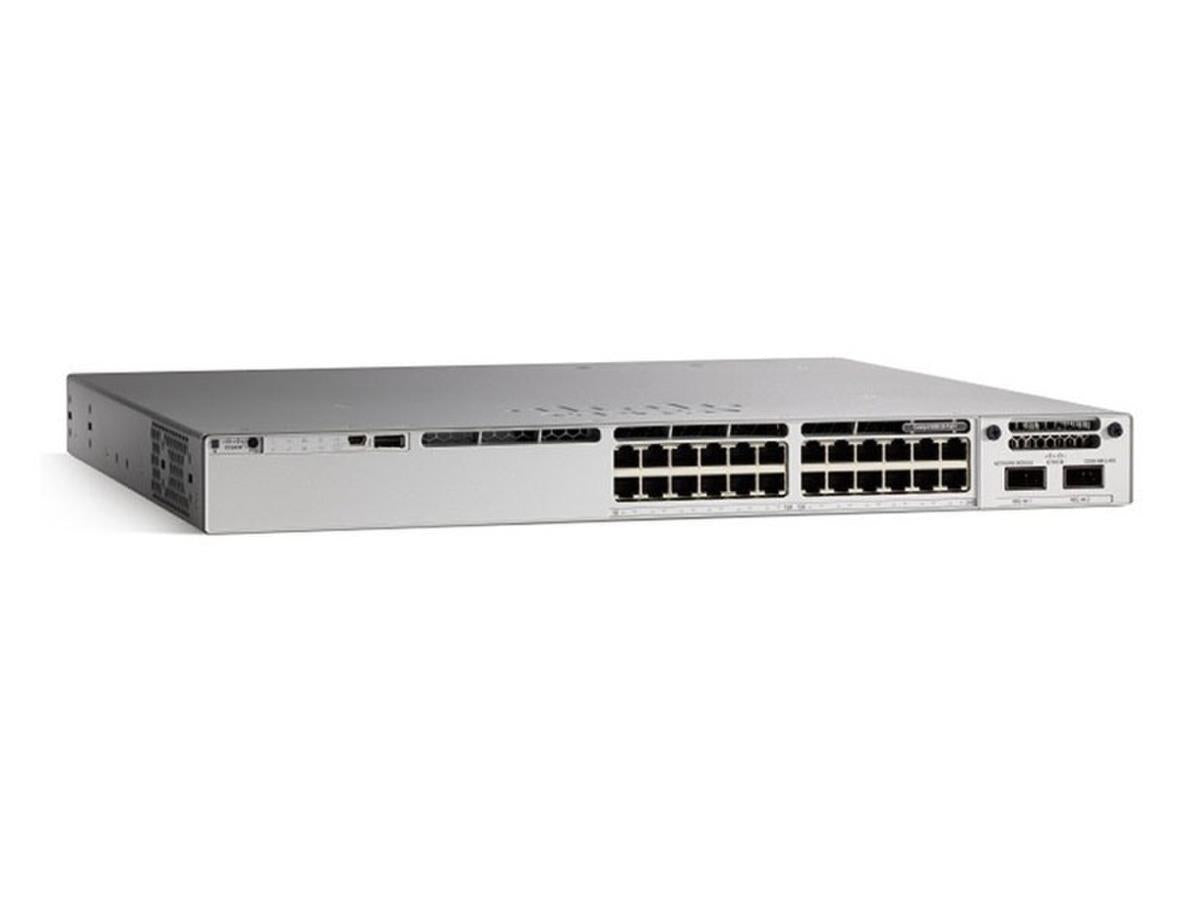

Cisco Catalyst C9300L-24T-4G-A 24-Port Gigabit Managed Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$4,516.93
Regular price
Sale price
$4,516.93
Unit price
per
MSRP: $6,570.09
Shipping calculated at checkout.
Couldn't load pickup availability
- 24 x 10/100/1000Base-T ports + 4 x 1G SFP uplinks for flexible connectivity
- Layer 3 managed, stackable design with StackWise-320 technology and 320 Gbps stacking bandwidth
- Switching capacity up to 376 Gbps with stacking; forwarding rate up to 279.76 Mpps
- Advanced routing protocol support including BGP-4, OSPFv3, MPLS, EIGRP, and more
- Security-focused features include MACsec support, secure boot, and Cisco Trust Anchor module
- 8 GB RAM, 16 GB flash memory, and 32000 MAC address entries for scalable performance
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for enterprise environments needing high-performance switching with 24 Gigabit copper ports and 4 fiber uplinks
- Future-proofed with advanced Layer 3 routing, security features, and large-scale VLAN and SVI support
- Enhances operational uptime and longevity with 350W hot-plug PSU, optional redundancy, and 395,800-hour MTBF
Product Overview
The Cisco Catalyst C9300L-24T-4G-A is a high-performance 24-port Gigabit Layer 3 managed switch ideal for enterprise networking. It offers 24 x 10/100/1000Base-T ports plus 4 x SFP Gigabit uplinks, delivering a switching capacity of 56 Gbps and stacking bandwidth of 320 Gbps through StackWise-320 technology.
Equipped with 8 GB RAM, 16 GB flash memory, and support for extensive routing protocols, it ensures high flexibility for dynamic routing and policy-based configurations. Advanced features include MACsec encryption, secure boot, ACL, and QoS to meet modern compliance and operational needs.
The switch has a 350W internal power supply with optional redundancy and an impressive MTBF of 395,800 hours. It supports up to 4094 VLANs and 1000 SVIs, making it suitable for highly segmented environments. The included limited lifetime warranty and wide compliance list underscore its reliability for enterprise deployments.
Specifications
Primary Information
UNSPSC Code
| UNSPSC Code | 43222612 |
Interfaces / Ports
| Interfaces | 24-port 1G copper, with fixed 4x1G SFP uplinks |
| SFP Ports | 4 |
Service&Support
| Service & Support Type | Enhanced limited lifetime hardware warranty |
Special Feature
| COO | BRAZIL / CHINA / MEXICO / VIET NAM |
| TAA compliance | Yes |
| Min Operating Temperature | -5 degree celsius |
| Min Storage Temperature | -40 degree celsius |
| Max Storage Temperature | 70 degree celsius |
| RoHS | Y |
Network
| Power Over Ethernet (PoE) Support | NONE |
| PoE Power Consumption | NONE |
| MAC Address Table Size | 32000 |
| Jumbo Frame Support | 9198 bytes |
| Remote Management Protocol | DHCP; Syslog; IPv4; IPv6; SNMP |
| Routing Protocol | RIPv1, RIPv2,OSPFv3 |
| Encryption Algorithm | AES |
| SFP Ports | 4 |
| Interfaces | 24-port 1G copper, with fixed 4x1G SFP uplinks |
Dimensions&Miscellaneous
| Width | 17.5 Inch |
| Depth | 16.1 Inch |
| Height | 1.73 Inch |
| Weight | 6.78 Kg |
