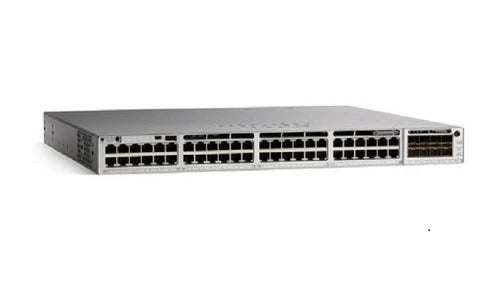

Cisco Catalyst C9300L-48UXG-4X-A 48-Port UPOE Switch with 4x10G Uplink

VENDOR: CISCO Mfg Part#: C9300L-48UXG-4X-A UPC#: 889728174121
  • CATALYST 9300L 48P, 12MGIG, NETWORK ADVA
1 1
Photo is for illustration purposes only. Actual product may be different.
$10,991.73
$10,991.73
Sale Sold out
MSRP: $16,121.21
Shipping calculated at checkout.
  • 48 x 10/100/1000 UPOE ports, including 12 that support Multi-Gigabit speeds up to 10G
  • 4 x 10 Gigabit SFP+ uplink ports for high-performance connectivity
  • Switching capacity of up to 712 Gbps and forwarding rate of up to 529.76 Mpps with stacking
  • Support for advanced Layer 3 routing protocols including OSPF, EIGRP, and RIPng
  • Integrated Cisco StackWise-320 technology for enhanced scalability and redundancy
  • PoE budget of 675W and MACsec encryption for secure high-density deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Offers high-density Multi-Gigabit UPOE switching ideal for powering next-gen access points and devices
  • Enhanced scalability and reliability through StackWise-320 and optional power redundancy
  • Enterprise-grade security and network control with support for Layer 3 routing, MACsec encryption, and policy-based routing

Product Overview

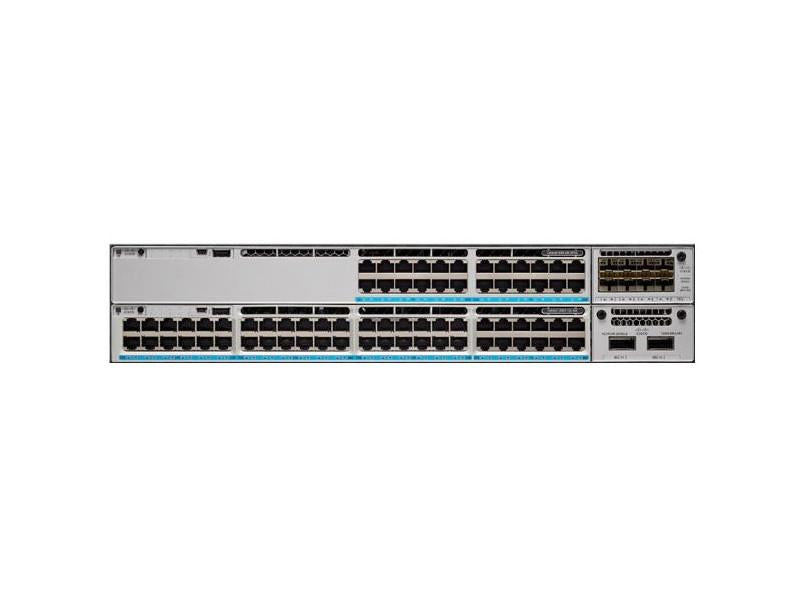

The Cisco Catalyst C9300L-48UXG-4X-A is a next-generation Layer 3 managed switch with 48 UPOE ports, including 12 Multi-Gigabit interfaces up to 10G and 4 SFP+ 10G uplinks. Operating on Cisco's Network Advantage tier, it supports comprehensive IPv4/IPv6 routing protocols, such as OSPF, EIGRP, and RIPng. Designed for high-availability deployments, the switch supports StackWise-320 technology, offers 675W of PoE power, and provides excellent forwarding rates of up to 529.76 Mpps with stacking. Built-in advanced features like MACsec encryption, secure boot, and Energy Efficient Ethernet enhance both security and power efficiency. Compliance with industry standards ensures broad interoperability, while its 273,820-hour MTBF underscores long-term dependability.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Form Factor Rack-mountable
Weight 16.87 lbs
Power Requirements AC 120/230 V (50 - 60 Hz)
Power Device Internal power supply - hot-plug
Power Redundancy Optional
Power Provided 1100 Watt
PoE Support UPOE
PoE Budget 675 W
Installed Power Supplies 1
Maximum Supported Power Supplies 2
Switching Capacity 392 Gbps
Switching Capacity With Stacking 712 Gbps
Forwarding Rate 291.66 Mpps
Forwarding Rate With Stacking 529.76 Mpps
MTBF 273,820 hours

Wireless Features
Wi-Fi Certification Wi-Fi CERTIFIED 6

Compliance & Origin
Country of Origin CHINA / MEXICO / MEXICO
TAA Compliance Yes
Certifications RoHS, UL 60950-1, EN 60950-1, IEC 60950-1, FCC Part 15 Class A, VCCI Class A, CISPR 22 Class A, CISPR 32 Class A, EN 55022 Class A, EN 55032 Class A, etc.

Advanced Security Features
Encryption Algorithm Support 128-bit AES, 256-bit AES
MACsec Hardware Acceleration Supported
Secure Boot Supported
802.1X Port Authentication Supported
Cisco Trust Anchor Module Supported
Access Control Lists (ACLs) 5120 entries
Policy-Based Routing (PBR) Supported
Private VLAN (PVLAN) Support Supported
Control Plane Policing (CoPP) Supported

Interfaces
Total Ports 48 x 10/100/1000 (UPOE) + 4 x 10 Gigabit SFP+ (uplink)
Multi-Gigabit Ports 12 x 1/2.5/5/10GBase-T RJ‑45
Standard Gigabit Ports 36 x 1000Base‑T RJ‑45
Uplink Ports 4 x 10GBase-X SFP+
Stacking Port 1 x network stack device
Management Port 1 x RJ‑45 (LAN)
Console Port 1 x RJ‑45
USB Port 1 x USB 2.0
MAC Address Table Size 32,000 entries
Jumbo Frame Support 9198 bytes
Status Indicators Status

Physical & Environmental
Width 17.5 in
Height 1.7 in
Depth 19.2 in
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 - 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 - 90% (non-condensing)

Cloud Management & Licensing
Remote Management Protocols SNMP (v1, v2c, v3), RMON (1 & 2), CLI, NETCONF, RESTCONF, gRPC, YANG
Stacking Technology Cisco StackWise-320
Cisco Software Tier Network Advantage
Zero Touch Provisioning (ZTP) Supported

Routing & Performance Features
IPv4 Route Capacity 32,000 routes
IPv6 Route Capacity 16,000 routes
Multicast Routing Entries 8,000
VLANs Supported 4094
QoS Entries 5120
Supported Routing Protocols OSPFv2/v3, EIGRP, RIPng, VRRP, PIM-SM/SSM, MSTP, Policy-based Routing
Switched Virtual Interfaces (SVIs) 1000
Packet Buffer Size 16 MB
