Cisco Catalyst C9500-16X 16-Port 10G Switch, K12

VENDOR: CISCO Mfg Part#: C9500-16X-EDU UPC#: 889728135719
  • Catalyst 9500 16-port 10G, K12
1 1

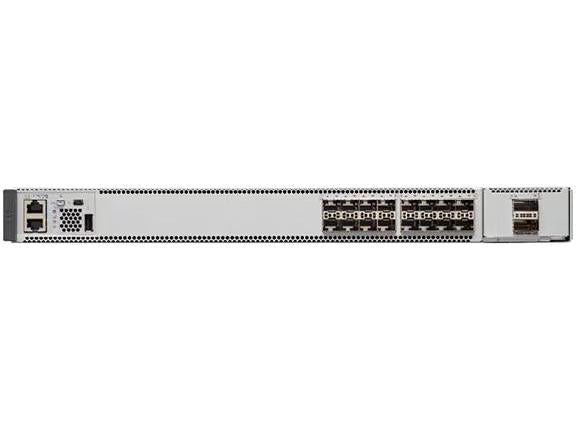

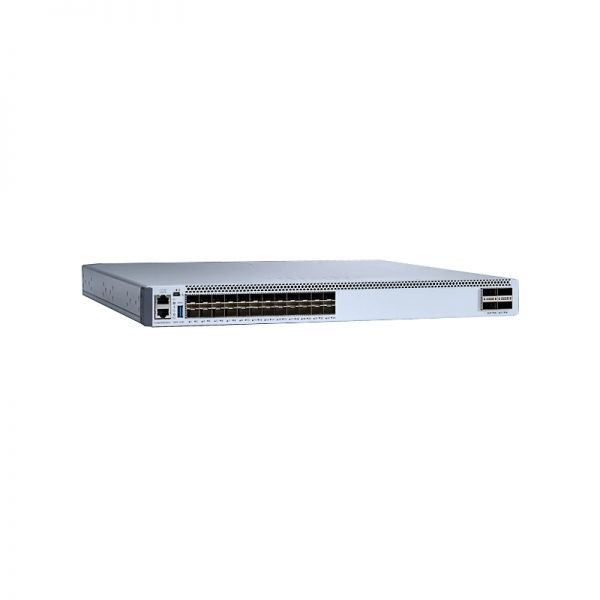

Photo is for illustration purposes only. Actual product may be different.
$12,830.41
$12,830.41
Sale Sold out
MSRP: $18,817.93
Shipping calculated at checkout.
  • 16-port 10G data throughput in a 1RU form factor
  • Supports Layer 2 and Layer 3 with routing protocols including RIPv2, RIPng, and OSPFv2
  • Integrated MACsec encryption for data security
  • 16GB RAM and 16GB flash memory for high-performance configurations
  • Interfaces include 1/10G Ethernet, RJ45, and USB-mini Type B
  • MTBF rated at 315,790 hours with an operating temperature range of 0–40°C

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for modern enterprise and educational networks requiring high-bandwidth aggregation features
  • Enhanced security and reliability with MACsec encryption and industry-standard protocol support
  • Long-term ROI with durable hardware components, wide temperature tolerance, and lifetime hardware warranty

Product Overview

The Cisco Catalyst C9500-16X is a high-performance, 16-port 10G switch optimized for enterprise and educational networks. It supports Layer 2/3 protocols including RIPv2, RIPng, and OSPFv2, with MACsec encryption securing your data path. Equipped with 16GB RAM and 16GB flash memory, it handles demanding network loads. With 1/10G Gigabit Ethernet interfaces, management via VLAN, IPv4, and IPv6, and IEEE compliance, it fits seamlessly into modern infrastructures. A durable 1RU design and MTBF of over 315,000 hours ensure reliable long-term service. Includes an Enhanced Limited Lifetime Hardware Warranty.

Specifications

Product Overview
Product Type Managed Switch
Model C9500-16X
Form Factor 1RU
Connectivity Technology Wired
Media Layer Supported Layer 2, Layer 3
RAM (Installed) 16 GB
Flash Memory 16 GB
MAC Address Table Size Up to 64000
Power Device Type Internal Power Supply
Voltage Required 90 to 264 VAC
MTBF 315790 hours
Weight 23.6 lbs.

Wireless Features

Compliance & Origin
Country of Origin UNITED STATES
TAA Compliance Yes
Certifications UL/CSA 60950-1, EN 60950-1, IEC 60950-1, EN 60825-1, EN 60825-2, FCC Part 15 Class A, VCCI Class A
Networking Compliant Standards IEEE 802.1s, 802.1w, 802.1x, 802.3, 802.3ad, 802.3ae

Advanced Security Features
Encryption Algorithm MACsec
Access Control 802.1x port-based authentication
Secure Boot Yes
Authenticated Images Yes

Warranty
Service & Support Enhanced Limited Lifetime Hardware Warranty

Interfaces
Total Ports 22
10 Gigabit Ethernet Ports 16
1 Gigabit Ethernet Ports 2
Management Ports 1 x USB mini-B console, 1 x RJ-45 console, 1 x USB Type-A
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Jumbo Frame Support 9198 bytes

Physical & Environmental
Width 17.5 Inch
Depth 21.52 Inch
Height 1.73 Inch
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -20 Celsius
Max Storage Temperature 65 Celsius
Relative Humidity (Operating) 5% to 90% (non-condensing)
Relative Humidity (Storage) 5% to 95% (non-condensing)

Cloud Management & Licensing
Remote Management Protocols VLAN, IPv4, IPv6
Management Options Cisco DNA Center, Web UI, CLI, SNMP
Included Licensing None (Cisco DNA subscriptions sold separately)

Routing & Switching Features
Routing Protocols RIPv2, RIPng, OSPFv2
IPv6 Support Yes
Stacking Support Virtual Switching System (VSS)
Forwarding Rate 480 Mpps
Switching Capacity 960 Gbps
