Cisco Catalyst C9500-24Y4C 24-Port 1/10/25G Managed Switch

VENDOR: CISCO Mfg Part#: C9500-24Y4C-EDU

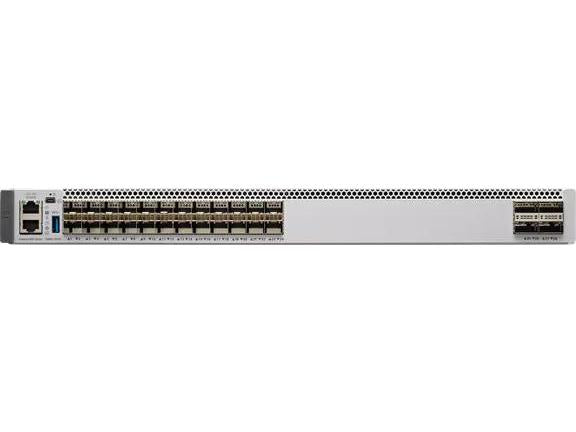

  • The Cisco Catalyst C9500-24Y4C is a high-performance 1RU wired switch featuring 24 x 1/10/25G ports and 4 x 40/100G uplinks. Designed for enterprise core and aggregation layers, it delivers up to 100 Gbps throughput, 16 GB RAM, and MACsec encryption. Offering advanced Layer 2/3 support, jumbo frames (9216 bytes), and an Enhanced Limited Lifetime Hardware Warranty, it's ideal for scalable, secure network infrastructure.
1 1

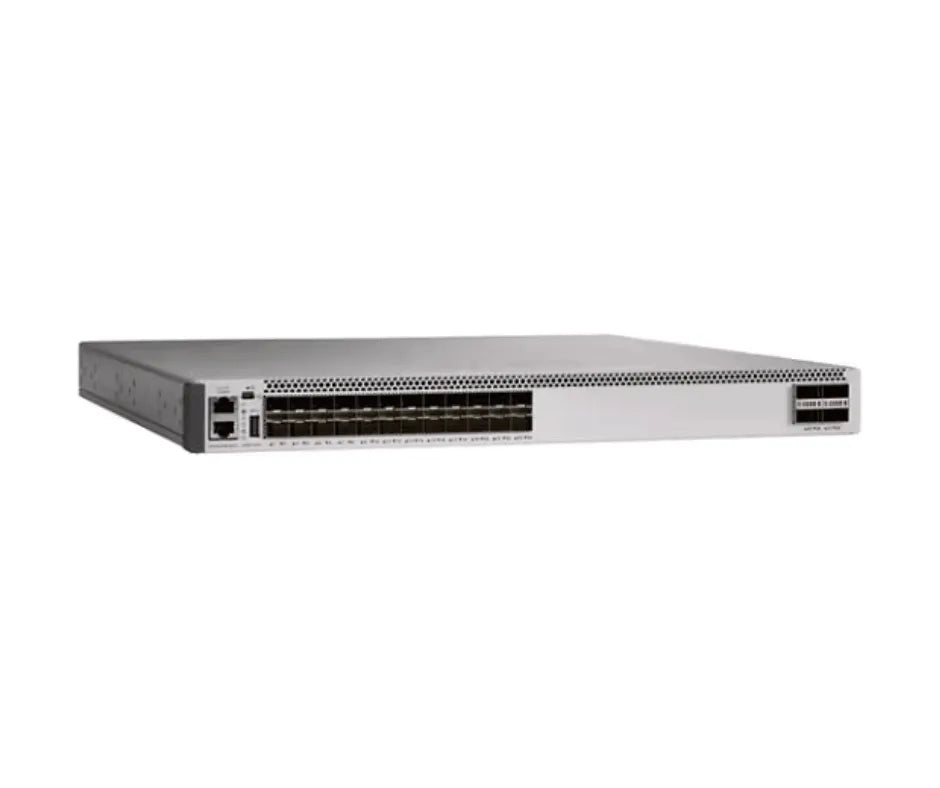

Photo is for illustration purposes only. Actual product may be different.
$19,439.33
$19,439.33
Sale Sold out
MSRP: $28,275.39
Shipping calculated at checkout.
  • 24 x 1/10/25G Ethernet ports and 4 x 40/100G uplinks
  • 100 Gbps wired data transfer rate
  • 16 GB RAM and 16 GB flash memory
  • MAC address table size up to 82,000 entries
  • MACsec encryption and 802.1x security standard compliance
  • Jumbo frame support up to 9216 bytes
View full details

Key Benefits

Eye-Insights
  • Designed for enterprise aggregation with high-density 1/10/25G access and 40/100G uplinks
  • Includes advanced routing and management protocols for versatile Layer 2/3 deployments
  • Enhanced Limited Lifetime Hardware Warranty ensures lasting performance and investment protection

Product Overview

The Cisco Catalyst C9500-24Y4C is a next-generation high-density switch engineered for enterprise campus core and aggregation layers. Built with a 1RU form factor, this wired managed switch provides 24 ports supporting 1/10/25 Gigabit Ethernet and four uplinks at 40/100G. Backed by 100 Gbps data transfer rates and powerful Layer 2 and Layer 3 support, it includes protocol flexibility with multiple routing protocols and VLANs across both IPv4 and IPv6.

The switch includes 16 GB RAM, 16 GB flash memory, and supports a MAC address table size of up to 82,000. With MACsec encryption, 802.1x compliance, and support for jumbo frames, it ensures robust security and performance efficiency. Remote management tools, versatile interface options, and broad power and temperature tolerances make the C9500-24Y4C reliable and adaptable in demanding environments. With an MTBF of 336,780 hours, it delivers strong long-term value for performance-sensitive networks.

Specifications

Primary Information
Network Device Type Switch
Model C9500-24Y4C
Connectivity Technology Wired
Data Transfer Rate 100 Gbps
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 16 GB
Flash Memory / Installed Size 16 GB
Networking Compliant Standards 802.1s, 802.1w, 802.1x
Power / Device Type Power Supply
Media Layer Supported Layer 2, Layer 3
Uplink Port 4
MTBF 336780 hours
Power / Voltage Required 90 to 264 VAC
Form Factor 1RU
Networking / Ports Qty 32

Interfaces / Ports
Interfaces 1/10/25G Gigabit Ethernet, 40/100G Uplink, RJ45, USB-mini type B

Service&Support
Service & Support Type Enhanced Limited Lifetime Hardware Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size Up to 82000
Jumbo Frame Support 9216 bytes
Remote Management Protocol IPv4; VLAN; IPv6
Routing Protocol RIPv2, RIPng, OSPFv2
Interfaces 1/10/25G Gigabit Ethernet, 40/100G Uplink, RJ45, USB-mini type B
Encryption Algorithm MACsec

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 18.0 Inch
Height 1.73 Inch

Special Feature
Min Operating Temperature 0 Celsius
Min Storage Temperature -20 Celsius
Max Storage Temperature 65 Celsius
COO MEXICO
TAA compliance Yes
Max Operating Temperature 40 Celsius
