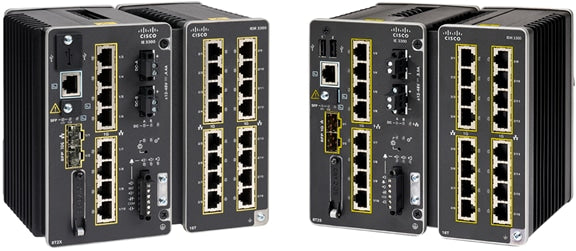

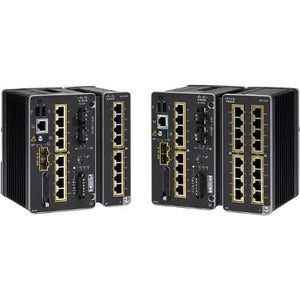

Cisco Catalyst IE3300 8-Port Modular Switch, TAA, 2 SFP, NE

VENDOR: CISCO Mfg Part#: IE-3300-8T2S-E++

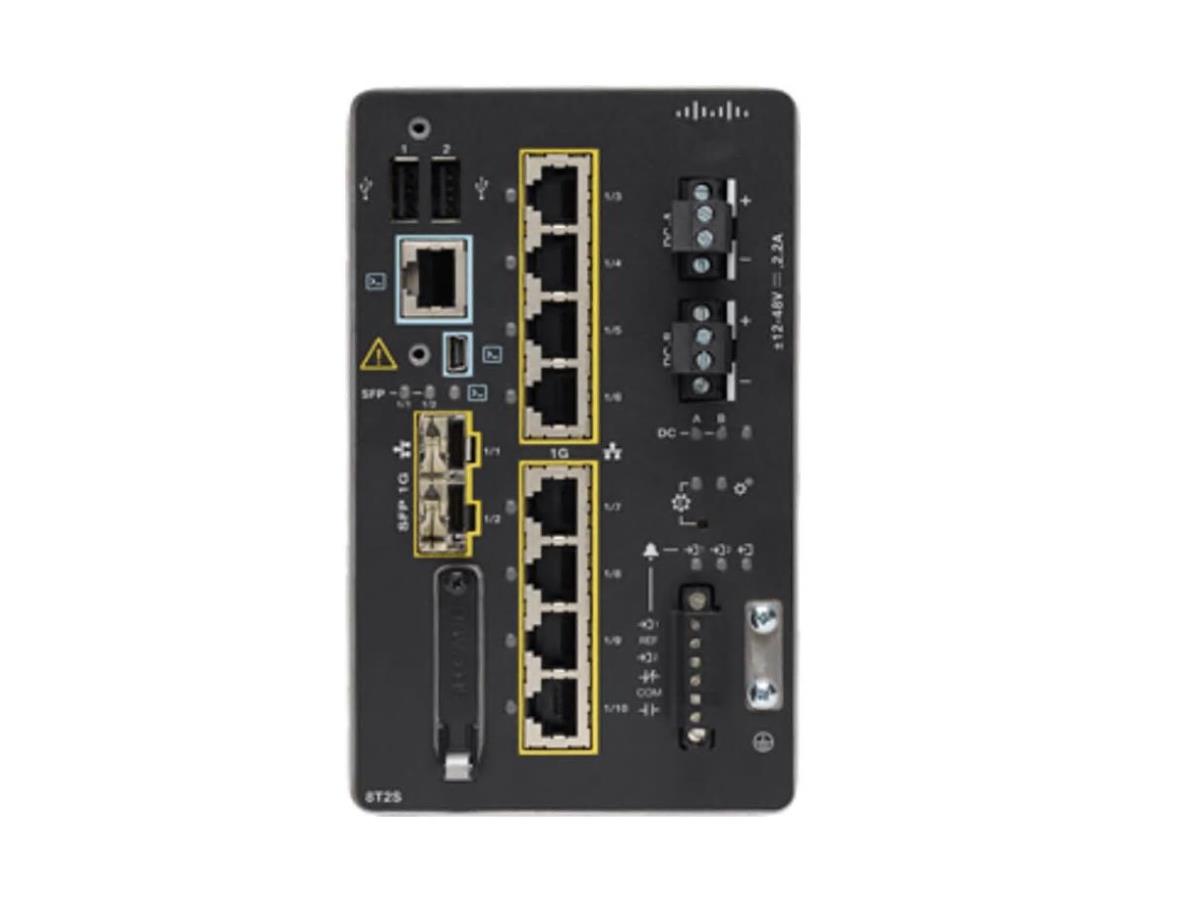

  • The Cisco Catalyst IE3300-8T2S-E is a rugged, modular industrial switch designed for high-performance networking in challenging environments. Featuring eight 10/100/1000BASE-T copper ports and two Gigabit SFP uplinks, it delivers secure and reliable connectivity for industrial applications. With support for Layer 2 and 3 protocols, advanced routing, and industry standards, it provides high availability, manageability, and flexibility over a wide input voltage range of 9.6 to 60V DC.
1 1
Photo is for illustration purposes only. Actual product may be different.
$3,063.44
$3,063.44
Sale Sold out
MSRP: $4,455.92
Shipping calculated at checkout.
  • 8 Gigabit Ethernet RJ45 ports and 2 Gigabit SFP ports for flexible connectivity
  • Supports Layer 2 and Layer 3 protocols including OSPF, BGP, and RIP
  • Industrial-rated temperature tolerance from -40°C to 85°C (storage)
  • Dual power input support from 9.6 to 60VDC with 23W power consumption
  • Rugged, modular design with 4GB RAM and 1.5GB flash memory
  • Remote management via SNMP, RMON, and TFTP with 802.1x, TACACS+, and RADIUS authentication
View full details

Key Benefits

Eye-Insights
  • Ideal for industrial applications requiring robust, wide-temperature-range networking hardware
  • TAA-compliant for deployment in U.S. federal and government procurement projects
  • Five-year limited hardware warranty ensures investment protection and long-term reliability

Product Overview

The Cisco Catalyst IE3300-8T2S-E is engineered for demanding industrial and mission-critical environments where robust performance, modularity, and compliance are essential. This TAA-compliant Gigabit switch offers eight 10/100/1000BASE-T ports and two 100/1000 SFP uplink interfaces, allowing seamless integration with copper and fiber network segments. With its support for Layer 2 and Layer 3 protocols, including OSPF, BGP, and RIP, and compliance with 802.1p, 802.1q, and 802.1s VLAN tagging standards, the device ensures both efficient traffic management and scalability for growing industrial networks.

Built to withstand extreme conditions, the IE3300 operates in temperatures as low as -40°C and up to 85°C storage temperature, making it ideal for transportation, energy, and factory automation sectors. It offers a high availability solution with a mean time between failures (MTBF) of over 633,000 hours and redundant power input across a wide voltage range (9.6–60VDC). Equipped with 4 GB of RAM and 1.5 GB of flash storage, it supports SNMP, RMON, and TFTP for robust remote management. A five-year limited hardware warranty ensures long-term value and reliability. The compact footprint further facilitates deployment in space-constrained environments.

Specifications

Special Feature
COO UNITED STATES
TAA compliance Yes
Min Operating Temperature -40 Degree Celsius
Min Storage Temperature -40 Degree Celsius
Max Storage Temperature 85 Degree Celsius

Primary Information
Network Device Type Switch
Model IE-3300-8T2S-E
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 4 GB
Flash Memory / Installed Size 1.5 GB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q
Media Layer Supported Layer 2, Layer 3
Power / Device Type Power Supply
Uplink Port 2
Power Consumption Operational 23 Watt
Power / Voltage Required 9.6 to 60VDC
MTBF 633420 hours
Features Robust industrial design; User-friendly GUI, called WebUI; SwapDrive for zero-configuration replacement; Full Flexible NetFlow (FNF); IPv6 Ready Logo

Interfaces / Ports
Interfaces 8x 10/100/1000 RJ45 Copper, 2x 100/1000 SFP, USB, RS-232 (via RJ-45), USB Mini Type B
10/100/1000BASE-T Ports 8
SFP Ports 2

Service&Support
Service & Support Type Five-year limited hardware warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size 16K
Jumbo Frame Support 8996 bytes
Remote Management Protocol RMON; DHCP; TFTP; SSH; SNMP
Routing Protocol OSPF, BGP, RIP
Encryption Algorithm MACsec
Authentication Method 802.1x, TACACS+, RADIUS
10/100/1000BASE-T Ports 8
SFP Ports 2
Interfaces 8x 10/100/1000 RJ45 Copper, 2x 100/1000 SFP, USB, RS-232 (via RJ-45), USB Mini Type B

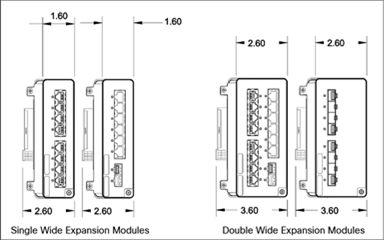

Dimensions&Miscellaneous
Width 3.6 Inch
Depth 5.3 Inch
Height 6 Inch
Weight 3.8 lbs.
