Cisco Catalyst IE3300 TAA 8GE Cu (4PPoE) + 2x10G SFP Switch

VENDOR: CISCO Mfg Part#: IE-3300-8U2X-E++
1 3
Photo is for illustration purposes only. Actual product may be different.
$7,400.45
$7,400.45
Sale Sold out
MSRP: $10,854.00
Shipping calculated at checkout.
  • 8x 10/100/1000 RJ45 Copper ports, including 4 PoE+ capable ports
  • 2 SFP+ ports supporting 1GE/10GE uplink
  • Wide input voltage range from 9.6VDC to 60VDC
  • Supports high-speed 10 Gbps data transfer rate
  • Multiple interfaces: RJ45, RS-232, USB Mini Type B
  • TAA-compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for secure government or critical infrastructure installations due to TAA compliance
  • Offers future-proof network performance with dual 10G uplinks and 10 Gbps throughput
  • Compact design with broad DC power range enables deployment in industrial edge environments

Product Overview

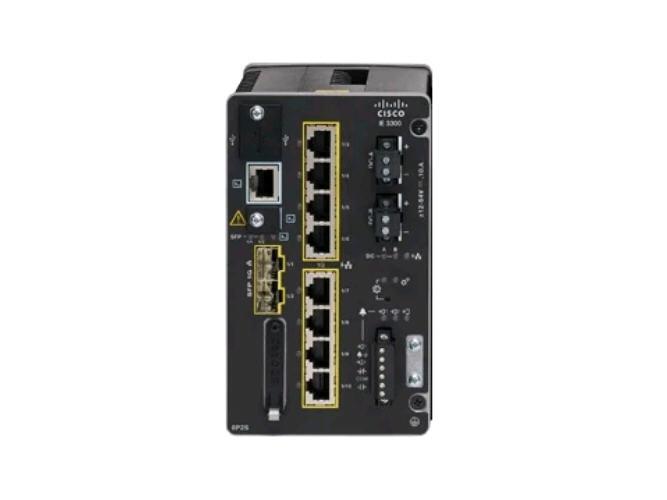

The Cisco Catalyst IE3300 Series is a rugged TAA-compliant industrial switch featuring 8 Gigabit Ethernet copper ports with 4 PoE+ support and 2 10G SFP+ uplinks for high-speed connectivity. Built for harsh environments, it offers a wide voltage input (9.6–60VDC) and includes RS-232 and USB Mini Type B interfaces for flexible management. With compact dimensions and a 5-year limited hardware warranty, this switch is ideal for edge-network deployments in manufacturing and critical infrastructure environments.

Specifications

Product Overview
Product Type Industrial Ethernet Switch
Series Cisco Catalyst IE3300
Model IE-3300-8U2X-E++
TAA Compliant Yes
Form Factor DIN Rail Mountable, Modular
Power Requirements 9.6 to 60VDC
Max Power Consumption 52.2W (with PoE Load)
PoE Support 4 Ports with IEEE 802.3at (PoE+)
Total Number of Ports 10
Copper Ports 8 x 10/100/1000BASE-T
SFP+ Uplink Ports 2 x 1G/10G SFP+
MTBF 834,530 hours (indicative)

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin United States
Certifications CE, UL 508, CSA C22.2, IEC 61000, IEC 61850-3, IEEE 1613
Environmental Compliance RoHS, REACH

Advanced Security Features
MACsec Encryption Yes, hardware-based on selected models
802.1x Authentication Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Access Control Lists (ACLs) Yes

Interfaces
RJ-45 Copper Ports 8 x 10/100/1000BASE-T
SFP+ Ports 2 x 1G/10G SFP+
Console Port 1 x RS-232 (RJ-45)
USB Console Port 1 x USB Mini Type-B
Data Transfer Rate Up to 10 Gbps
Packet Forwarding Rate 41.7 Mpps
Switching Capacity 56 Gbps

Physical & Environmental
Height 6 in (152.4 mm)
Width 4.4 in (111.8 mm)
Depth 5.3 in (134.6 mm)
Weight 2.43 lbs (1.1 kg)
Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +85°C
Relative Humidity (Operating) 5% to 95% non-condensing
Cooling Method Fanless convection
Enclosure Rating IP30

Cloud Management & Licensing
Management Interface Web UI, CLI, SNMP, Cisco IOS XE
Cloud Management Support Cisco DNA Center (optional licensing)
Licensing Model Cisco Smart Licensing
Included Software Cisco IOS XE operating system (IP Lite feature set)
