Cisco Catalyst IE3400H 16-Port IP67 Industrial Switch

VENDOR: CISCO Mfg Part#: IE-3400H-16T-E++
  • The Cisco Catalyst IE3400 Heavy Duty switch is built for rugged industrial environments, delivering high-speed connectivity through 16 Gigabit M12 interfaces and robust Layer 2/3 support. Designed with IP67 protection and TAA compliance, it’s ideal for harsh deployments that demand reliability, security, and extended temperature tolerance. Advanced protocols, including OSPF, BGP, and SNMP, ensure versatile integration into industrial networks.
1 1

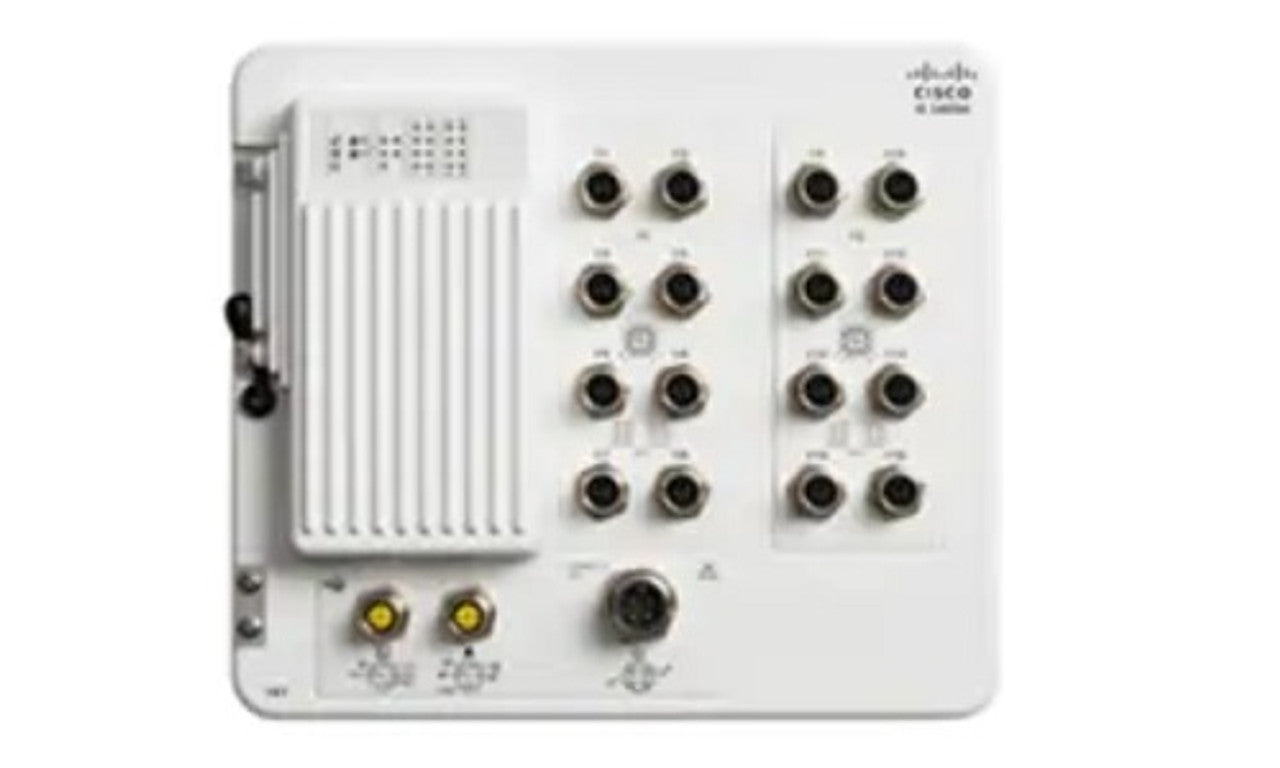

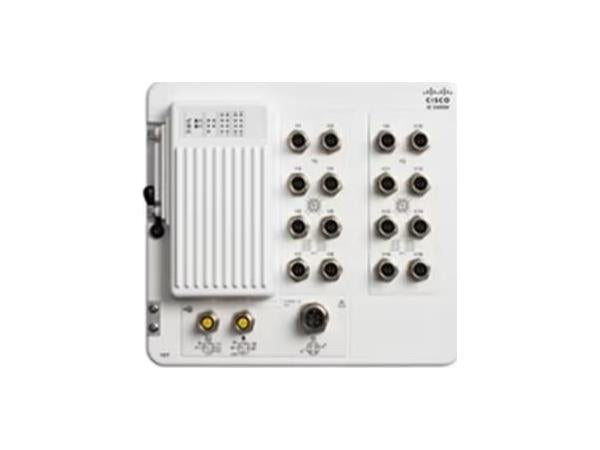

Photo is for illustration purposes only. Actual product may be different.
$6,826.89
$6,826.89
Sale Sold out
MSRP: $9,930.01
Shipping calculated at checkout.
  • 16 x 10/100/1000 Mbps M12 (X-coded) Ethernet ports with IP67 ruggedization
  • 4 GB DRAM and 1.5 GB Flash memory supporting advanced Layer 2/3 routing
  • Supports SNMP, DHCP, IPv6, RADIUS, and AES for secure network management
  • 8000-entry MAC address table with 2000-byte jumbo frame support
  • TAA-compliant design with wide voltage range (9.6 to 60VDC)
  • High MTBF of 489,458 hours for long-term reliability in harsh conditions
View full details

Key Benefits

Eye-Insights
  • Designed with IP67-rated housing and M12 connectors, this switch is ideal for harsh, moisture-prone environments.
  • Advanced Layer 3 capabilities including OSPF, BGP, and RIP enable flexible deployment in complex industrial networks.
  • High memory and protocol support ensure scalability and future-proof investment backed by a 5-year limited warranty.

Product Overview

The Cisco Catalyst IE3400H-16T-E Heavy Duty Industrial Switch is engineered for demanding edge-network environments where extreme durability and uninterrupted connectivity are paramount. Equipped with 16 M12 X-coded Gigabit Ethernet interfaces and IP67-rated housing, this switch is fully sealed against dust and moisture, making it well-suited for transportation, manufacturing, and outdoor installations. TAA compliance further ensures suitability for government and industrial procurement standards.

Networking performance is powered by 4 GB DRAM and 1.5 GB flash memory, allowing it to support full Layer 2 and Layer 3 protocols, including RIP, OSPF, BGP, and IPv6. With support for 802.1D/p/q standards, RADIUS authentication, and AES encryption, the IE3400H offers secure, managed network access. Its remote management suite includes SNMP and DHCP for seamless configuration and operation. The switch supports jumbo frames of up to 2000 bytes and provides robust MAC address handling with an 8000-entry table capacity.

Designed for longevity, the IE3400H boasts a mean time between failures (MTBF) of 489,458 hours and operates across extreme temperatures from -40°C to 85°C. Its 5-year limited hardware warranty affirms long-term deployment confidence, delivering substantial ROI through reduced maintenance and downtime in mission-critical environments.

Specifications

Primary Information
Network Device Type Switch
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Model IE-3400H-16T-E
Connectivity Technology Wired
RAM / Total Installed Size 4 GB
Flash Memory / Installed Size 1.5 GB
Networking Compliant Standards IEEE 802.1D,IEEE 802.1p ,IEEE 802.1q
Media Layer Supported Layer 2 and Layer 3
Power / Device Type Power Supply
Power / Voltage Required 9.6 to 60VDC
MTBF 489458 hours
Features Heavy-duty design and industry compliance; Advanced network-based security; Next-generation switching features and innovations

Network
Interfaces 10/100/1000 Gigabit Ethernet (X-code) ports, Console ports
MAC Address Table Size 8000
Jumbo Frame Support 2000 bytes
Remote Management Protocol DHCP; IPv6; SNMP
Routing Protocol OSPF (v4 and v6), BGP (v4 and v6), RIP (v1 and v2)
Encryption Algorithm AES
Authentication Method RADIUS
10/100/1000BASE-T Ports 16

Special Feature
COO UNITED STATES
TAA compliance Yes
Min Operating Temperature -40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 85 Celsius

Service&Support
Service & Support Type 5-year limited hardware warranty

Interfaces / Ports
Interfaces 10/100/1000 Gigabit Ethernet (X-code) ports, Console ports
10/100/1000BASE-T Ports 16

Dimensions&Miscellaneous
Width 10.9 Inch
Depth 3.15 Inch
Height 9.58 Inch
Weight 5.1 Kg

UNSPSC Code
UNSPSC Code 43222612
