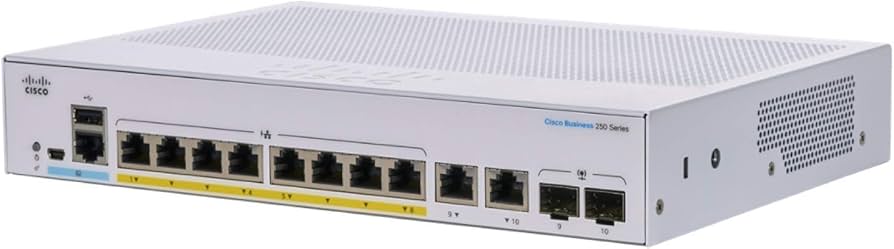

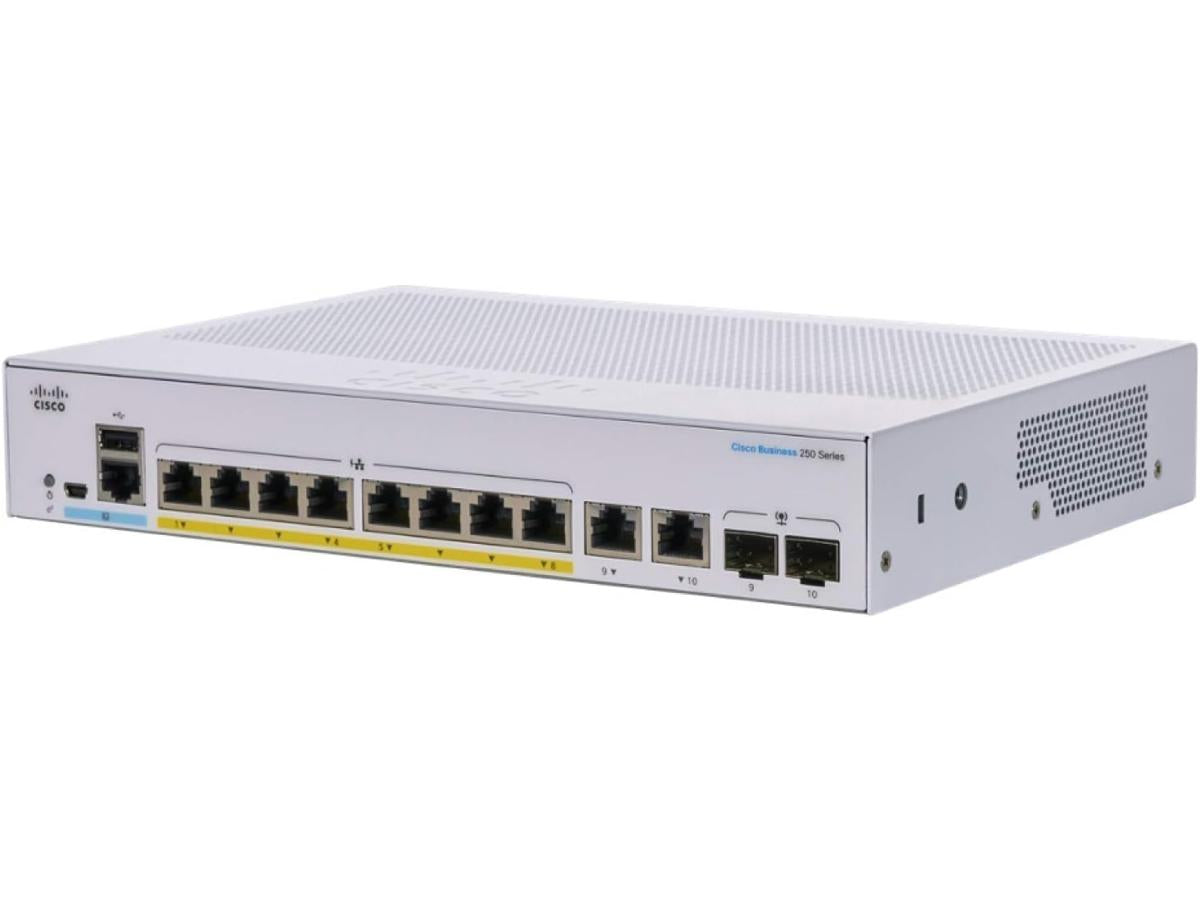

Cisco CBS250-8FP-E-2G Smart 8-Port GE PoE+ Switch (Remanufactured)

VENDOR: CISCO Mfg Part#: CBS250-8FPE2GNA-RF
  • The Cisco CBS250-8FP-E-2G is a smart, rack-mountable, 8-port Gigabit Ethernet switch with full Power over Ethernet Plus (PoE+) capabilities and combo uplink ports. Designed for small to medium-sized business networks, it supports Layer 2 and Layer 3 media protocols, features robust remote management options, and delivers high energy efficiency. This remanufactured model offers powerful performance and reliable connectivity ideal for growing network infrastructures.
1 1
Photo is for illustration purposes only. Actual product may be different.
$199.09
$199.09
Sale Sold out
MSRP: $212.36
Shipping calculated at checkout.
  • 8-port Gigabit Ethernet with full 120W PoE+ support
  • 2x Gigabit copper/SFP combo uplink ports
  • Layer 2 & Layer 3 support: 802.1d, 802.1w, 802.1s, with static routing
  • ARM processor with 512MB RAM and 256MB flash memory
  • Remote management via SNMP, Syslog, and DHCP
  • Rack-mountable form factor with jumbo frame support up to 9K bytes
View full details

Key Benefits

Eye-Insights
  • Enables cost-effective deployment of powered devices with 120W PoE+ capability across 8 ports
  • Combines smart Layer 2/3 features and remote manageability ideal for scalable SMB networks
  • High reliability with an MTBF of over 1.7 million hours and wide temperature tolerances for dependable operation

Product Overview

The Cisco CBS250-8FP-E-2G is a feature-rich, smart managed switch offering 8 Gigabit Ethernet ports with full PoE+ support and a 120-watt power budget, enabling connection and powering of IP phones, cameras, and access points. Its combo uplink ports offer network expansion flexibility using copper or SFP fiber modules.

It supports Layer 2 and Layer 3 protocols, including 802.1d/w/s and static routing, alongside jumbo frame handling, backed by a 512MB RAM / 256MB flash memory setup and ARM processor. With remote management via SNMP, Syslog, and DHCP, the switch is built for streamlined operations in modern SMB networks.

Featuring an MTBF of over 1.7 million hours and broad environmental tolerances (-5°C to 50°C), this remanufactured, TAA-compliant rack-mountable PoE switch delivers commercial-grade reliability with strong cost-efficiency.

Specifications

Primary Information
Power / Device Type Power Supply
Power / Voltage Required 100 to 240V 50 to 60 Hz
Network Device Type Switch
Model CBS250-8FP-E-2G
Form Factor Rack-Mountable
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Networking / Ports Qty 15
Data Link Protocol Gigabit Ethernet
Processor / Type ARM
RAM / Total Installed Size 512 MB
Flash Memory / Installed Size 256 MB
Networking Compliant Standards 802.1d, 802.1w, 802.1s
Media Layer Supported Layer 2, Layer 3
MTBF 1706649 hours

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 10/100/1000 PoE+;Gigabit copper/SFP combo;RJ45 console;USB Type-A

Special Feature
COO UNITED STATES
TAA compliance Yes
Min Operating Temperature -5 Celsius
Max Operating Temperature 50 Celsius
Min Storage Temperature -25 Celsius
Max Storage Temperature 70 Celsius

Network
Power Over Ethernet (PoE) Support Y
PoE Power Consumption 120 W
MAC Address Table Size 8K
Jumbo Frame Support Up to 9K bytes
Remote Management Protocol SNMP; Syslog; DHCP
Routing Protocol Static
Encryption Algorithm TCP
Authentication Method RADIUS
Interfaces 10/100/1000 PoE+;Gigabit copper/SFP combo;RJ45 console;USB Type-A

Dimensions&Miscellaneous
Width 10.56 Inch
Depth 7.28 Inch
Height 1.73 Inch
Weight 1.53 Kg
