CISCO CGR-2010 Connected Grid Router with 2GE & 4 GRWIC Slots

VENDOR: CISCO Mfg Part#: CGR-2010/K9
1 3

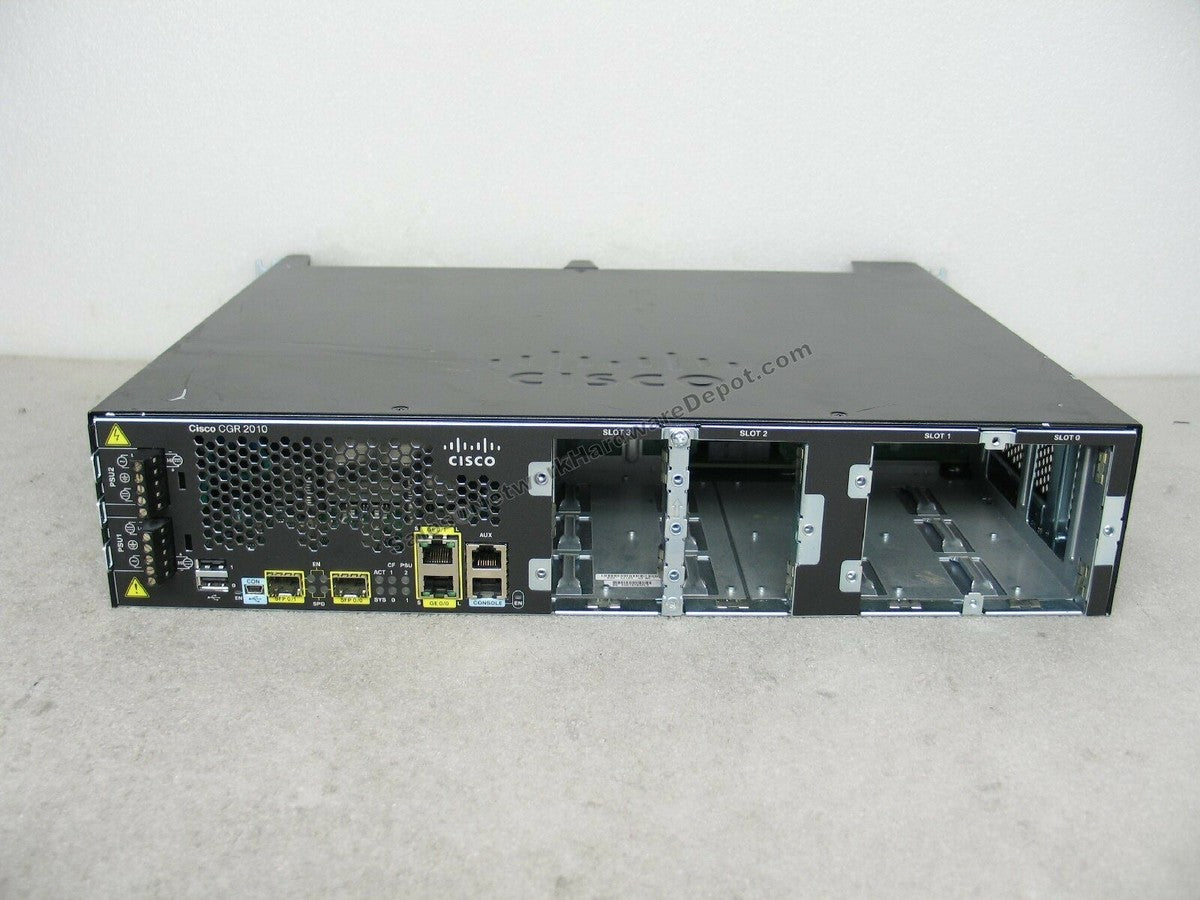

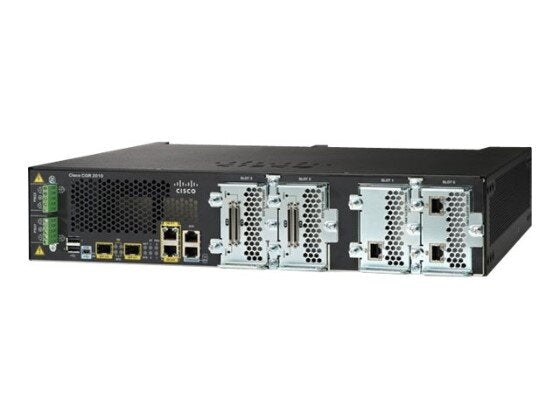

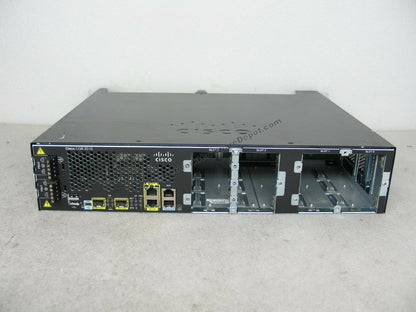

Photo is for illustration purposes only. Actual product may be different.
$4,999.78
$4,999.78
Sale Sold out
MSRP: $7,333.02
Shipping calculated at checkout.
  • 2 Gigabit Ethernet ports for high-speed connectivity
  • 4 GRWIC slots for modular interface expansion
  • 256 MB Compact Flash and 1 GB DRAM for reliable operation
  • Supports routing protocols: OSPF, EIGRP, BGP, ISIS, IGMPv3
  • Interfaces include USB 2.0, USB console (Type B), serial console, and serial auxiliary
  • TAA compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Built to meet federal and industrial standards with TAA compliance and U.S. manufacturing origin
  • Supports advanced routing protocols and interfaces for scalable enterprise or utility deployments
  • Flexible port configuration including USB and serial enables diverse connectivity and maintenance options

Product Overview

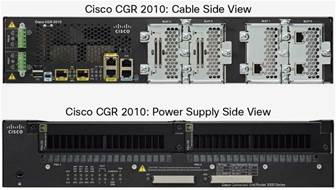

The Cisco CGR-2010/K9 Connected Grid Router is engineered for utility and industrial networking scenarios, featuring 2 Gigabit Ethernet ports and 4 GRWIC slots for interface expansion. With 1 GB DRAM and 256 MB CF memory, it handles standard routing tasks efficiently. It supports dynamic routing protocols including OSPF, EIGRP, BGP, and more. Multiple port types including USB 2.0, USB console (Type B), and serial interfaces enable flexible device management. Manufactured in the United States and TAA compliant, it is suitable for regulated and government deployments.

Specifications

Product Overview
Product Type Connected Grid Router
Form Factor Rack-mountable
Weight 9.5 lbs (4.3 kg)
Power Requirements 36 to 72 VDC or 88 to 300 VDC
Power Consumption (Max) 60W
Memory (DRAM) 1 GB
Compact Flash Memory 256 MB
Processor Type Cisco 400-MHz MIPS processor
Redundant Power Supply Support Yes
Rack Units 1U

Wireless Features
Wireless Capability Optional via expansion modules
Cellular Support Supported with compatible 3G/4G GRWIC modules

Compliance & Origin
Country of Origin United States
TAA Compliance Yes
Certifications UL 60950-1, EN 60950-1, IEC 60950-1, CE Mark, RoHS
EMC Standards EN55022 Class A, EN55024
Safety Standards UL/CSA/EN/IEC 60950-1

Advanced Security Features
Integrated Firewall Yes, with Cisco IOS Firewall
VPN Support IPSec, GRE, and DMVPN
Access Control Lists (ACL) Supported
Intrusion Prevention System (IPS) Available via modules
Content Filtering Optional with additional license
Secure Boot and Trusted Platform Module (TPM) Yes

Interfaces
WAN Ports 2 x 10/100/1000 GE (RJ45 and SFP combo)
Expansion Slots 4 x GRWIC slots
Console Ports 1 x RJ45, 1 x USB Type B
USB Ports 1 x USB 2.0 Type A
Serial Ports 1 x Auxiliary (RJ45)
LAN Interfaces Supported Fast Ethernet, Gigabit Ethernet
Switching Capacity 2 Gbps
Routing Protocols Supported BGP, EIGRP, OSPF, RIP, IS-IS, IPv4, IPv6

Physical & Environmental
Dimensions (W x D x H) 17.4 x 14.8 x 1.75 inches (442 x 376 x 44.5 mm)
Operating Temperature -40°C to 60°C (-40°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% non-condensing
Mean Time Between Failures (MTBF) 259,995 hours
Cooling Internal fans

Cloud Management & Licensing
Centralized Management Cisco Prime Infrastructure
Software Licensing Universal IOS Software with feature licenses
Cloud Services Support Cisco IOx, rugged IoT SDK support
