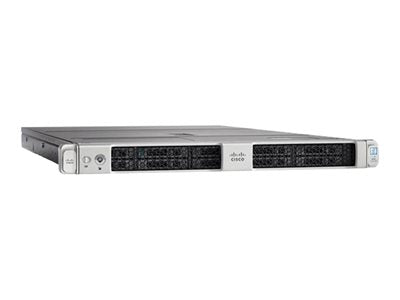

Cisco Cyber Vision Center Appliance M5S3 Server, Xeon 10-Core, 32GB, 1U

VENDOR: CISCO Mfg Part#: CV-CNTR-M5S3
1 3
Photo is for illustration purposes only. Actual product may be different.
$6,385.97
$6,385.97
Sale Sold out
MSRP: $9,366.09
Shipping calculated at checkout.
  • 1U rack-mountable form factor for efficient space utilization
  • Intel Xeon processor with 10-core, 2.4GHz clock speed for high-performance processing
  • 32GB DDR4 RDIMM memory at 2933MHz for fast data access
  • Four 400GB 2.5" SAS SSDs in RAID 1/10 for speed and redundancy
  • Dual 10GBASE-T Intel x550 Ethernet ports for high-speed connectivity
  • Redundant-capable 1050W power supply for increased uptime reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed with hot-pluggable SSDs and RAID 1/10, it ensures critical data redundancy and uptime.
  • Dual 10GBASE-T ports and a 10-core Xeon CPU enable reliable high-throughput performance for industrial workloads.
  • TAA compliance and Cisco’s edge architecture make it ideal for regulated industries and secure deployments.

Product Overview

The Cisco Cyber Vision Center Appliance M5S3 is a compact 1U server built for industrial applications. Powered by an Intel Xeon 10-core processor and 32GB DDR4 RDIMM at 2933MHz, it ensures optimized compute power. Storage is managed via four 400GB 2.5" SAS SSDs in RAID 1 or RAID 10 configurations, supporting hot-swappable drives for operational efficiency. Connectivity includes dual 10GBASE-T Intel x550 Ethernet ports, and it is equipped with a redundant-capable 1050W power supply. TAA compliance and a robust edge architecture make this system ideal for mission-critical environments.

Specifications

Product Overview
Product Type Server
Model CV-CNTR-M5S3
Form Factor 1U Rack-mountable
Processor Intel Xeon 10-Core
Processor Clock Speed 2.4 GHz
Installed Memory 32 GB DDR4 RDIMM
Memory Speed 2933 MHz
Memory Slots Used 2
Storage Type Hot-swappable 2.5" SAS SSD
Total Storage Capacity 1.6 TB (4 x 400 GB SSD)
RAID Support RAID 1, RAID 10
Hot-swappable Drives Yes
Power Supply 1050W Redundant-capable

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications FCC, UL, CE, RoHS, ENERGY STAR (select configs)

Advanced Security Features

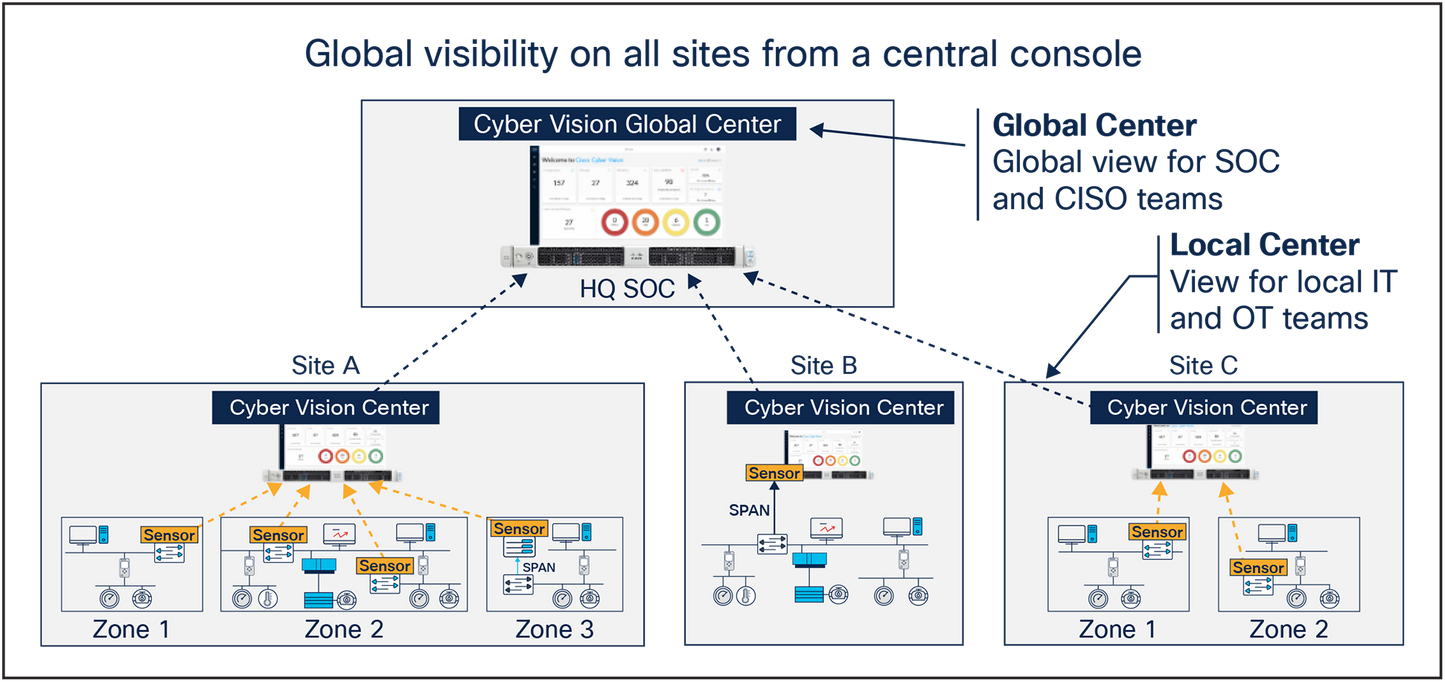

Industrial Security Integration Yes, powered by Cisco Cyber Vision
Firewall Support Yes (as part of integrated solution)
Intrusion Detection/Prevention Yes, with Cyber Vision
Network Segmentation Tools Yes, via integration with Cisco networking
Traffic Analysis & Monitoring Yes
Threat Detection Yes, with deep packet inspection

Interfaces
Ethernet Ports 2 x 10GBASE-T Intel x550
Data Transfer Rate 10 Gbps per port
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet / 10 Gigabit Ethernet

Physical & Environmental
Form Factor 1U
Dimensions (W x H x D) 17.2 in x 1.7 in x 28.5 in
Weight Approximately 36.85 lbs (16.7 kg)
Operating Temperature 10°C to 35°C (50°F to 95°F)
Non-Operating Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Non-Operating Humidity 5% to 95% (non-condensing)

Cloud Management & Licensing
Cloud Management Platform Cisco Cyber Vision
Included Licenses Cyber Vision Center software license (varies by SKU)
Management Interface Web UI and REST API
