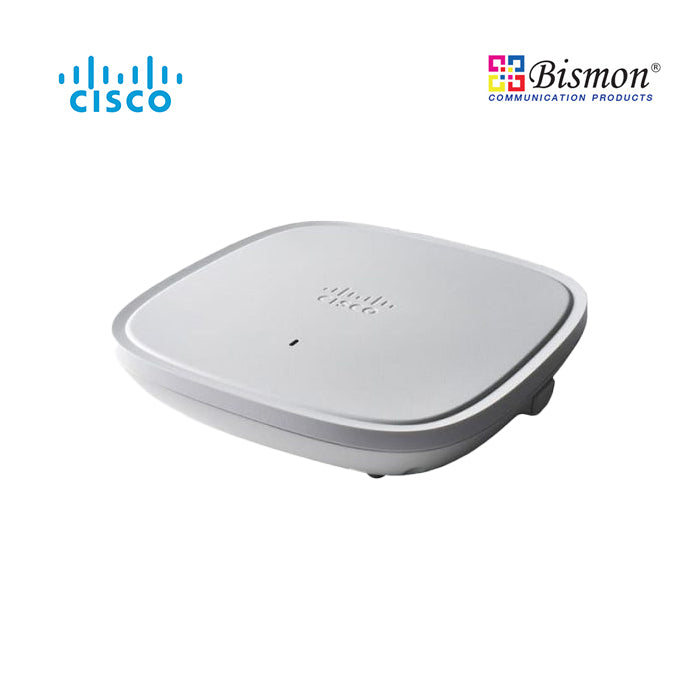

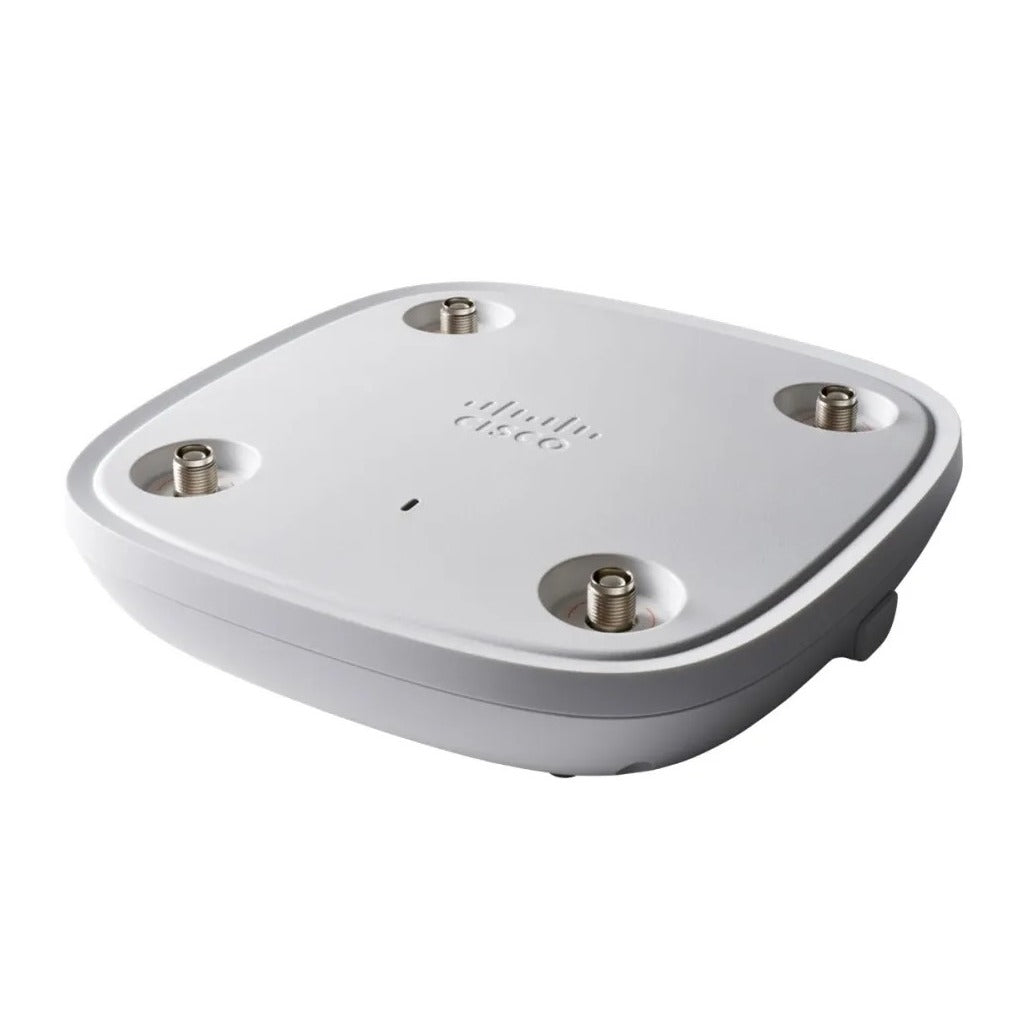

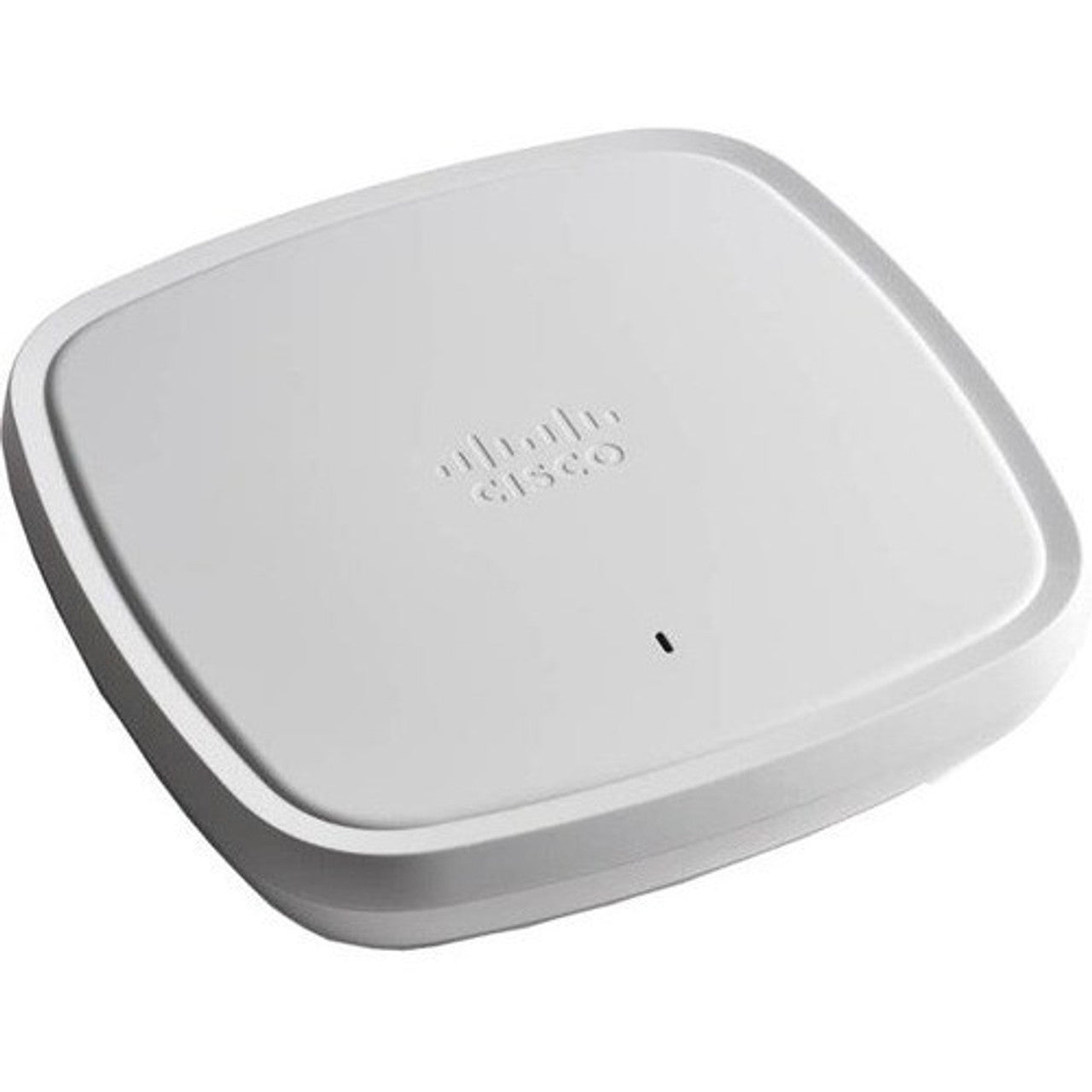

Cisco Embedded Wireless Controller on C9120AX Access Point

VENDOR: CISCO Mfg Part#: C9120AXI-EWC-A
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,475.91
$1,475.91
Sale Sold out
MSRP: $2,164.68
Shipping calculated at checkout.
  • Dual-radio configuration supports both 2.4 GHz and 5 GHz for flexible connectivity
  • Supports 802.11ac, 802.11n, and 802.11a wireless standards for broad device compatibility
  • 4x4 MIMO antenna system enhances performance and coverage
  • Gigabit Ethernet interface ensures fast and reliable wired connectivity
  • PoE power consumption rated at 25.5W simplifies installation
  • TAA compliant with limited lifetime hardware warranty for enhanced reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Integrated wireless controller reduces need for additional hardware, simplifying network deployment
  • Compliance with PoE standards (802.3af and 802.3at) lowers installation costs in power-limited environments
  • Limited lifetime hardware warranty offers peace of mind for long-term ROI

Product Overview

The Cisco Embedded Wireless Controller on C9120AX Access Point is engineered to deliver enterprise-grade wireless performance with the convenience of a built-in controller. It operates over both 2.4 GHz and 5 GHz bands using a dual-radio 4x4 MIMO setup, supporting 802.11ac, 802.11n, and 802.11a standards. Gigabit Ethernet connectivity and PoE power draw of 25.5W streamline infrastructure needs. With TAA compliance and a limited lifetime warranty, it's ideal for government and enterprise use. Its compact design allows easy deployment in diverse environments.

Specifications

Product Overview
Product Type Wireless Access Point with Embedded Wireless Controller
Model C9120AXI-EWC-A
Series Cisco Catalyst 9100 Series
Form Factor Ceiling or wall mountable
MIMO Type 4x4 MU-MIMO
Power Requirements IEEE 802.3at (PoE+)
PoE Power Consumption 25.5W
Service & Support Type Limited lifetime hardware warranty

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
Max Data Rate 5.2 Gbps
Antenna Type Internal antennas
OFDMA Supported
Target Wake Time (TWT) Supported
Spatial Streams 4
Beamforming Yes

Compliance & Origin
Compliance Standards UL 60950-1, FCC CFR47 Part 15, ICES-003, EN55032, EN55024, ENERGY STAR
Certifications TAA, RoHS, WEEE
TAA Compliance Yes
Country of Origin Mexico

Advanced Security Features
Encryption Protocols WPA3, WPA2, AES-CCMP, TKIP
Secure Boot Yes
Trust Anchor Module (TAM) Included
Content Filtering Available via Cisco Umbrella integration
Role-based Access Control Yes

Interfaces
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Ethernet Ports 1 x 10/100/1000BASE-T (RJ-45)
Uplink Interface 1 Gbps Ethernet
Management Console Port Yes (RJ-45)
Power over Ethernet (PoE) 802.3af/at compliant

Physical & Environmental
Width 8.5 in
Depth 8.05 in
Height 2.0 in
Weight 2.2 lb (1.0 kg)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -22°F to 158°F (-30°C to 70°C)
Operating Humidity 10% to 90% (non-condensing)

Cloud Management & Licensing
Management Interface Embedded Wireless Controller (EWC)
Cloud Integration Cisco DNA Center (optional)
Licensing Model Cisco Smart Licensing
Included Licensing EWC base functionality included; DNA licensing optional
