Cisco Embedded Wireless Controller on C9120AXE Access Point

VENDOR: CISCO Mfg Part#: C9120AXE-EWC-B UPC#: 889728267519
  • The Cisco Embedded Wireless Controller on C9120AXE Access Point combines enterprise-grade networking with a built-in wireless controller for simplified, scalable deployments. Supporting Wi-Fi 6 and integrated Bluetooth 5.0, it delivers high-performance wireless connectivity, robust security features, and comprehensive device management.
1 1

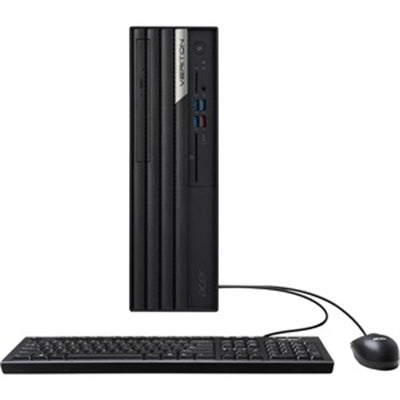

Photo is for illustration purposes only. Actual product may be different.
$1,569.54
$1,569.54
Sale Sold out
MSRP: $2,282.97
Shipping calculated at checkout.
  • Wi-Fi 6 (IEEE 802.11ax) support with 4x4:4 MU-MIMO and OFDMA for high-density environments
  • Embedded controller functionality eliminates need for separate wireless LAN controller
  • Integrated Bluetooth 5.0 and IEEE 802.15.4 for IoT compatibility
  • Secure connectivity with AES encryption, PSK, WPA/WPA2, EAP-SIM, and Cisco Trust Anchor
  • Supports UPOE with 1/2.5GBase-T connectivity and detachable antennas
  • Rugged indoor design with wide operating temperature and humidity tolerances
View full details

Key Benefits

Eye-Insights
  • Consolidates controller and access point functions into one device to reduce infrastructure complexity and cost
  • Superior performance with Wi-Fi 6, TWT, and beamforming features ideal for high-density enterprise environments
  • Meets government procurement standards with TAA compliance and limited lifetime warranty

Product Overview

The Cisco Embedded Wireless Controller on C9120AXE Access Point is a high-performance Wi-Fi 6 solution tailored for enterprise and indoor environments requiring scalable and flexible wireless network infrastructure. Designed as a 4x4:4 MU-MIMO access point, it supports advanced wireless technologies including OFDMA, Target Wake Time (TWT), and beamforming, enabling higher throughput and lower latency for a dense device ecosystem. With embedded wireless controller capabilities, organizations can deploy, manage, and troubleshoot networks without the need for a physical wireless LAN controller, drastically reducing hardware footprint and cost.

This unit features integrated Bluetooth 5.0 and IEEE 802.15.4, making it compatible with IoT applications, while AES, WPA3-ready encryption, and Cisco Trust Anchor technology offer comprehensive enterprise-grade security. The external form factor includes detachable antennas and multiple connectivity ports such as 1/2.5GBase-T and USB 2.0, supporting flexible wiring and expansion. UPOE (Universal Power over Ethernet) compatibility and rugged indoor design ensure operational reliability across a wide range of environments with temperature tolerance from -4°F to 122°F and up to 90% non-condensing humidity.

Backed by a limited lifetime warranty and TAA compliance, the C9120AXE-EWC-B is suitable for government, educational, and commercial applications demanding interoperability, performance, and centralized control—without added controller infrastructure.

Specifications

Primary Information
Data Transfer Rate 2.5 Gbps
Data Link Protocol Gigabit Ethernet
Product Type Access Point
Networking Type Ethernet
Environment Indoor
Frequency Band 2.4 GHz; 5 GHz
MIMO Type 4x4 MIMO

Special Feature
COO MEXICO
TAA compliance Yes

Networking
Transport Protocol Gigabit Ethernet
Networking / Ports Qty 3

Service&Support
Service & Support Type Limited lifetime hardware warranty

Dimensions&Miscellaneous
Width 8.5 Inch
Depth 8.05 Inch
Height 2.0 Inch

UNSPSC Code
UNSPSC Code 43221700

Miscellaneous
Interfaces RJ-45 ; Management console port ; USB 2.0
RAM / Total Installed Size 2 GB
