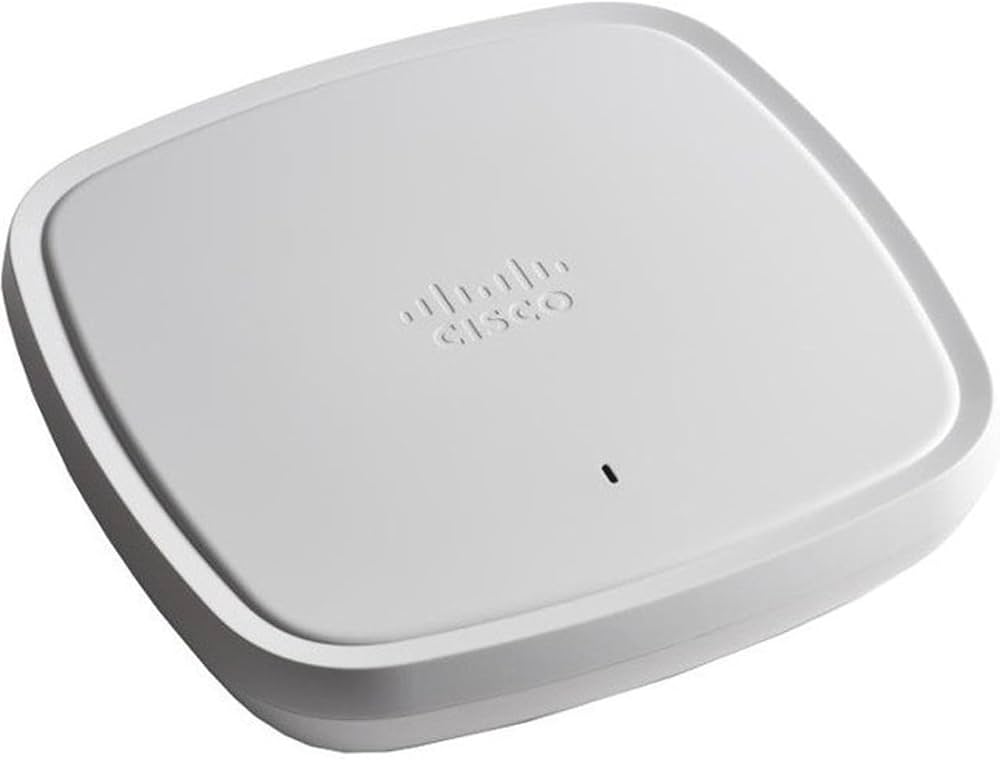

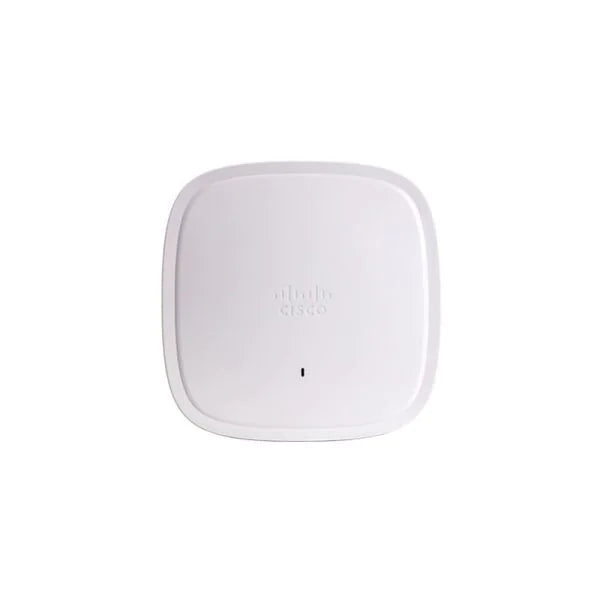

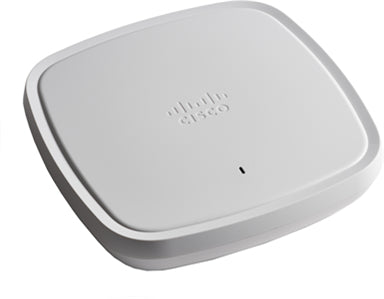

Cisco Embedded Wireless Controller on C9130AX Access Point

VENDOR: CISCO Mfg Part#: C9130AXI-EWC-B-EDU
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,822.73
$1,822.73
Sale Sold out
MSRP: $2,673.32
Shipping calculated at checkout.
  • Supports data transfer rates up to 5 Gbps
  • Dual-band 2.4 GHz and 5 GHz operation
  • 4x4:4 MU-MIMO antenna configuration
  • Includes 3 Ethernet ports for connectivity
  • 2 GB RAM for embedded controller functionality
  • Supports 802.11a/b/g/n/ac wireless standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Combines access point and embedded controller in one unit, simplifying deployment and reducing hardware costs
  • High-speed 5 Gbps throughput and MU-MIMO maximize performance in dense network environments
  • TAA compliance and limited lifetime warranty ensure suitability for government use and long-term investment protection

Product Overview

The Cisco Embedded Wireless Controller on C9130AX Access Point offers a dual-purpose architecture—serving as both a high-performance wireless AP and an integrated controller. It supports 802.11a/b/g/n/ac standards and utilizes dual-band 2.4 GHz and 5 GHz frequencies to optimize coverage and throughput. Featuring a 4x4:4 MU-MIMO configuration and data speeds up to 5 Gbps, it delivers enterprise-grade reliability and performance. Designed for indoor use, this model includes 3 Ethernet ports and 2 GB RAM, making it suitable for scalable deployment in educational and corporate sectors. The TAA compliance and limited lifetime hardware warranty add to its business-grade appeal.

Specifications

Product Overview
Type Embedded Wireless Controller Access Point
Form Factor Ceiling or wall mountable
Weight 1.13 kg
Power Requirements IEEE 802.3at PoE+ or Cisco Universal Power over Ethernet (UPOE)
Environment Indoor
RAM 2 GB

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Band 2.4 GHz; 5 GHz
MIMO Type 4x4:4 MU-MIMO
Maximum Data Rate 5374 Mbps
Spatial Streams 4
Antenna Type Internal antenna
Antenna Gain 2.8 dBi (2.4 GHz), 5.5 dBi (5 GHz)
802.11a Yes
802.11b Yes
802.11g Yes
802.11n Yes
802.11ac Yes
802.11ax Yes
OFDMA Support Yes
BSS Coloring Yes

Compliance & Origin
Country of Origin MEXICO
TAA Compliance Yes
Certifications UL 60950-1, FCC Part 15C, ICES-003, RoHS
Warranty Limited lifetime hardware warranty

Advanced Security Features
Wireless Security WPA3, WPA2, WPA
Secure Boot and Run-Time Defense Yes
Encrypted Traffic Analytics (ETA) Yes
Rogue Access Point Detection Yes
Cisco Trust Anchor Yes
Management Frame Protection (MFP) Yes
Secure Zero Touch Provisioning (ZTP) Yes

Interfaces
Networking Type Ethernet
Interface Type RJ-45
Networking / Ports Qty 3
Uplink Port 1 x 5 Gbps Multigigabit Ethernet (PoE In)
Downlink Ports 2 x 1 Gbps Ethernet (Local Access + Passive PoE Out)
Console Port 1 x Micro USB
Data Transfer Rate 5 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Physical & Environmental
Width 8.9 Inch
Depth 8.9 Inch
Height 1.88 Inch
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 70°C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Enclosure Material Plastic/Metal

Cloud Management & Licensing
Management Interface Embedded Wireless Controller (EWC)
Cloud Management Cisco DNA Center (optional)
License Type Cisco DNA Essentials or Advantage (Subscription)
License Term 1/3/5/7 years (based on selection)
