Cisco Embedded Wireless Controller on Catalyst 9120AX Access Point

VENDOR: CISCO Mfg Part#: C9120AXP-EWC-B-EDU
  • The Cisco Catalyst 9120AXP Access Point delivers enterprise-class connectivity with built-in wireless controller functionality, streamlining professional indoor deployments. Supporting Wi-Fi 6 (802.11ax), dual-band operation, and 2.5 Gbps data transfer speeds, this access point is engineered for high-performance wireless networks. With integrated Bluetooth, Gigabit Ethernet, and 4x4 MIMO, it offers robust device capacity and advanced reliability for modern IT infrastructures.
1 1

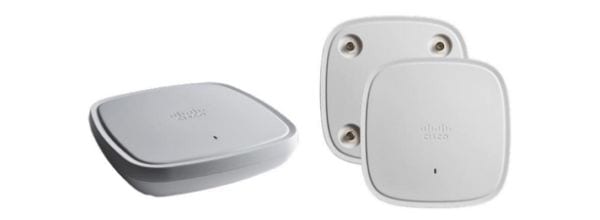

Photo is for illustration purposes only. Actual product may be different.
$1,569.54
$1,569.54
Sale Sold out
MSRP: $2,282.97
Shipping calculated at checkout.
  • Supports Wi-Fi 6 (802.11ax) for improved performance and efficiency
  • Dual-band operation (2.4 GHz and 5 GHz) with 4x4 MIMO antenna setup
  • Data transfer speed up to 2.5 Gbps for high-speed connectivity
  • Built-in wireless controller functionality for simplified deployment
  • 2048 MB RAM and 1024 MB flash storage with 3 networking ports
  • Compliance with IEEE 802.11 standards and TAA regulations
View full details

Key Benefits

Eye-Insights
  • Reduces infrastructure complexity with integrated wireless controller—ideal for streamlined enterprise deployments
  • Supports high-density environments with dual-band 4x4 MIMO and Wi-Fi 6 for faster, more reliable connections
  • Backed by Cisco’s limited lifetime warranty for long-term hardware assurance and lower total cost of ownership

Product Overview

The Cisco Embedded Wireless Controller on Catalyst 9120AX Access Point (Model C9120AXE) is a high-performance indoor wireless solution designed for enterprise environments. Supporting Wi-Fi 6 (802.11ax) and legacy standards, it delivers exceptional throughput and capacity with dual-band operation (2.4 GHz and 5 GHz) and 4x4 MIMO antennas, reaching speeds up to 2.5 Gbps. With embedded wireless controller capabilities, this access point simplifies deployment and management. It features Gigabit Ethernet, Wi-Fi, and Bluetooth support, 2048 MB DRAM, and 1024 MB flash memory. Complying with IEEE 802.3at/bt/af and TAA standards, and consuming just 25.5W, it's ideal for education, healthcare, or enterprise use. Comes backed by a limited lifetime hardware warranty.

Specifications

Primary Information
Product Type Access Point
Networking Type Ethernet
Data Transfer Rate 2.5 Gbps
Data Link Protocol Gigabit Ethernet; Bluetooth; Wi-Fi
Processor / Type None Processor
Processor / Manufacturer Not Included
Processor / Clock Speed Not Included GHz
Processor / Number Not Included
Environment Indoor
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
Connectivity Technology Wireless
MIMO Type 4x4 MIMO
Antenna Type Antenna
Model C9120AXE
Features Wi-Fi 6 (802.11ax); Cisco RF ASIC; Uplink/downlink OFDMA; MUMIMO technology; BSS coloring

Miscellaneous
RAM / Total Installed Size 2048 MB

Power
Max Power Consumption 25.5 Watt

Special Feature
COO MEXICO
TAA compliance Yes

Networking
Transport Protocol Gigabit Ethernet
Networking Compliant Standards IEEE 802.11a/b/g/n/ac/ax, 802.3at,802.3bt,802.3af
Networking / Ports Qty 3
Cellular Technology None
Cellular Service Provider None
Cellular Generation None

Dimensions&Miscellaneous
Width 8.5 Inch
Depth 8.05 Inch
Height 2.0 Inch

Service&Support
Service & Support Type Limited lifetime hardware warranty

UNSPSC Code
UNSPSC Code 43222631
