Cisco FPR4K-XNM-6X10LRF Network Module, 6-Port 10Gb LR-Singlemode

VENDOR: CISCO Mfg Part#: FPR4K-XNM-6X10LRF=
1 3

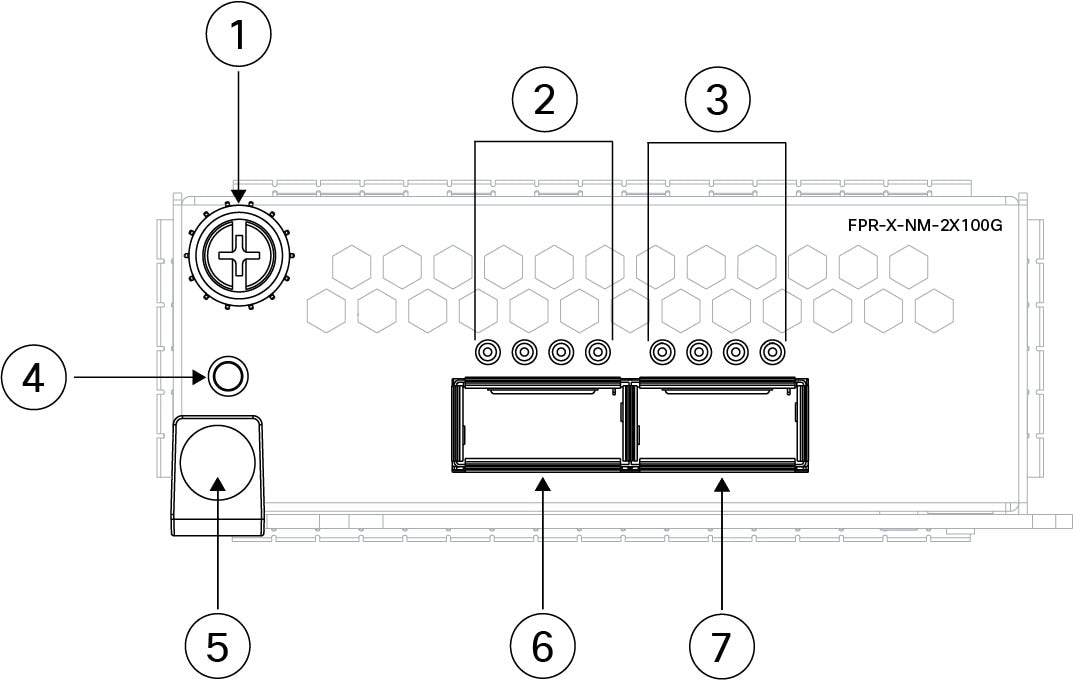

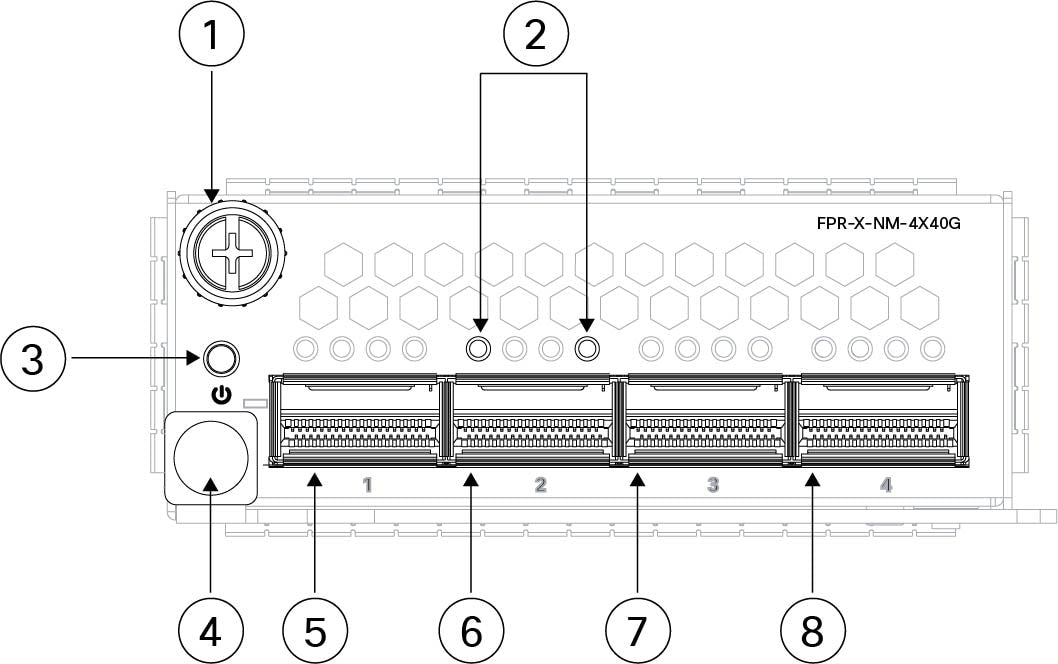

Photo is for illustration purposes only. Actual product may be different.
$20,556.82
$20,556.82
Sale Sold out
MSRP: $30,150.00
Shipping calculated at checkout.
  • 6 ports of 10-Gigabit Ethernet via SFP interface
  • LR-Singlemode fiber support for long-range, high-speed connectivity
  • Plug-in module form factor for easy deployment
  • Wired connectivity for high data throughput and reliability
  • Designed specifically for Cisco Secure Firewall 4200
  • TAA-compliant and manufactured in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Purpose-built for Cisco Secure Firewall 4200 ensures seamless integration and optimized performance
  • High-speed 10 Gbps SFP ports with LR-Singlemode fiber meet enterprise data and distance needs
  • TAA compliance qualifies the unit for government and federally funded installations

Product Overview

The Cisco FPR4K-XNM-6X10LRF is an advanced network module designed for the Cisco Secure Firewall 4200, offering six 10-Gigabit SFP ports with support for LR-Singlemode fiber. With a plug-in form factor and wired connectivity, it enables high-speed, long-distance routing in security-intensive environments. The module is TAA-compliant, manufactured in Mexico, and ensures robust performance and compatibility with enterprise Cisco firewall systems.

Specifications

Product Overview
Product Type Network Module
Form Factor Plug-In Module
For Use With Cisco Secure Firewall 4200
Features LR-Singlemode
Connectivity Technology Wired
Power Requirements Powered by host device
Weight 1.43 lbs (approx.)
Module Type Expansion Network Module

Physical & Environmental
Dimensions (W x D x H) 1.75 x 8.7 x 7.3 in
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Cooling Method Passive (via host chassis airflow)

Cloud Management & Licensing
Cloud Managed Through Cisco Secure Firewall Management Center (FMC)
Management Interface Cisco FXOS
Supported Licensing Model Smart Licensing (Cisco Smart Licensing Enabled)

Interfaces
Interface Type SFP+
Port Count 6
Port Type 10-Gigabit SFP+
Data Transfer Rate 10 Gbps per port
Total Aggregate Throughput 60 Gbps (aggregate)
Supported Media Type Fiber
Optical Mode Single-mode
Wavelength 1310 nm
Interface Protocol Gigabit Ethernet
Hot-Swappable Ports Yes

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
UL Listed Yes
EMC Standards FCC Part 15 Class A
Safety Compliance IEC/EN/UL 60950-1

Advanced Security Features
Firewall Integration Cisco Secure Firewall 4200 Series compatibility
Security Application Support Allows IPS, VPN Termination, Threat Detection via host system
Encryption Support Through host system; module enables encrypted traffic inspection
Intrusion Detection/Prevention Supported via Secure Firewall software stack
