| Product Type | Hyperconverged Infrastructure Node |
| Form Factor | 1U Rack-mountable |
| Processor Support | Up to 2 x 3rd Gen Intel Xeon Scalable Processors |
| Maximum Processor Cores | Up to 40 cores per processor |
| Maximum Memory | 4 TB DDR4 at 3200 MHz using RDIMMs or LRDIMMs |
| Memory Slots | 32 DIMM slots |
| Storage Options | Up to 10 x 2.5-inch drives (NVMe or SAS/SATA) |
| Boot Drive Options | M.2 SATA/NVMe RAID 1 or SATADOM |
| Power Supply | Single or dual 1050W or 1600W (optional redundancy) |
| Weight (Maximum) | 42 lbs (19 kg) |

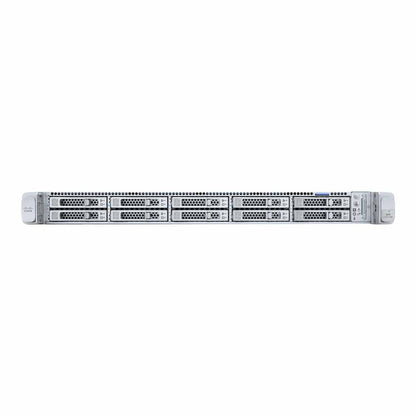

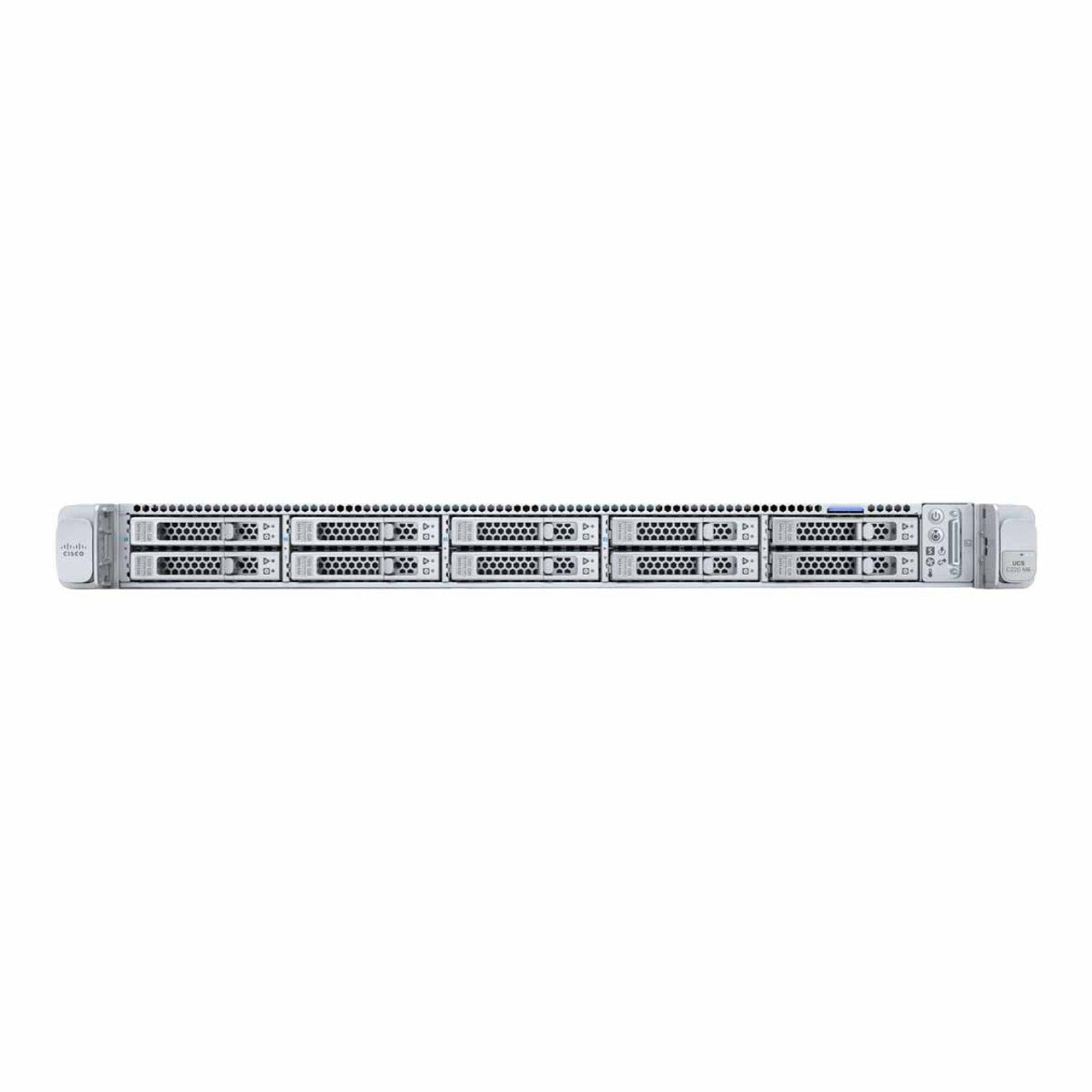

Cisco HyperFlex HX220c Express M6 Node
Photo is for illustration purposes only. Actual product may be different.
Regular price
$9,029.32
Regular price
Sale price
$9,029.32
Unit price
per
MSRP: $16,329.24
Shipping calculated at checkout.
Couldn't load pickup availability
- TAA-compliant for use in government procurement environments
- Manufactured in China and the United States
- Belongs to Cisco’s HyperFlex system line for hyperconverged infrastructure
- Optimized for enterprise-grade deployments
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for government and regulated industries due to its TAA compliance.
- Part of Cisco’s HyperFlex family, a trusted name in hyperconverged infrastructure.
- Designed for scalable, efficient data center deployment with strong brand reliability.
Product Overview
The Cisco HyperFlex HX220c Express M6 Node is an enterprise-grade node optimized for hyperconverged infrastructure (HCI). It integrates compute, storage, and networking for flexible deployment. Built with TAA compliance, it's suitable for government-regulated sectors. Manufactured in China and the United States, it supports performance-critical environments and simplifies infrastructure management for hybrid cloud strategies.
Specifications
Product Overview
Wireless Features
| Wireless Capability |
Compliance & Origin
| TAA Compliance | Yes |
| Country of Origin | China / United States |
| Regulatory Compliance | UL, CSA, CE, FCC Class A, RoHS, ICES |
| Environmental Standards | RoHS, WEEE |
Advanced Security Features
| Secure Boot | Yes (via UEFI BIOS) |
| TPM Support | TPM 2.0 supported |
| Hardware Root of Trust | Yes |
| Drive Encryption | Self-Encrypting Drives (SED) supported |
| Chassis Intrusion Detection | Supported via Cisco IMC |
Interfaces
| Front Drive Bays | Up to 10 x 2.5-inch drives (NVMe or SAS/SATA) |
| MLOM Slot | 1 x Modular LAN On Motherboard (MLOM) slot |
| PCIe Slots | 2 x PCIe Gen4 slots |
| USB Ports | 2 x USB 3.0 front, 2 x USB 3.0 rear |
| VGA Ports | 1 x front, 1 x rear |
| Serial Port | 1 x RJ45 (rear) |
| Dedicated Management Port | 1 x 1GbE RJ45 |
Physical & Environmental
| Dimensions (H x W x D) | 1.7 in x 16.9 in x 29.8 in (43.2 x 429.3 x 757 mm) |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Operating Relative Humidity | 10% to 90% (noncondensing) |
| Non-operating Humidity | 5% to 93% (noncondensing) |
| Acoustic Noise | 65 dB (typical) |
| Cooling | Redundant hot-swappable fans |
Cloud Management & Licensing
| Management Interface | Cisco Intersight and Cisco UCS Manager |
| Cloud Integration | Supports Cisco Intersight cloud-based management |
| Licensing Model | Cisco Smart Licensing for HyperFlex software |
| Included Hypervisor | VMware vSphere (license sold separately) |
| Cluster Support | Yes, part of Cisco HyperFlex clusters |
