CISCO IBM 32G 48-Port SFP Module for Modular Directors

VENDOR: CISCO Mfg Part#: 01FT643
1 2

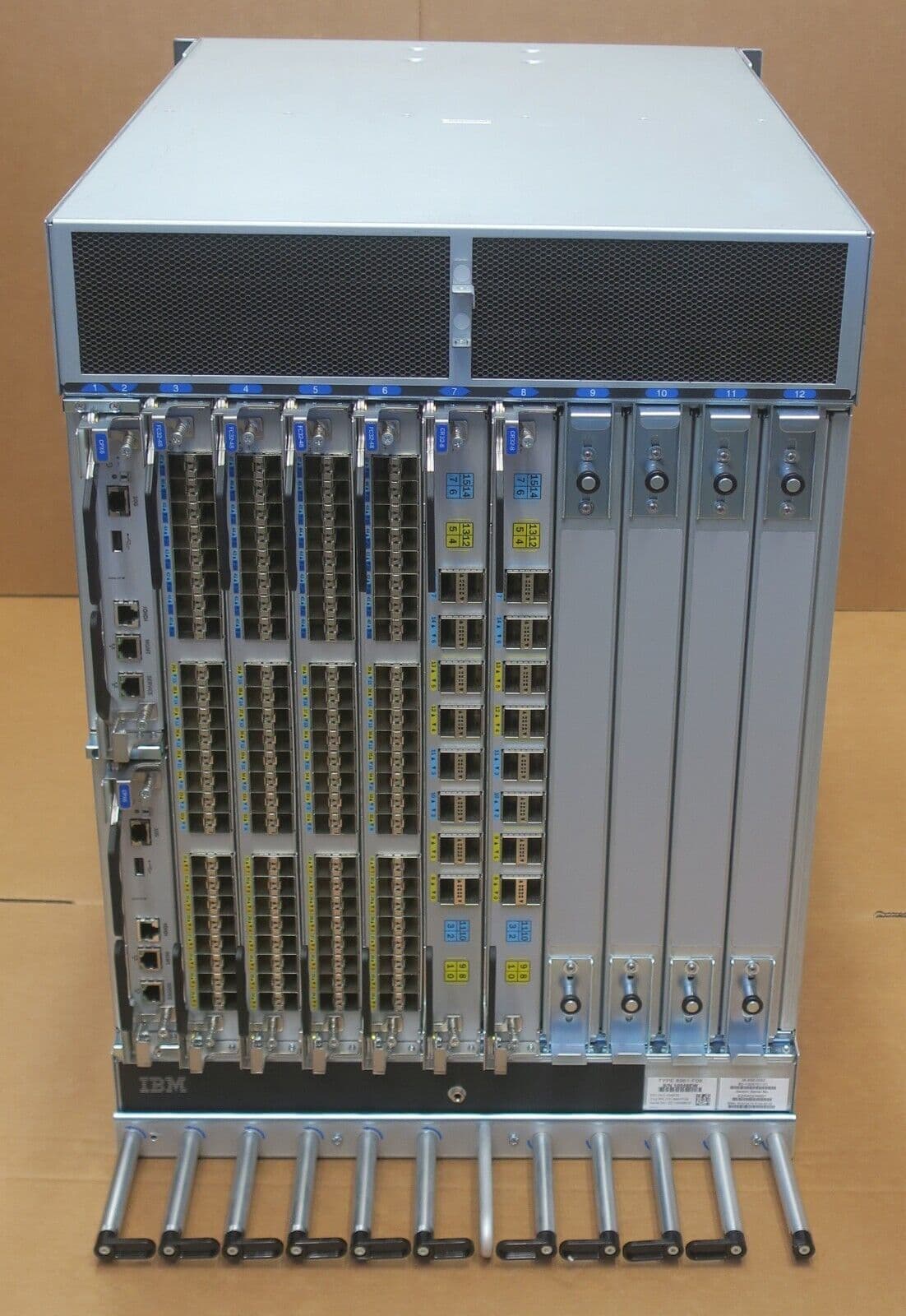

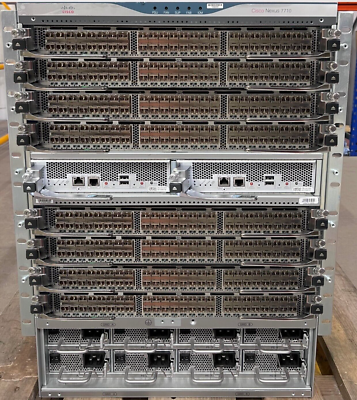

Photo is for illustration purposes only. Actual product may be different.
$36,764.67
$36,764.67
Sale Sold out
MSRP: $110,949.64
Shipping calculated at checkout.
  • 48-port SFP plug-in module for modular directors
  • Supports data transfer rate of 32 Gbps
  • SFP interface type with 48x16G SFP support
  • Gigabit Ethernet transport and data link protocol
  • Wired connectivity technology for stable performance
  • TAA compliant and manufactured in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High port density with 48 16G SFP ports supports large-scale deployments and future scalability.
  • 32 Gbps bandwidth enables high-throughput network performance for demanding applications.
  • Compliance with TAA standards ensures suitability for government and regulated industry use.

Product Overview

The CISCO IBM 32G 48-Port module is engineered for modular director-class networking, offering 48 SFP connections supporting up to 16G each. Its plug-in form factor enables seamless integration and scalability. Operating at 32 Gbps with Gigabit Ethernet protocols, it supports reliable, high-speed data transmission. This TAA-compliant module is manufactured in Mexico and built for enterprise and regulated environments, ensuring dependable functionality and long-term performance. Its SFP interface provides flexibility for easy upgrades and maintenance, making it ideal for modern data centers.

Specifications

Product Overview
Product Type Network Module
Manufacturer Part Number 01FT643
Form Factor Plug-In Module
Module Type IBM 32G 48-Port Module
Intended Application Modular Director-Class Networking
Connectivity Technology Wired
Hot-Swappable Yes
Compatibility Cisco and IBM Modular Directors
Weight 2.6 kg
Power Requirement Approx. 55W (typical)

Physical & Environmental
Dimensions (H × W × D) 3.86 × 14.75 × 16.3 in (98 × 374.6 × 414 mm)
Weight 2.6 kg
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
MTBF (Mean Time Between Failures) Over 500,000 hours

Cloud Management & Licensing
Remote Management Via IBM SAN Director Software
Licensing Required Yes, per-port activation licenses
Management Interface CLI and Web GUI via director chassis
Monitoring Features Port status, traffic statistics, error logs
Supported Management Protocols SNMP, HTTP/HTTPS, Telnet, SSH

Interfaces
Interface Type SFP
Number of Ports 48
Port Type 16G SFP or SFP+
Port Speed Up to 32 Gbps
Data Transfer Rate per Port 32 Gbps
Total Aggregate Bandwidth 768 Gbps (48 ports × 16 Gbps max typical)
Data Link Protocol Gigabit Ethernet
Transmission Standard Fibre Channel
Transport Protocol Gigabit Ethernet

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
EMC Compliance FCC Part 15 Class A, EN55032 Class A
Safety Standards UL 60950-1, IEC 60950-1
Certifications CE, UL, TUV, CSA, VCCI, C-Tick

Advanced Security Features
Authentication Port-level security and user access control
Access Control Role-Based Access Control (RBAC)
Data Isolation Zoning and LUN masking (via SAN Director)
Digital Certificate Support X.509 Certificates
