Cisco IBM SAN16C-R 32G Extension Switch, 4x32G FC, 2x1G FCIP, 1RU

VENDOR: CISCO Mfg Part#: 03FR027
  • IBM Storage Networking SAN16C-R is a high-performance extension switch designed for modern enterprise fabric infrastructure. With 4x32G FC and 2x1G FCIP ports, it supports secure and accelerated data transport across remote sites. Management features include SSH, SNMPv3, HTTP/HTTPS, and encryption via AES, making it a robust solution for scalable workload mobility.
1 1

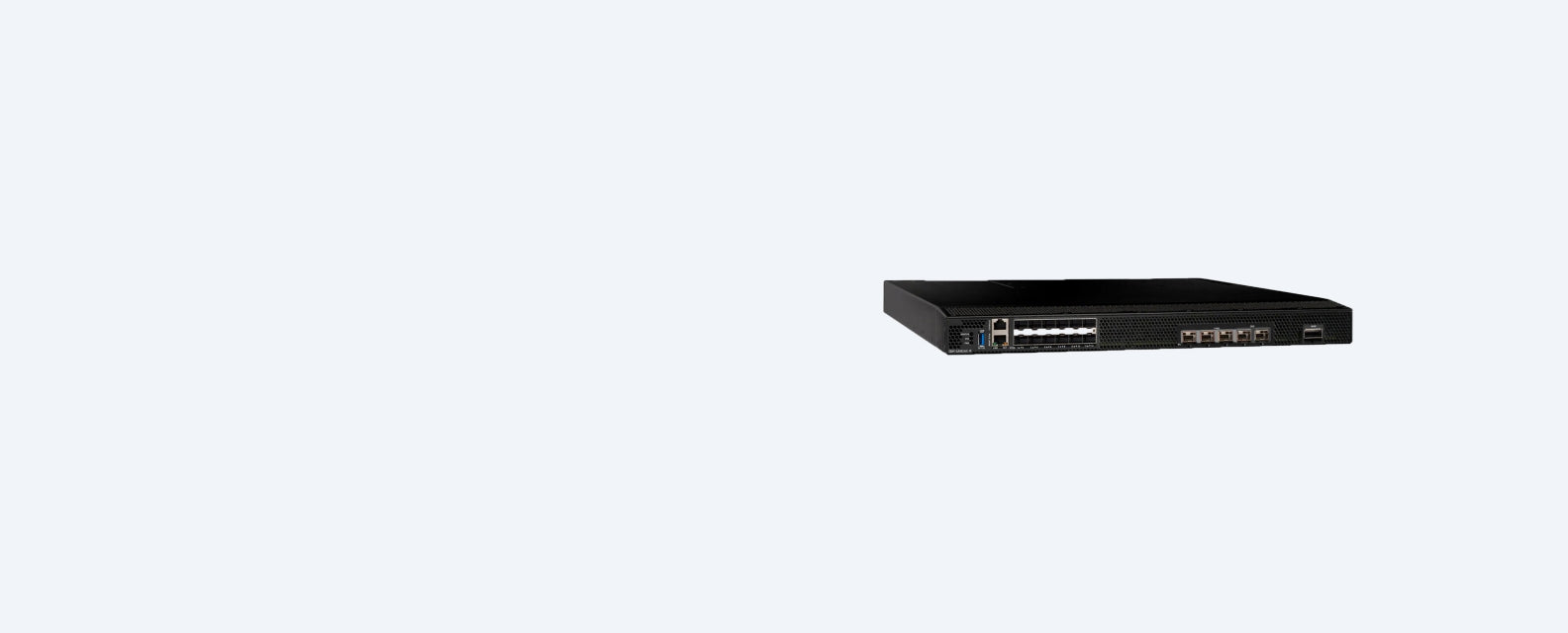

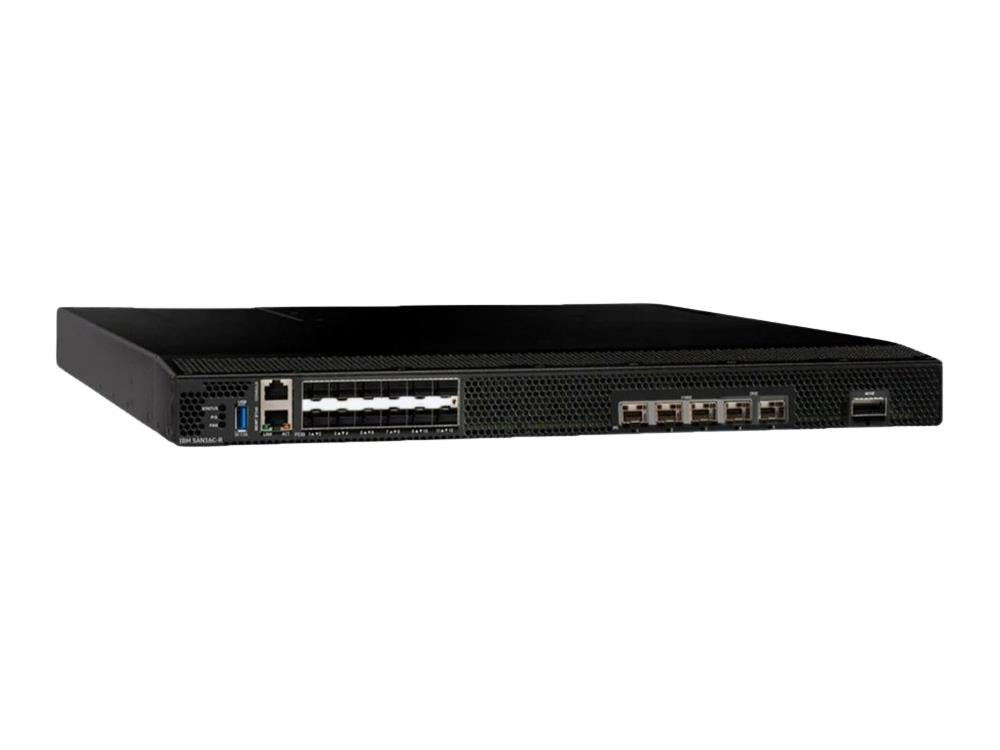

Photo is for illustration purposes only. Actual product may be different.
$19,311.45
$19,311.45
Sale Sold out
MSRP: $28,089.38
Shipping calculated at checkout.
  • 1RU form factor with 4x32G FC and 2x1G FCIP interfaces
  • 32Gbps high-speed data transfer capability
  • Remote management via SSH, SNMPv3, HTTP/HTTPS
  • Advanced AES encryption and RADIUS/TACACS+ authentication
  • IPv6 routing protocol support and Inter-VSAN Routing (IVR)
  • Redundant power systems and TAA compliance
View full details

Key Benefits

Eye-Insights
  • Delivers secure, high-throughput SAN extension for enterprise and remote site connectivity
  • Offers comprehensive protocol and interface support with strong manageability and encryption features
  • TAA compliance and IBM support make it ideal for government and regulated industry environments

Product Overview

The Cisco IBM SAN16C-R 32G Extension Switch is engineered for high-throughput and secure enterprise SAN environments. Housed in a compact 1RU chassis, this extension switch offers versatile connectivity with 4x32G Fibre Channel (FC) and 2x1G Fibre Channel over IP (FCIP) ports, complemented by Gigabit Ethernet, RS-232, and USB interfaces. With a data transfer rate of 32 Gbps and support for Inter-VSAN Routing (IVR), this switch is ideal for data replication and disaster recovery across remote data centers.

Management is simplified through support for SSH, SNMPv3, HTTP, and HTTPS, while advanced data security is enforced with AES encryption and RADIUS and TACACS+ authentication. Dual power supplies and a rugged operating range of 0°C to 40°C ensure enterprise-grade resilience. The switch is TAA-compliant and supported by IBM service options, with IPv6 protocol support ensuring future-proof network integration.

Specifications

Primary Information
Network Device Type Switch
Model SAN16C-R
Form Factor 1RU
Power / Device Type Power Supply
Connectivity Technology Wired
Data Transfer Rate 32 Gbps
Data Link Protocol Gigabit Ethernet
Power / Installed Qty 2
Features Inter-VSAN Routing (IVR); FCIP for remote SAN extension; Mainframe support; Advanced traffic management; Ease of management; Comprehensive solution for robust network security; Advanced diagnostics and troubleshooting tools; Advanced software packages

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
COO MEXICO
TAA compliance Yes
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
Remote Management Protocol SSH; SNMP 3; HTTP; HTTPS
Routing Protocol IPv6
Encryption Algorithm AES
Authentication Method RADIUS and TACACS+
Interfaces 4x32G FC and 2x1G FCIP, Ethernet port, RS-232 port, USB port

Service&Support
Service & Support Type One-year, customer-replaceable unit (CRU), IBM On-Site Limited, 9x5 Next Business Day; 24×7 same-day maintenance service options are available

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 20.11 Inch
Height 1.72 Inch
Weight 9.8 Kg

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 4x32G FC and 2x1G FCIP, Ethernet port, RS-232 port, USB port
