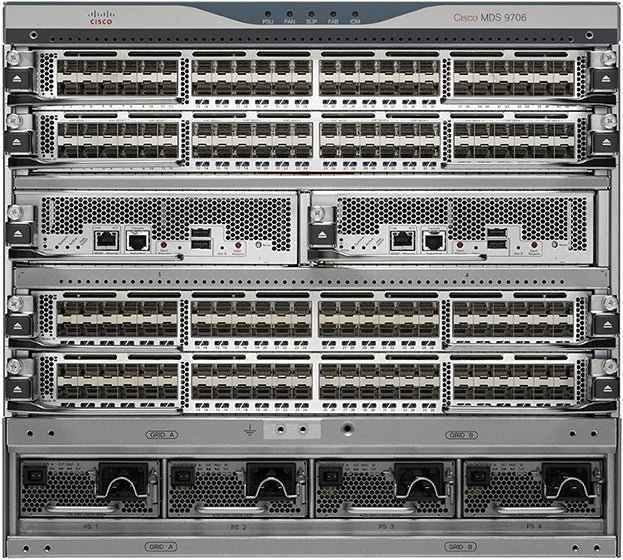

CISCO IBM SAN192C-6 32G Modular FC Switch, 4 Payload Slots

VENDOR: CISCO Mfg Part#: 01FT566
1 1
Photo is for illustration purposes only. Actual product may be different.
$39,443.28
$39,443.28
Sale Sold out
MSRP: $119,033.22
Shipping calculated at checkout.
  • 48-Port 32-Gbps Fibre Channel interface for high-speed SAN connectivity
  • Modular design with 4 payload slots for scalable expansion
  • Supports AES encryption and RADIUS/TACACS+ for secure access controls
  • SNMP and SSH remote management protocol support
  • Operates within 0 to 40°C range with LED status indicators
  • TAA compliant and manufactured in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers 32 Gbps Fibre Channel throughput for demanding enterprise storage networks
  • Scalable modular design ensures future-proofing and investment protection
  • Robust security and remote management protocols enhance enterprise IT control

Product Overview

The CISCO IBM SAN192C-6 is a high-performance modular Fibre Channel switch delivering 32 Gbps across 48 FC ports, ideal for modern SAN environments. Its 4 payload slots support flexible growth, and integrated security features like AES encryption with RADIUS/TACACS+ authentication protect critical data. Engineered for enterprise-grade reliability, this TAA-compliant switch supports remote management via SNMP and SSH, operates across a wide temperature range, and is equipped with LED indicators for local diagnostics. Backed by a one-year support service, organizations benefit from operational continuity and strong ROI.

Specifications

Product Overview
Type Modular Fibre Channel Switch
Part Number 01FT566
Model Name SAN192C-6
Manufacturer Cisco
Form Factor Rack-mountable - 2U
Weight 7.94 kg
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Included Slots 4 Payload Slots
Service & Support 1 Year

Cloud Management & Licensing
Management Interface SNMP
Management Interface SSH
Cloud Management Supported via Cisco DCNM (optional license)
Licensing Requirement Cisco MDS Enterprise or DCNM license (optional)

Physical & Environmental
Width 15.9 in
Depth 21.8 in
Height 1.75 in
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 40 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 70 °C
Relative Humidity (Operational) 10% to 85% (non-condensing)
Relative Humidity (Storage) 5% to 95% (non-condensing)
Altitude (Operating) Up to 3,000 m

Interfaces
Total Ports 48
Port Type 32-Gbps Fibre Channel
Data Transfer Rate 32 Gbps
Data Link Protocol 32Gb Fibre Channel
Status Indicators LED

Advanced Security Features
Encryption Algorithm AES
Authentication Method RADIUS
Authentication Method TACACS+
Access Control Role-Based Access Control (RBAC)
Secure Management SSH, SNMPv3
Fibre Channel Security DH-CHAP authentication

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL, CSA, CE, RoHS, FCC Part 15 Class A, VCCI
Compliance Standards IEC 60950-1, EN 60950-1
