Products Networking Switches CISCO IBM SAN24C-7 64G 24-P...

CISCO IBM SAN24C-7 64G 24-Port FC Fabric Switch with 24 64G Optics

VENDOR: CISCO Mfg Part#: 03FR187
  • The IBM SAN24C-7 64G Fibre Channel switch is a compact yet high-performance networking solution optimized for high-speed connectivity and enterprise storage networking. Featuring 24 FC ports and bundled with 24 64G optics, it supports superior bandwidth and rich interface options in a 1RU form factor.
1 1

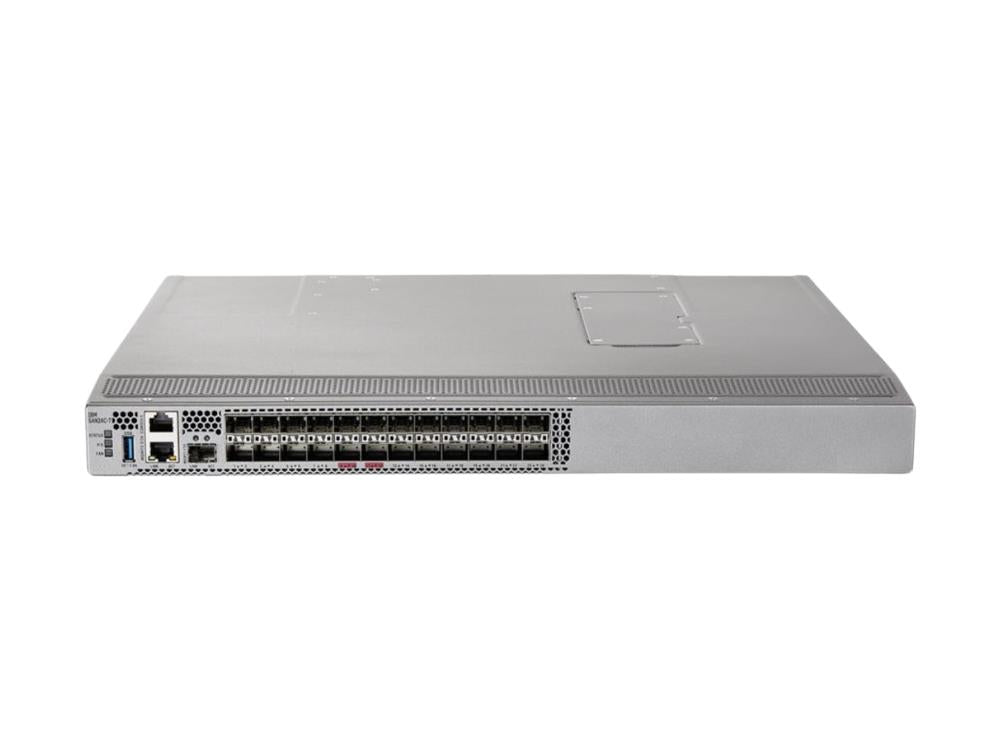

Photo is for illustration purposes only. Actual product may be different.
$49,956.15
$49,956.15
Sale Sold out
MSRP: $49,956.16
Shipping calculated at checkout.
  • 64 Gbps data transfer rate per port for high-speed networking
  • Includes 24 Fibre Channel ports with pre-installed 64G optics
  • Compact 1RU rack-mount design suitable for data center deployments
  • Multiple connectivity options: Fibre Channel, Ethernet (2x 10/100/1000BASE-T), USB, RS-232
  • Secure-boot and anti-counterfeiting technology for enhanced hardware security
  • Operating temperature range of 0°C to 40°C with storage support from -40°C to 70°C
View full details

Key Benefits

Eye-Insights
  • Delivers ultra-high-speed 64 Gbps throughput, ideal for performance-focused SAN environments
  • Includes 24 64G optics by default, reducing initial deployment costs and setup complexity
  • Compliant with TAA and built for secure, enterprise-grade networking with anti-counterfeit protection

Product Overview

The CISCO IBM SAN24C-7 is a high-performance Fibre Channel Fabric Switch delivering 64 Gbps port throughput across 24 ports, bundled with 24 64G optics. This 1RU-form-factor device is tailored for enterprise storage networks requiring high efficiency and compact deployment. Featuring multiple interface options, including Fibre Channel, Ethernet, USB, and RS-232, it combines flexibility and security, integrating secure-boot and anti-counterfeiting technology. Built in a TAA-compliant facility in Mexico, it ensures reliability under varied operating conditions (0°C to 40°C), enabling robust SAN performance and scalability.

Specifications

Primary Information
Network Device Type Switch
Model SAN24C-7
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 64 Gbps
Networking / Ports Qty 28
Data Link Protocol Gigabit Ethernet
Power / Device Type Power Supply
Features Secure-boot and anti-counterfeiting technology; Fully integrated SAN analytics; Dynamic Ingress Rate Limiting; Intelligent services; Sophisticated diagnostics tools; Buffer-to-Buffer State Change Notification

Interfaces / Ports
Interfaces Fibre Channel , 10/100/1000 Ethernet port, RS-232 port, USB port
10/100/1000BASE-T Ports 2

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO MEXICO
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
10/100/1000BASE-T Ports 2
Interfaces Fibre Channel , 10/100/1000 Ethernet port, RS-232 port, USB port

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 18 Inch
Height 1.72 Inch
Weight 8.5 Kg

UNSPSC Code
UNSPSC Code 43222612
