Cisco IBM SAN384C-6 32G Modular FC Switch, 8 Payload Slots

VENDOR: CISCO Mfg Part#: 01FT565
1 1

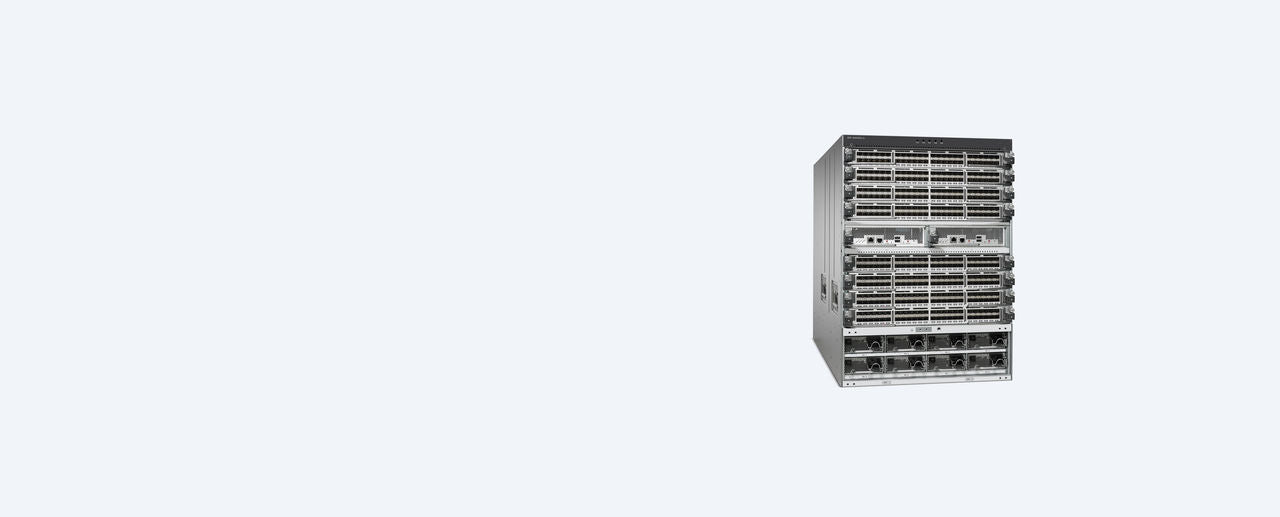

Photo is for illustration purposes only. Actual product may be different.
$61,399.70
$61,399.70
Sale Sold out
MSRP: $185,294.03
Shipping calculated at checkout.
  • 48-Port 32-Gbps Fibre Channel interfaces for high-speed data transfers
  • 8 modular payload slots for flexible system expansion
  • AES encryption and RADIUS/TACACS+ for secure network communications
  • Remote management support via SNMP and SSH
  • Supports wide input voltage: 100 to 240 VAC, 50 to 60 Hz
  • Operating temperature range: 0°C to 40°C; storage range: -40°C to 70°C

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers 32 Gbps Fibre Channel throughput across 48 ports, ideal for high-performance data centers
  • Modular architecture with 8 payload slots allows scalable growth aligned with changing infrastructure needs
  • Supports enterprise-grade security and manageability with AES encryption and remote access via SNMP and SSH

Product Overview

The Cisco IBM SAN384C-6 is a modular Fibre Channel switch engineered for high-capacity enterprise storage networking. Supporting a data transfer rate of up to 32 Gbps over 48 Fibre Channel ports, this switch is ideal for cloud workloads and big data analytics. Its 8 payload slots enhance scalability for dynamic SAN configurations.

Equipped with remote management via SNMP and SSH, AES encryption, and RADIUS/TACACS+ authentication, it ensures secure operations. The switch includes LED indicators, hot-swappable power support, and maintains reliability over a temperature range of 0°C to 40°C.

With a compact 1.75-inch height and TAA compliance, the SAN384C-6 aligns with government and enterprise standards. Assembled in Mexico and backed by a one-year support plan, it delivers strong ROI and future-proofing for data-driven infrastructure.

Specifications

Product Overview
Product Type Modular Fibre Channel Switch
Form Factor 1U Rack-mountable
Number of Payload Slots 8
Weight 7.94 kg
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Service & Support 1-year limited warranty
Redundancy Supported (hot-swappable power)

Cloud Management & Licensing
Remote Management Protocols SNMP, SSH
Management Interface Cisco DCNM (Data Center Network Manager)
Management Access CLI, SNMP v1/v2/v3, SSH
Licensing Model Subscription and perpetual options

Physical & Environmental
Height 1.75 inches (1U)
Width 15.9 inches
Depth 21.8 inches
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -40°C to 70°C
Relative Humidity (Operating) 10% to 90%, non-condensing
Relative Humidity (Storage) 5% to 95%, non-condensing
Cooling Front-to-back and back-to-front airflow options
Airflow Redundant variable-speed fans
Noise Level Typical 58 dBA (at 40°C)

Interfaces
Total Ports 48
Port Type 32-Gbps Fibre Channel
Data Transfer Rate Up to 32 Gbps per port
Data Link Protocol 32Gb Fibre Channel
Port Expansion Modular with 8 Payload Slots
LED Indicators Yes

Advanced Security Features
Encryption AES
Authentication Methods RADIUS, TACACS+
Access Control Role-based access control
Secure Management SSH, SNMPv3

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
Certification UL, CE, FCC Class A, VCCI
Safety & Emissions CSA, IEC/EN 60950-1
