Cisco IBM SAN48C-6 48-Port 32G FC Switch + 24 Optics

VENDOR: CISCO Mfg Part#: 02JD727
1 3

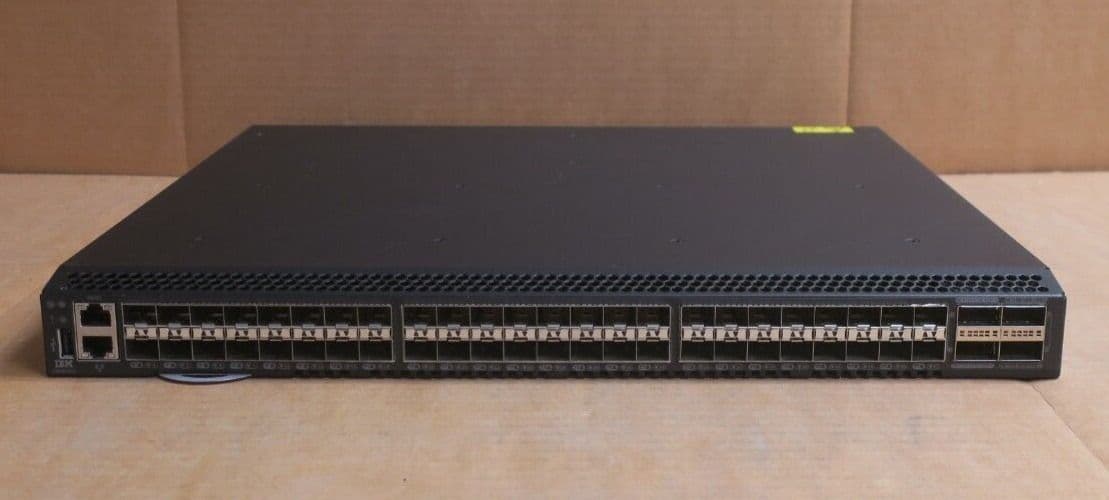

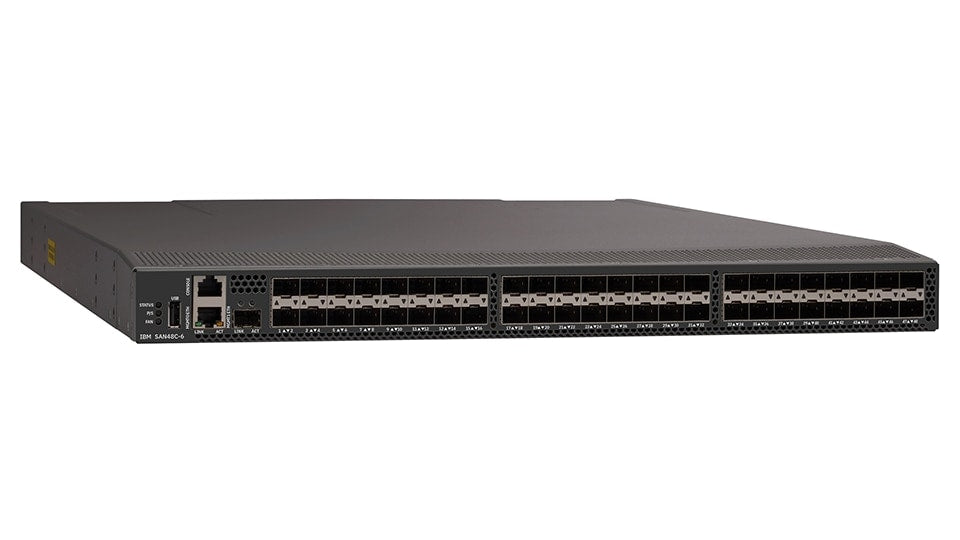

Photo is for illustration purposes only. Actual product may be different.
$10,880.36
$10,880.36
Sale Sold out
MSRP: $32,835.12
Shipping calculated at checkout.
  • 48 Fibre Channel ports with up to 32 Gbps throughput
  • Includes 24 pre-installed 32G optics
  • 1RU rack-mount form factor for space efficiency
  • Interfaces: Fibre Channel, RJ-45, RS-232, USB
  • Remote management via SNMP with LED indicators
  • 650W power supply with 100–240 VAC input range

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-fast SAN throughput with 32 Gbps Fibre Channel ports, optimizing enterprise storage performance.
  • Includes 24 high-speed 32G optics, minimizing setup time and reducing additional hardware costs.
  • Compact 1RU design allows for high port density without sacrificing rack space in data centers.

Product Overview

The Cisco IBM SAN48C-6 is a robust 48-port Fibre Channel fabric switch engineered for high-performance SAN deployments. It includes 24 pre-installed 32G optics and supports data transfer rates up to 32 Gbps, enabling fast, low-latency connectivity. Designed in a compact 1RU form factor, it integrates easily into dense data center environments. This switch features Fibre Channel, RJ-45, RS-232, and USB interfaces, along with SNMP-based remote management and LED indicators for device status. With a 650W universal power supply and an operating range of 0–40°C, it offers dependable performance backed by TAA compliance and solid construction.

Specifications

Product Overview
Manufacturer CISCO
Model SAN48C-6
Manufacturer Part Number 02JD727
Product Type Fibre Channel Fabric Switch
Form Factor 1RU
Connectivity Technology Wired
Device Weight 24.8 lbs (11.25 kg)
Power Supply Type Internal, Universal AC
Power Provided 650 Watt
Voltage Required 100 to 240 VAC

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, CSA, CE Mark, FCC Part 15 Class A

Advanced Security Features
Role-Based Access Control (RBAC) Yes
Secure Boot Yes
AAA Support RADIUS, TACACS+
Encrypted Management Access SSHv2, HTTPS
Port Security Yes, Fabric binding and Port Security
Fabric Isolation Yes
Traffic Isolation Zoning, VSANs

Interfaces
Total Ports 48 active + 4 upgrade ports (total 52)
Interface Types Fibre Channel, RJ-45, RS-232, USB
Fibre Channel Ports 48 SFP+ 32G Fibre Channel ports
Upgrade Ports 4 QSFP Fibre Channel ports (upgradeable)
Included Optics 24 pre-installed 32G optics
Data Transfer Rate Per Port Up to 32 Gbps
Aggregate Bandwidth Up to 2.56 Tbps
Console Ports 1 x RS-232 serial console
Management Port 1 x RJ-45 10/100/1000 Ethernet
USB Ports 1 x USB Type A for file management

Physical & Environmental
Width 17.3 inches (439.42 mm)
Depth 22.3 inches (566.42 mm)
Height 1.72 inches (43.7 mm)
Minimum Operating Temperature 0°C (32°F)
Maximum Operating Temperature 40°C (104°F)
Minimum Storage Temperature -40°C (-40°F)
Maximum Storage Temperature 70°C (158°F)
Operating Humidity Range 10% to 90% non-condensing
Non-Operating Humidity Range 5% to 95% non-condensing
Cooling Front-to-back airflow with redundant fans
Mounting Type Rack-mountable

Cloud Management & Licensing
Remote Management SNMP v1/v2/v3, CLI, HTTPS
Management Interface Cisco NX-OS software
Syslog Support Yes
Included Licensing Port activation licenses for 24 ports
Optional Licensing Additional port licenses; Enterprise Software Pack licenses
