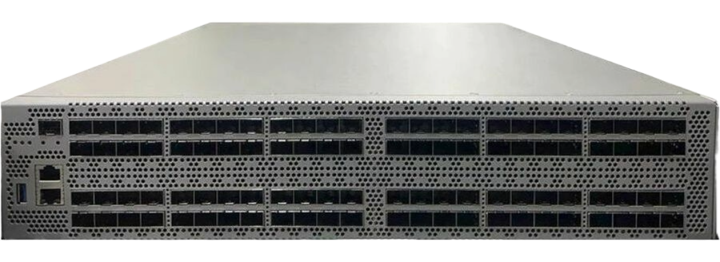

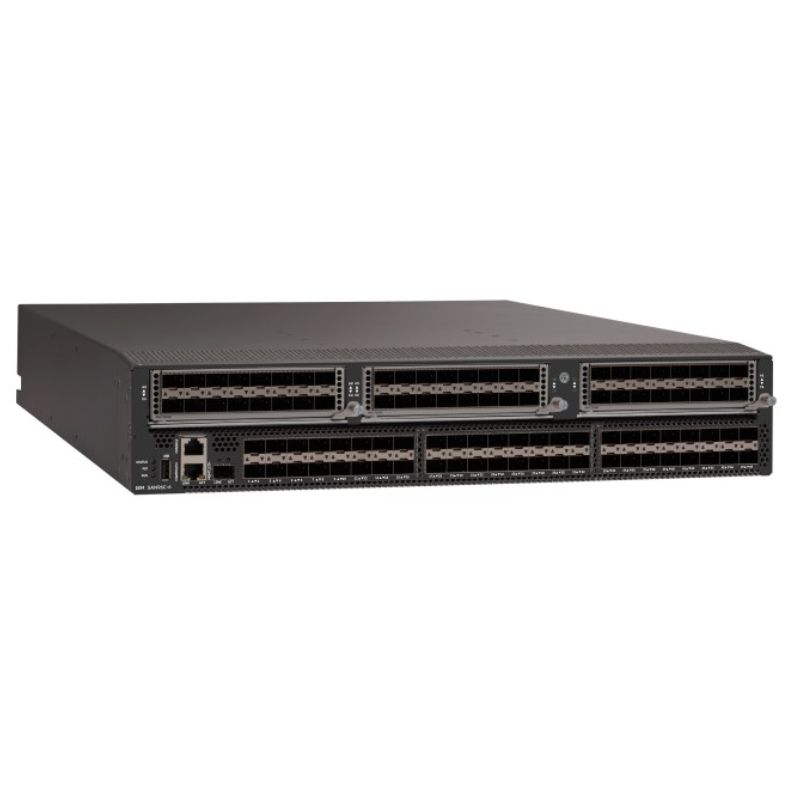

Cisco IBM SAN96C-6 32G 96-Port FC Switch with 96 SFP+ Optics

VENDOR: CISCO Mfg Part#: 02JD733
1 2
Photo is for illustration purposes only. Actual product may be different.
$68,726.33
$68,726.33
Sale Sold out
MSRP: $207,404.58
Shipping calculated at checkout.
  • - 96 SFP+ ports supporting 32 Gbps data transfer rates
  • - 1RU form factor for dense deployment
  • - Fibre Channel and Ethernet interfaces including USB and RS-232
  • - Remote management via SSH, SNMP v3, and HTTPS
  • - AES encryption with RADIUS and TACACS+ authentication
  • - 600W power supply with dual-voltage AC support (100–240V)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-fast 32 Gbps throughput across 96 SFP+ ports, ideal for enterprise SAN performance.
  • Advanced management and security features such as SSH, SNMP v3, AES encryption, and RADIUS/TACACS+ ensure safe and flexible operation.
  • TAA-compliance and compact 1RU design make it suitable for federal or space-limited data centers.

Product Overview

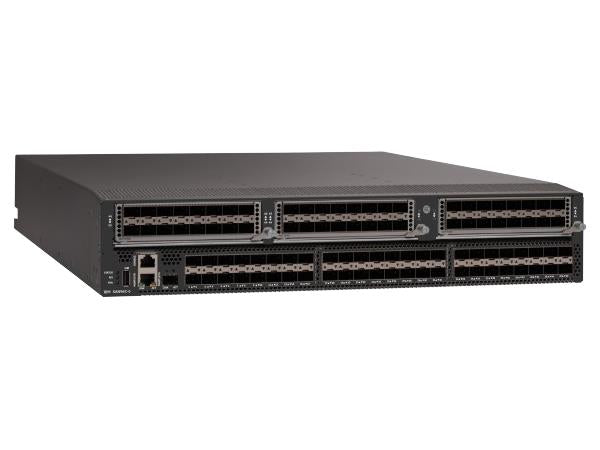

The Cisco IBM SAN96C-6 is a purpose-built 96-port Fibre Channel fabric switch engineered to meet the high-bandwidth, low-latency needs of enterprise SAN environments. Featuring 96 SFP+ ports with 32 Gbps throughput capability, this switch delivers high-speed performance and supports future-proof storage networking. Its 1RU rack-mountable form factor allows for efficient space utilization.

With diverse connectivity options including Fibre Channel, 10/100/1000 Ethernet, RS-232, and USB, and secure remote management via SSH, SNMP v3, and HTTPS, it integrates easily into current infrastructures. Security is enhanced through AES encryption and support for RADIUS and TACACS+. Other features include 600W power supply support, real-time LED diagnostics, and TAA compliance, ensuring suitability for mission-critical environments.

Specifications

Product Overview
Manufacturer Cisco
Product Name IBM SAN96C-6 32G 96-Port FC Switch with 96 SFP+ Optics
Model SAN96C-6
Type Fibre Channel Fabric Switch
Form Factor 1RU
Weight 24.25 lbs (11 kg)
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Power Supply 600W AC Power Supply
Power Over Ethernet (PoE) Support No
PoE Power Consumption N/A

Advanced Security Features
Encryption AES-256
Authentication Protocols RADIUS, TACACS+
Management Security Protocols SSH, SNMPv3, HTTPS
Role-Based Access Control (RBAC) Yes
Port Security Yes

Physical & Environmental
Width 17.3 in (439 mm)
Depth 22.3 in (566 mm)
Height 1.72 in (43.6 mm)
Operating Temperature Range 0° to 40°C
Storage Temperature Range -40° to 70°C
Operating Humidity Range 10% to 85% (non-condensing)
Storage Humidity Range 5% to 95% (non-condensing)
Cooling Front-to-rear air flow; redundant fans
Status Indicators LED Indicators for port and system status

Interfaces
Number of Fibre Channel Ports 96
SFP+ Ports 96
10/100/1000BASE-T Ethernet Ports 2
Management Ports 1 RS-232 Console, 1 USB, 1 Ethernet
Interface Types Fibre Channel, Ethernet, RS-232, USB
Port Speed 32 Gbps line rate on all Fibre Channel ports
Total Port Count 100
Data Transfer Rate 32 Gbps
Data Link Protocols Fibre Channel, Ethernet
Transceiver Support 96 SFP+ 32G Fibre Channel Optics Included

Cloud Management & Licensing
Management Interface CLI, HTTP/HTTPS Web Interface
Remote Management Protocols SSH, SNMPv3, HTTPS
Licensing Model Smart Licensing and Plug-n-Play (PnP) Supported
Management Software Support Cisco Data Center Network Manager (DCNM)

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Environmental Compliance RoHS, WEEE
Certifications FCC Class A, CE, RCM, VCCI, BSMI, UL/CSA 60950-1, IEC 60950-1
