Products Network Stuff Cisco IBM SAN96C-6 96-Port ...

Cisco IBM SAN96C-6 96-Port 32G FC Fabric Switch with 96 Optics

VENDOR: CISCO Mfg Part#: 02JD734
1 1

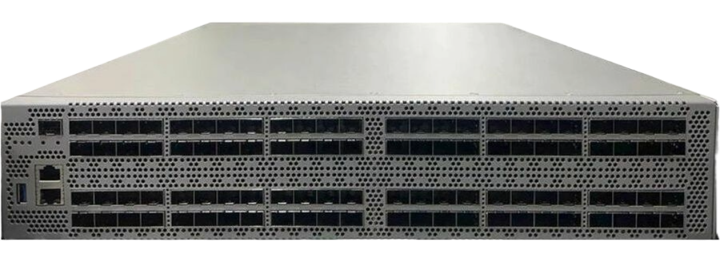

Photo is for illustration purposes only. Actual product may be different.
$68,726.33
$68,726.33
Sale Sold out
MSRP: $207,404.58
Shipping calculated at checkout.
  • 96 SFP+ ports with 32 Gbps Fibre Channel support
  • 1RU form factor for high-density deployments
  • Advanced remote management: SSH, SNMPv3, HTTPS
  • Security support: AES encryption, RADIUS, TACACS+
  • Interfaces: Fibre Channel, 10/100/1000 Ethernet, RS-232, USB
  • 600W power supply, 100–240 VAC input, LED status indicators

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise SAN environments requiring high port density and throughput
  • Fully TAA-compliant and manufactured in Mexico, suitable for government and compliance-sensitive deployments
  • Robust remote management and security protocols enhance secure, scalable operations

Product Overview

The Cisco IBM SAN96C-6 is a high-density 96-port Fibre Channel switch with 96 included 32G optics, engineered for enterprise SAN deployments. With a 32 Gbps data rate per port and next-generation ASIC performance, it delivers advanced switching capabilities in a space-saving 1RU form factor. The switch supports SSH, SNMPv3, and HTTPS remote management as well as RADIUS and TACACS+ authentication. It includes dual 10/100/1000 Ethernet ports, USB, and Fibre Channel interfaces, operates at 0–40°C, and uses a 600W power supply. As a TAA-compliant solution manufactured in Mexico, it's ideal for regulated industries and mission-critical environments.

Specifications

Product Overview
Product Type Fibre Channel Fabric Switch
Model SAN96C-6
Form Factor 1RU
Weight 23.38 lbs (10.6 kg)
Power Requirements 100 to 240 VAC
Power Supply 600W Redundant Hot-Swappable
Included Optics 96 x 32G SFP+ Fibre Channel Transceivers
Data Transfer Rate 32 Gbps per port
Connectivity Technology Wired
Network Device Type Switch
Switch Fabric Bandwidth 6.4 Tbps
Forwarding Rate 4.8 billion packets per second

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
RoHS Compliance Yes
Certifications UL, CSA, CE Marking, FCC Part 15 Class A, ICES-003, VCCI

Advanced Security Features
Encryption Algorithms AES-GCM-256
Authentication Support RADIUS, TACACS+
Role-Based Access Control (RBAC) Yes
Secure Boot and Signed Images Yes
FIPS Compliance FIPS 140-2 validated modules
Traffic Isolation Zoning and VSAN support
Access Control Lists (ACLs) Yes

Interfaces
Total Ports 100
Fibre Channel Ports 96 x 32G SFP+
Ethernet Management Ports 2 x 10/100/1000BASE-T
Console Port 1 x RS-232 (RJ-45)
USB Ports 1 x USB 2.0 Type-A
Data Link Protocol Gigabit Ethernet, Fibre Channel
Status Indicators Port status LEDs, system status LED

Physical & Environmental
Width 17.3 inches (439.42 mm)
Depth 22.3 inches (566.42 mm)
Height 1.72 inches (43.7 mm)
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity Range 5% to 85% non-condensing
Storage Humidity Range 5% to 95% non-condensing
Cooling Type Fan module (front-to-back or back-to-front airflow)

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, Cisco Data Center Network Manager (DCNM)
Remote Management Protocols SSH, SNMPv3, HTTPS
Authentication Methods RADIUS, TACACS+
Licensing Model Port activation license required for more than base licenses
Cloud Monitoring Support Via DCNM and Cisco SAN Insights
