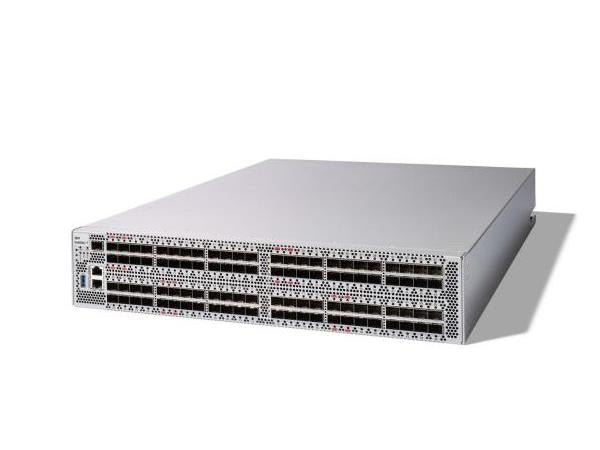

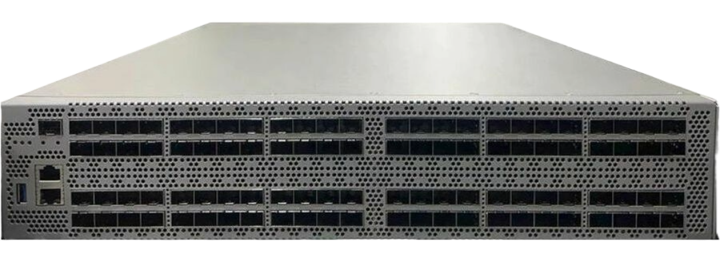

CISCO IBM SAN96C-7 64G 96-Port FC Fabric Switch PSI Base

VENDOR: CISCO Mfg Part#: 00NR265
1 2
Photo is for illustration purposes only. Actual product may be different.
$39,763.64
$39,763.64
Sale Sold out
MSRP: $120,000.00
Shipping calculated at checkout.
  • Supports up to 96 64 Gbps Fibre Channel ports
  • Data transfer rate of 64 Gbps for high-speed networking
  • 2RU rackmount form factor suitable for enterprise deployments
  • Supports Gigabit Ethernet data link protocol
  • VSAN capability for enhanced SAN segmentation and performance
  • TAA compliant for government procurement compatibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-density 96-port configuration supports large-scale SAN environments.
  • 64 Gbps data rate ensures maximized bandwidth in mission-critical applications.
  • VSAN feature enables better fabric segmentation and traffic optimization.

Product Overview

The Cisco IBM SAN96C-7 64G 96-Port Fibre Channel Fabric Switch is designed for enterprise-level storage networking performance, supporting 64 Gbps data transfer and up to 96 ports. Its 2RU rackmount design enables efficient space management, complemented by VSAN capabilities that enhance fabric optimization and traffic management. With TAA compliance and a focus on scalability, this switch is well-suited for complex and high-demand SAN environments. Measuring 17.4" x 23.9" x 3.4" and weighing 20 kg, it fits seamlessly into data center infrastructures.

Specifications

Product Overview
Manufacturer Cisco
Product Name Cisco IBM SAN96C-7 64G 96-Port FC Fabric Switch PSI Base
Model SAN96C-7
Manufacturer Part Number 00NR265
Category Switch
Form Factor 2RU
Weight 20 kg
Power Supply Dual redundant hot-swappable power supplies
Power Requirements AC 100-240V, 50-60Hz
Power Consumption (Max) Approx. 550 Watts

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, CE, FCC Class A, VCCI, BSMI, KC, EAC, RCM

Advanced Security Features
Authentication RADIUS, TACACS+, LDAP
Role-Based Access Control Yes
FIPS Compliance FIPS 140-2 Level 1 (in supported configurations)
Zoning Support Hardware-enforced zoning
Fabric Binding Supported

Interfaces
Total Ports 96
Port Type Fibre Channel
Port Speed 64 Gbps line-rate per port
Expansion Slots 3 module slots for 32-port line cards
Data Link Protocol Fibre Channel
Aggregate Throughput 6.4 Tbps
Port Buffering Up to 32 GB total buffer
Interface Standards SFP56, SFP28, SFP+
Autosensing per Port Supports 8/16/32/64 Gbps

Physical & Environmental
Width 17.4 in (442 mm)
Depth 23.9 in (607 mm)
Height 3.4 in (86 mm)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 10% to 95% (non-condensing)
Noise Level 62 dB (typical)
Mounting Type Rack-mountable

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, DCNM (Data Center Network Manager)
Supported Features VSAN, IVR, PortChannel, FSPF, NPIV
Cloud Management Tools Cisco Data Center Network Manager (DCNM)
Licensing Model Port activation licensing model
Base License Included PSI Base
Telemetry and Analytics Supported via SAN Insights and DCNM
