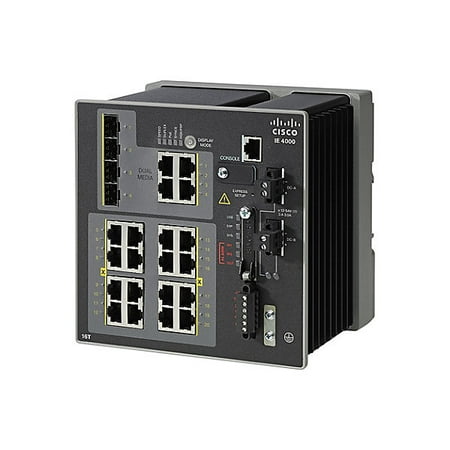

Cisco IE-4000-16T4G-E Industrial Managed Switch, 20-Port Gigabit

VENDOR: CISCO Mfg Part#: IE-4000-16T4G-E UPC#: 882658730757
  • IE 4000 16 X RJ45 10/100M, 4 X 1G COMBO
1 1
Photo is for illustration purposes only. Actual product may be different.
$4,802.59
$4,802.59
Sale Sold out
MSRP: $7,043.80
Shipping calculated at checkout.
  • 16 x RJ45 10/100M ports and 4 x 1G combo uplinks for flexible connectivity
  • Supports Layer 2 and Layer 3 protocols, including OSPF, BGPv4, IS-IS, and RIPv2
  • Built to operate in harsh environments: -40°C to 75°C, 9.6–60VDC input
  • Robust security: 802.1x, SNMPv3, TACACS+, RADIUS authentication
  • High memory capacity: 1GB RAM and 128MB flash for demanding applications
  • MAC address table size of 16,000 for scalable networking

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for industrial environments with extreme temperature tolerance and rugged build
  • Advanced network and security protocols make it suitable for complex and secure deployments
  • Backed by a five-year limited hardware warranty and high MTBF for long-term reliability

Product Overview

The Cisco IE-4000-16T4G-E is a high-reliability managed industrial Ethernet switch designed for modern industrial networks. With 16 RJ45 10/100M ports and 4 Gigabit combo uplinks, it supports Layer 2/3 protocols for high-performance applications. The switch is powered by 1GB RAM and 128MB flash memory, and handles advanced routing protocols like OSPF and BGPv4. It supports SNMPv3, SSH, and DHCP for secure remote management. With an operating temperature range of -40°C to 75°C and MTBF of 558,310 hours, it's ideal for mission-critical environments. Security features include 802.1x, TACACS+, and RADIUS, making it suitable for controlled access deployments. A five-year HW warranty and TAA compliance ensure long-term value and regulatory suitability.

Specifications

Product Overview
Product Type Industrial Managed Ethernet Switch
Model IE-4000-16T4G-E
Manufacturer Cisco
Form Factor DIN Rail Mountable
Weight 2.88 Kg
Power Requirements 9.6 to 60 VDC redundant input
Power Consumption (Operational) 35 Watt
Memory (RAM) 1 GB
Flash Memory 128 MB
MTBF 558310 hours
Service & Support Five-year limited hardware warranty

Cloud Management & Licensing
Remote Management Protocols SSH, SNMPv3, DHCP
Configuration Interface CLI and web-based GUI
Management Features Cisco IOS Software, Device Manager, Cisco Prime

Routing & Protocol Support
Routing Protocols OSPF, BGPv4, IS-IS, RIPv2
VLAN Support Yes (802.1Q)
Spanning Tree Protocols 802.1D, 802.1w, 802.1s
QoS Support 802.1p

Compliance & Origin
Country of Origin China / Mexico / United States
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL 60950-1, CE Mark, C-Tick, EN 61000-6-2, EN61000-6-4

Interfaces
Total Ports 20
10/100 Fast Ethernet Ports 16 x RJ45
Gigabit Ethernet Combo Ports 4 x SFP/RJ45 combo
Console Ports 1 x Mini-USB
MAC Address Table Size 16000 entries
Forwarding Bandwidth 4 Gbps
Switching Capacity 12 Gbps
Media Layer Supported Layer 2 / Layer 3
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet

Advanced Security Features
Authentication Methods 802.1X, RADIUS, TACACS+
Port Security Yes
Access Control Lists (ACLs) Yes
Storm Control Supported
DHCP Snooping Yes
IP Source Guard Yes

Physical & Environmental
Width 6.12 in
Height 6.12 in
Depth 5.09 in
Operating Temperature Range -40°C to 75°C
Storage Temperature Range -40°C to 85°C
Operating Humidity 5% to 95% (non-condensing)
