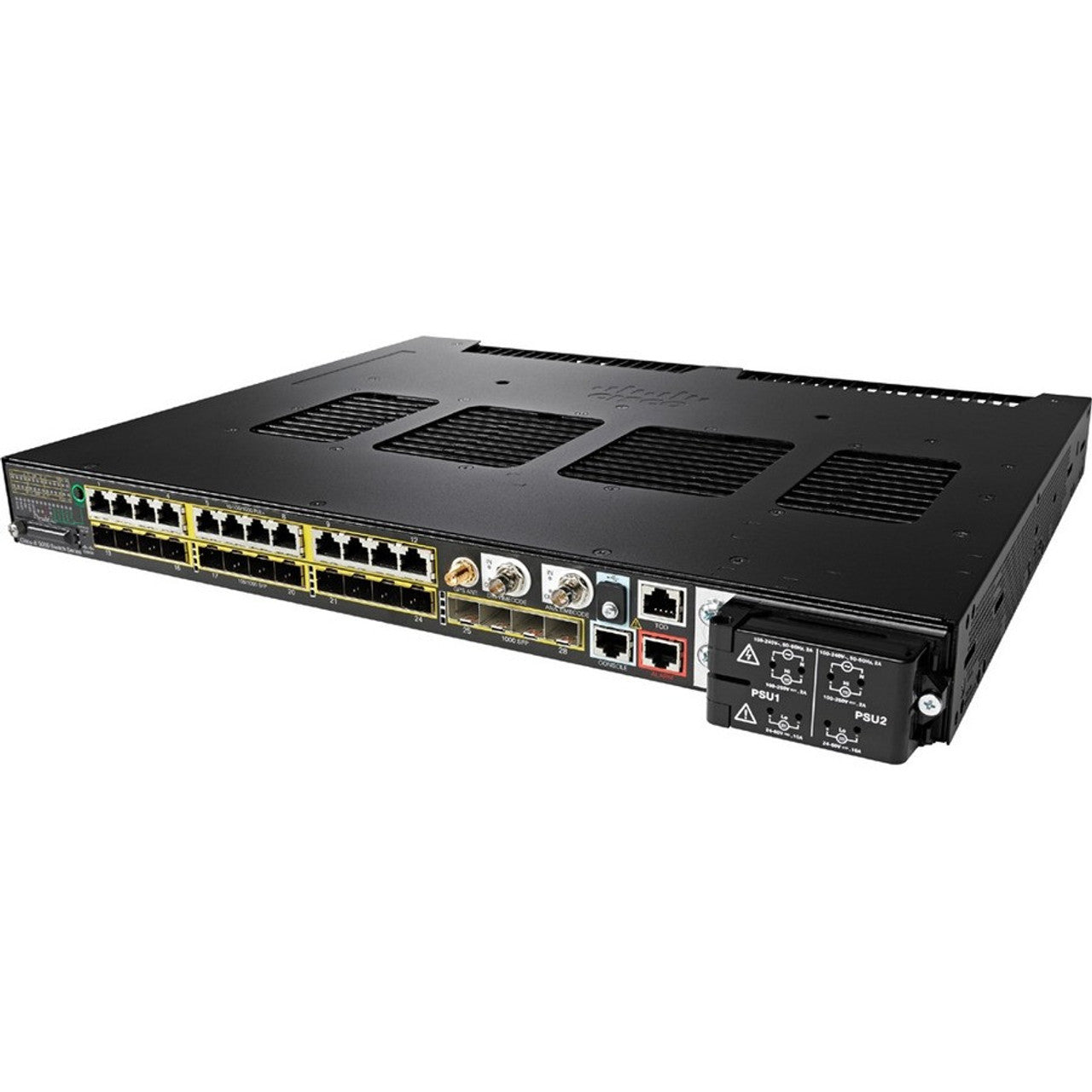

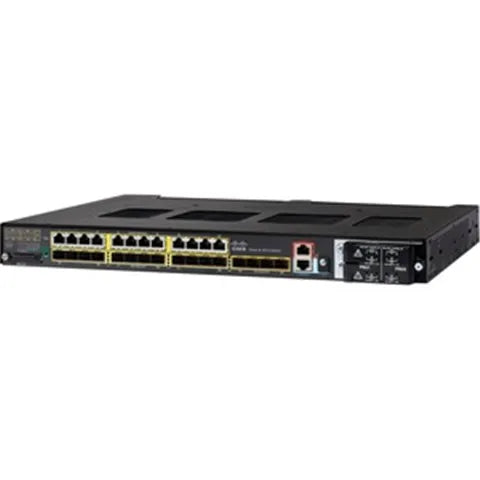

Cisco IE-4010-16S12P Industrial Ethernet Switch, 28-Port Managed

VENDOR: CISCO Mfg Part#: IE-4010-16S12P UPC#: 882658945557
1 2
Photo is for illustration purposes only. Actual product may be different.
$6,122.66
$6,122.66
Sale Sold out
MSRP: $8,979.90
Shipping calculated at checkout.
  • 28-port DIN rail mountable industrial managed switch
  • 12x 10/100/1000 PoE+ ports, 12x SFP ports, 4x combo SFP uplink ports
  • 56 Gbps switching bandwidth and 28 Gbps forwarding bandwidth
  • Advanced security features: FIPS 140-2, 802.1x, IP source guard, and DHCP snooping
  • Operating temperature range: -40 °F to 167 °F
  • Complies with numerous industrial standards including IEEE 1588v2 and EN 50155

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers versatile connectivity with 28 total ports including PoE+ and SFP options, ideal for mixed deployment environments
  • Built to operate in extreme temperatures and industrial conditions, ensuring reliable uptime in harsh settings
  • Includes Cisco IOS LAN Base software and a 5-year warranty with advance parts replacement, enhancing ROI and lifecycle support

Product Overview

The Cisco IE-4010-16S12P is a 28-port managed industrial Ethernet switch designed for critical network applications in harsh environments. It features 12 Gigabit PoE+ ports, 12 SFP ports, and 4 uplink ports for maximum connectivity flexibility. Layer 2 and basic Layer 3 support, including static IPv4 routing and IGMP snooping, provide strong traffic control capabilities. The switch delivers 56 Gbps switching bandwidth and is built with FIPS 140-2 certified encryption for advanced security. Certified to industry standards like IEEE 1588v2 and EN 50155, and tolerant to –40°F to 167°F temperature ranges, this device ensures reliable operation in demanding settings. It is backed by a five-year Cisco warranty with advance hardware replacement support.

Specifications

Product Overview
Product Type Managed Industrial Ethernet Switch
Model Cisco IE-4010-16S12P
Part Number IE-4010-16S12P
Form Factor DIN rail mountable, 1U
Enclosure Type 1U steel industrial chassis
Power Requirements Supports dual DC input (24V DC or 54-57V DC for PoE)
MTBF 415,160 hours
Included Accessories 1 GB SD card
Software Included Cisco IOS LAN Base
Warranty 5-year limited warranty with advanced hardware replacement

Wireless Features
Wi-Fi Capability

Compliance & Origin
Country of Origin Brazil / China / United States
TAA Compliant Yes
Certifications UL 508, EN 50155, EN 61131-2, IEC 61850-3, EN 61000-6-2, EN 61000-6-4, FIPS 140-2, RoHS
Standards Compliance IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 1588v2, IEC 60068 series

Advanced Security Features
Encryption FIPS 140-2 certified encryption
Authentication Methods RADIUS, TACACS+
Access Control 802.1X, IP source guard, dynamic ARP inspection, port security
Traffic Protection Storm control, DHCP snooping, IGMP filtering
Segmentation & QoS VLAN support, CoS, DiffServ, QoS policies
Redundancy Protocols STP, RSTP, MSTP, REP, Flex Link, PRP
Time Synchronization PTP (IEEE 1588v2), CIP Sync

Interfaces
Total Ports 28
PoE+ Ports 12 x 10/100/1000Base-T PoE+
SFP Ports 12 x 1000Base-X SFP
Uplink Ports 4 x 10/100/1000Base-T/SFP combo
Console Ports 1 x RJ-45, 1 x mini-USB Type B
Expansion Slots 1 x SD memory card slot (occupied)
Interface Bandwidth Switching: 56 Gbps; Forwarding: 28 Gbps
MAC Address Table Size 16K entries
Packet Forwarding Capacity 41.67 Mpps (million packets per second)

Physical & Environmental
Width 17.5 in
Depth 14 in
Height 1.8 in
Weight 12.74 lbs
Operating Temperature Range -40°F to 167°F (-40°C to 75°C)
Storage Temperature Range -40°F to 185°F (-40°C to 85°C)
Operating Humidity 5% to 95% (non-condensing)

Cloud Management & Licensing
Management Interfaces CLI, SNMP v1/v2/v3, RMON, Telnet, HTTP, HTTPS, SSH, SCP
Remote Management Protocols SNMP, RMON, Telnet, HTTP, HTTPS, SSH, CLI
Included Licensing LAN Base image (Layer 2 with basic Layer 3 features)
