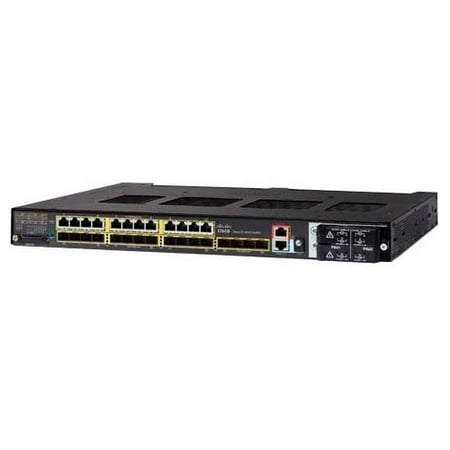

Cisco IE4010 Switch, 28-Port Managed, 24x PoE+, 4x SFP Uplink

VENDOR: CISCO Mfg Part#: IE-4010-4S24P UPC#: 882658945533
  • IE4010 4X 1G SFP, 24 10/100/1000 GE POE
1 1
Photo is for illustration purposes only. Actual product may be different.
$6,497.34
$6,497.34
Sale Sold out
MSRP: $9,529.43
Shipping calculated at checkout.
  • 28-port managed switch with 24 x 10/100/1000 PoE+ and 4 x SFP uplink ports
  • Switching bandwidth of 56 Gbps and forwarding bandwidth of 28 Gbps
  • Supports 1,000 VLANs, 16K MAC address table, and NAT translation
  • DIN rail mountable 1U form factor for industrial deployment
  • -40°F to 167°F operating temperature, MTBF of 429,620 hours
  • Advanced Layer 2/3 features including IGMPv3, static IPv4 routing, DHCP snooping, and 802.1x authentication

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Equipped with 24 PoE+ ports and 4 SFP uplinks, the IE4010 supports flexible device connectivity and scalable network expansion.
  • Designed for industrial environments, it offers wide temperature tolerance and has an MTBF of over 429,000 hours, ensuring high availability.
  • Shipping with Cisco IOS LAN Base and supporting a full suite of remote management protocols, it facilitates efficient, centralized network administration.

Product Overview

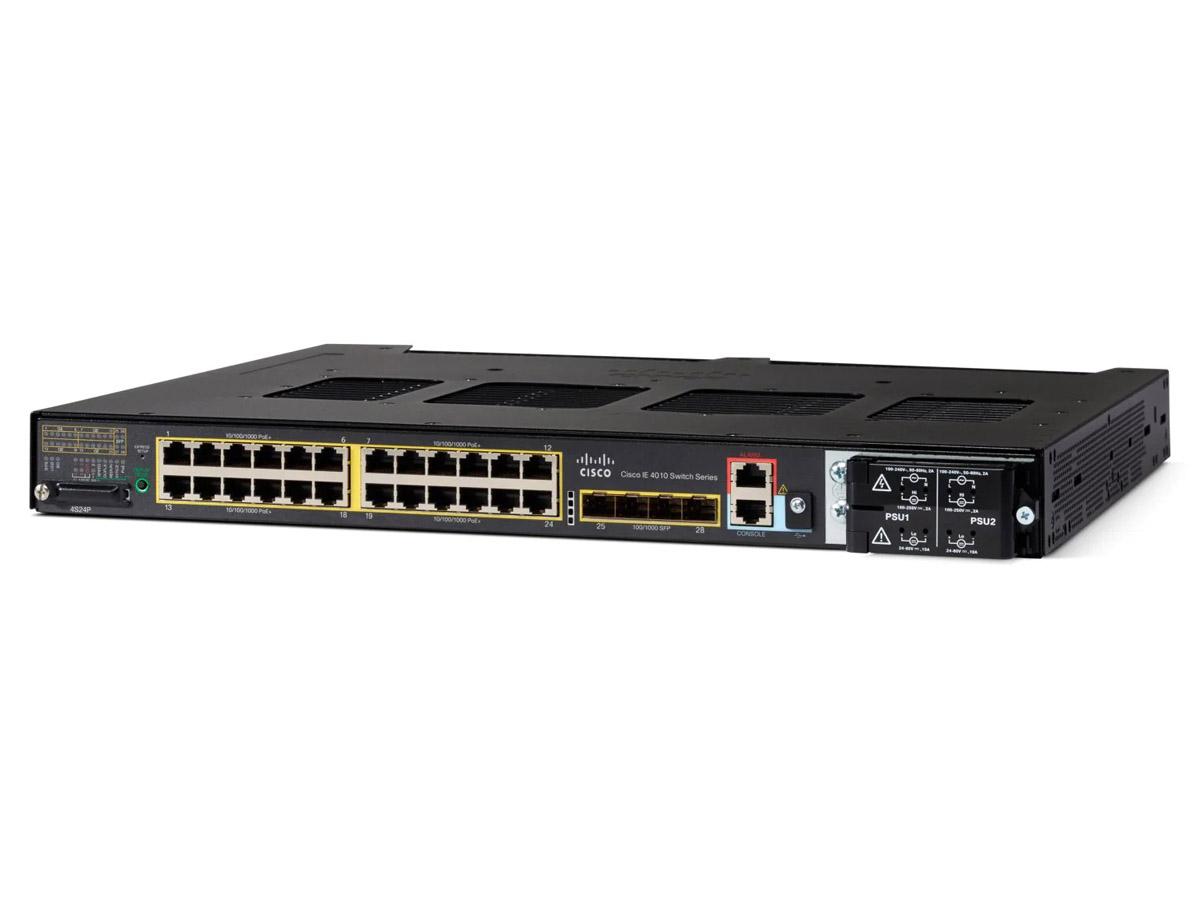

The Cisco IE4010 Series Managed Industrial Ethernet Switch offers 24 PoE+ copper ports and 4 Gigabit SFP uplinks, ideal for industrial networking environments. With a switching bandwidth of 56 Gbps, support for 1,000 VLANs, and robust routing protocols like IGMPv3 and static IPv4, it is engineered for scalable deployment. Built with ruggedized DIN-rail mount in a 1U form factor, the device withstands extreme temperatures (-40°F to 167°F) and features advanced security including 802.1x and dynamic ARP protection. Bundled with Cisco IOS LAN Base and a 1 GB SD card, it offers reliable, manageable, and secure connectivity across mission-critical applications.

Specifications

Product Overview
Device Type Switch - 28 ports - managed
Enclosure Type DIN rail mountable 1U
Subtype Gigabit Ethernet
Form Factor 1U
Weight 12.04 lbs
Power over Ethernet (PoE) 24 ports with PoE+
MTBF 429,620 hours
Memory (RAM) 1 GB
Flash Memory 128 MB
Software Included Cisco IOS LAN Base
Expansion Slots 1 (total) / 0 (free) x SD Memory Card
Included Accessories 1 GB SD card

Wireless Features
Wi-Fi Standards

Compliance & Origin
Country of Origin Brazil / China / United States
TAA Compliant Yes
Compliance Standards IEEE 802.3 series, IEEE 802.1 series, IEEE 1588v2, IEEE 1613, UL 508, EN 61000 series, IEC 60068 series, EN 50155, FIPS 140-2, RoHS, and others

Advanced Security Features
Encryption Algorithm FIPS 140-2
Authentication Methods RADIUS, TACACS
Security Features 802.1x authentication, dynamic ARP protection, DHCP snooping, IP source guard, MAC Address Notification, Storm Control, DAI, CoS, IGMP filtering, ACLs, IPv6 security, port security

Interfaces
Total Ports 28
RJ-45 Ports 24 x 10/100/1000Base-T (PoE+)
SFP Uplink Ports 4 x 10/100/1000/SFP
Console Ports 1 x RJ-45, 1 x mini-USB Type B
Switching Bandwidth 56 Gbps
Forwarding Bandwidth 28 Gbps
MAC Address Table Size 16K entries
Performance Capacity 1000 VLANs, 1000 IGMP groups, 128 NAT translations

Physical & Environmental
Dimensions (W x D x H) 17.5 in x 14 in x 1.8 in
Min Operating Temperature -40 °F
Max Operating Temperature 167 °F
Min Storage Temperature -40 °F
Max Storage Temperature 185 °F
Humidity (Operating) 5 - 95% (non-condensing)

Cloud Management & Licensing
Remote Management Protocols SNMP 1/2/3, RMON 1/2, CLI, HTTP, SSH, Telnet, SCP
Management Software Cisco IOS LAN Base
Cloud Features
