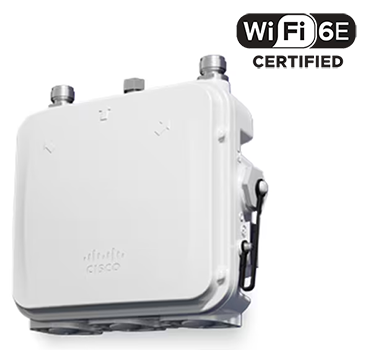

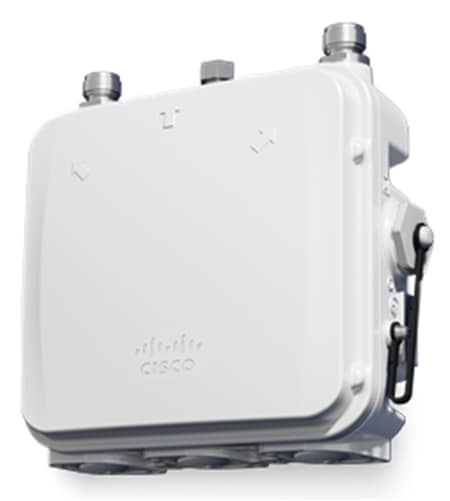

Cisco IW9165 AX 6E Outdoor Access Point with Directional Antenna

VENDOR: CISCO Mfg Part#: IW9165DH-B-AP++
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,987.16
$1,987.16
Sale Sold out
MSRP: $2,914.50
Shipping calculated at checkout.
  • Supports Wi-Fi 6E (802.11ax) across 5 GHz and 6 GHz frequency bands
  • 2.5 Gbps PoE+ input via auto-sensing multigigabit M12 X-code/RJ45 Ethernet port
  • Dual-radio system with directional antenna for focused RF coverage
  • 2 GB RAM and 1 GB onboard storage for improved performance
  • Outdoor-rated with rugged RJ45/M12 connectors for industrial deployments
  • Power input range of 24 to 48 VDC for flexible integration

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers fast, reliable wireless with multiband Wi-Fi 6E support in 5 and 6 GHz bands
  • Industrial-grade design with M12 connectors and wide voltage tolerance ensures long-term durability in harsh environments
  • TAA compliance and a 1-year limited warranty make it ideal for public sector and government applications

Product Overview

The Cisco IW9165DH-B-AP is a ruggedized, outdoor access point providing Wi-Fi 6E connectivity across 5 GHz and 6 GHz bands. It features a dual-radio system and directional antenna for targeted network coverage. With multigigabit PoE+ support via RJ45/M12 X-code connectors and flexible 24–48 VDC power input, it is built for demanding industrial environments. Integrated 2 GB RAM and 1 GB storage enhance operational stability, while a 1-year warranty and TAA compliance ensure deployment confidence. Compact and reliable, it’s a strong fit for mission-critical networks.

Specifications

Product Overview
Product Type Access Point
Model IW9165DH-B-AP
Environment Outdoor
Form Factor Ruggedized outdoor unit
Weight 2.75 lbs (1.25 kg)
Power Requirements 24–48 VDC (Direct or via PoE+)
Power Input PoE+ (IEEE 802.3at), or 24–48 VDC
RAM 2 GB
Storage 1 GB
Warranty 1-year limited warranty

Wireless Features
Wireless Standard Wi-Fi 6E (802.11ax)
Operating Frequency Bands 5 GHz, 6 GHz
Radio Configuration Dual-radio
Directional Antenna Type Integrated directional antenna
MIMO 4x4 MU-MIMO (per radio)
Max Data Rate (per band) Up to 2.4 Gbps
Max Aggregate Throughput Up to 5.2 Gbps
Beamforming Supported
Security Encryption WPA3, WPA2

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications FCC, IC, CE, UL 60950-1, CAN/CSA-C22.2 No. 60950-1
EMC Standards EN 301 489-1, EN 301 489-17
Safety Compliance UL/CSA 62368-1

Advanced Security Features
Wireless Security WPA3, Secure Boot, MAC filtering, 802.1X authentication
Content Filtering Supported with Cisco Umbrella integration
Secure Transport TLS/SSL, SSH
Role-Based Access Control Supported
Rogue AP Detection Supported

Interfaces
Network Interface 1x 2.5 Gigabit Ethernet (RJ45 or M12 X-coded)
Data Transfer Rate 2.5 Gbps
Interface Type Ethernet, PoE+
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Physical & Environmental
Width 7.2 inches (183 mm)
Height 7.1 inches (180 mm)
Depth 3.6 inches (92 mm)
Operating Temperature -40°C to 65°C (-40°F to 149°F)
Storage Temperature -50°C to 85°C (-58°F to 185°F)
Relative Humidity 5% to 95% (non-condensing)
Ingress Protection Rating IP67
Enclosure Material Die-cast aluminum

Cloud Management & Licensing
Cloud Management Platform Cisco Catalyst Center or Cisco Meraki Dashboard (depending on mode)
Management Interface Web UI, CLI, SNMP, Netconf/YANG
Licensing Options Cisco DNA licenses; Essentials or Advantage (sold separately)
Zero‑Touch Provisioning Supported
OTA Firmware Updates Supported
