CISCO MDS 9124V 64G FC Switch with 24 Active Ports and 32G SW, Intake

VENDOR: CISCO Mfg Part#: DS-C9124V-24PITK9
  • The CISCO MDS 9124V is a high-performance 64G Fibre Channel switch equipped with 24 active ports and bundled with 32G software. Designed for enterprise-grade environments, it supports wired Gigabit Ethernet and multiple management protocols including HTTP, HTTPS, and SNMP. This model includes essential connectivity interfaces and supports RADIUS authentication for secure access.
1 1

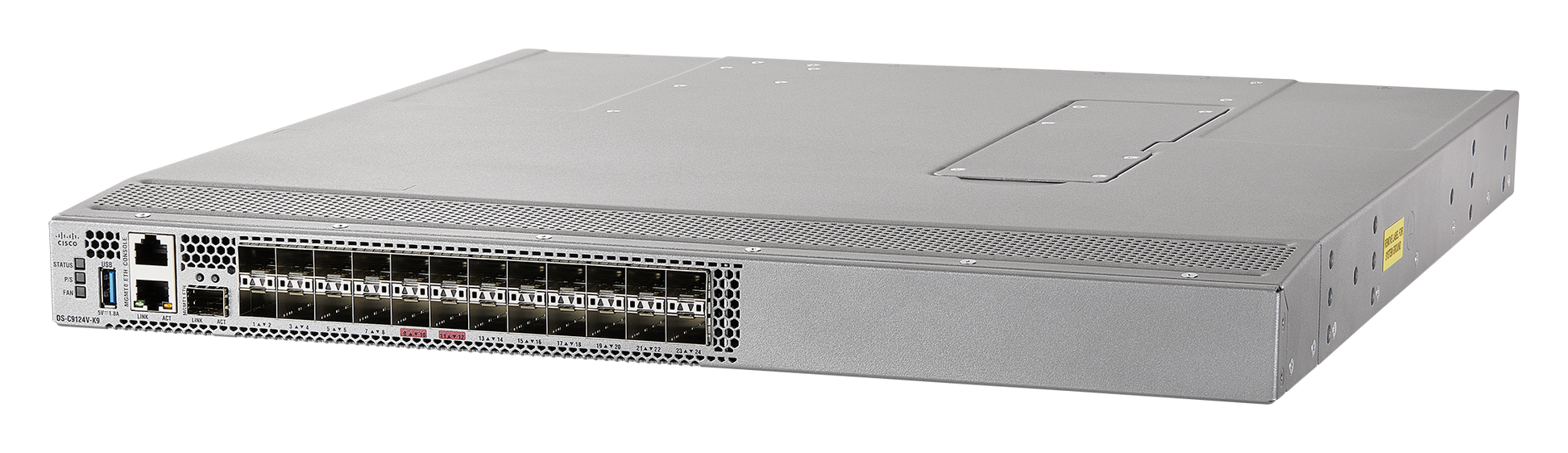

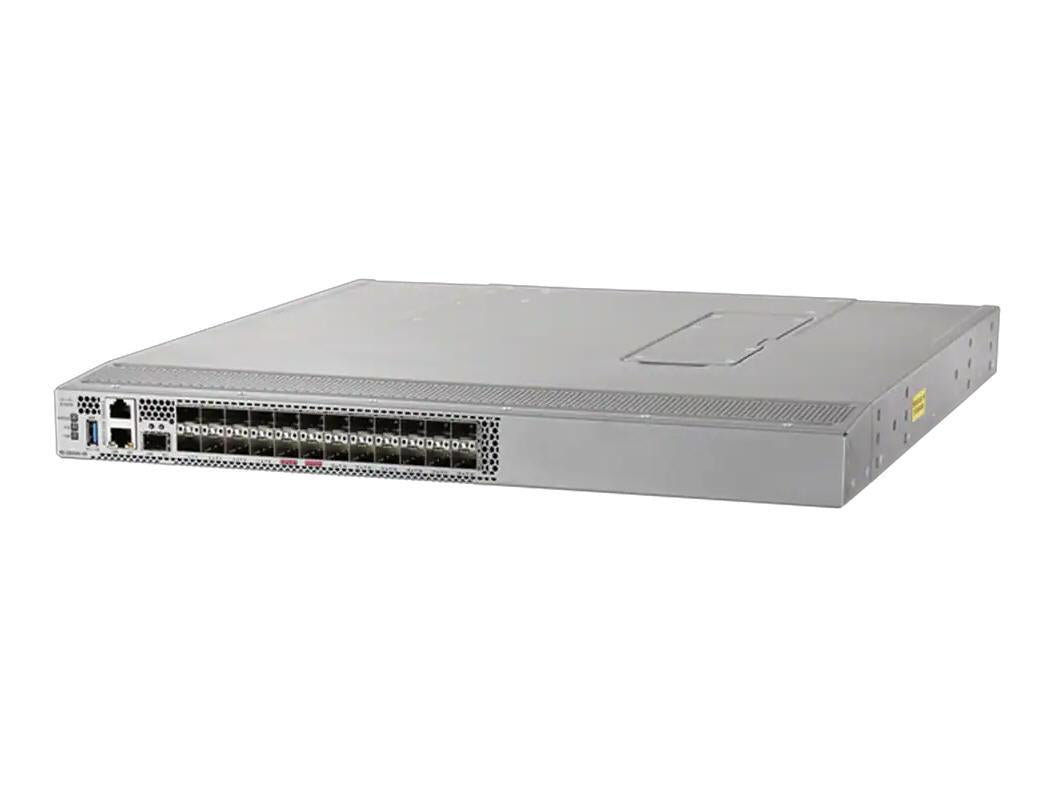

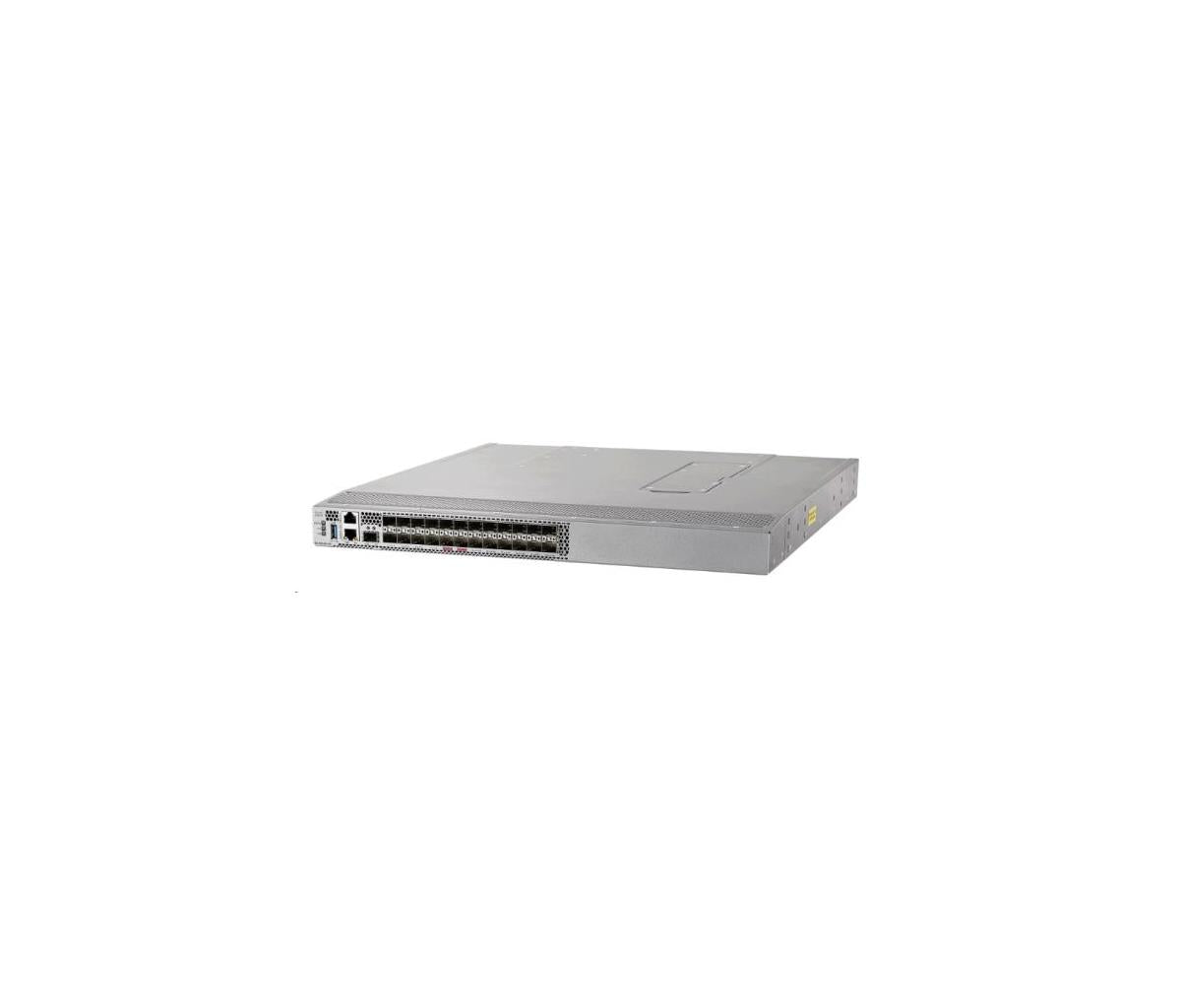

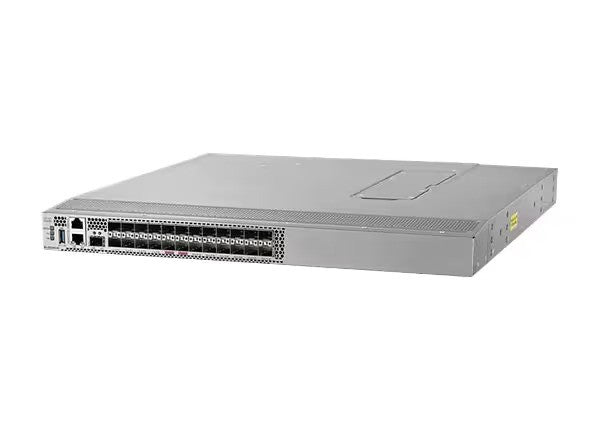

Photo is for illustration purposes only. Actual product may be different.
$27,402.02
$27,402.02
Sale Sold out
MSRP: $39,857.49
Shipping calculated at checkout.
  • 24 active 64G Fibre Channel ports for high-speed data transfers
  • Bundled with 32G software for enhanced switching capabilities
  • Supports HTTP, HTTPS, SNMP management protocols
  • Includes 10/100/1000BASE-T Ethernet port, RS-232 console, and USB port
  • Authentication via RADIUS for secure access control
  • TAA compliant and manufactured in Mexico or Malaysia
View full details

Key Benefits

Eye-Insights
  • Offers 64G Fibre Channel performance with 24 active ports for enterprise storage applications
  • Integrated security and management with support for RADIUS authentication and multiple protocols
  • TAA compliance ensures suitability for government and regulated industries

Product Overview

The CISCO MDS 9124V 64G FC Switch offers high-speed storage networking with 24 active Fibre Channel ports and bundled 32G software. It supports multiple management interfaces including HTTP, HTTPS, and SNMP, and features RADIUS authentication for improved security. With 10/100/1000BASE-T connectivity, RS-232 serial console, and USB ports, it provides comprehensive management options. The intake airflow design ensures cooling efficiency. TAA compliance makes it suitable for sensitive deployments.

Specifications

Primary Information
Network Device Type Switch
Model DS-C9124V-24PITK9
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 64 Gbps
Networking / Ports Qty 28
Data Link Protocol Gigabit Ethernet
Power / Device Type Power Supply
Power / Installed Qty 2
Features High performance;Fully integrated SAN Analytics;Cisco Dynamic Ingress Rate Limiting (DIRL).

Interfaces / Ports
Interfaces SFP+;10/100/1000BASE-T;RS-232 serial console;USB

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO MEXICO / MALAYSIA
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support none
PoE Power Consumption none
Remote Management Protocol SNMP; HTTP; HTTPS
Routing Protocol IVR
Encryption Algorithm AES
Interfaces SFP+;10/100/1000BASE-T;RS-232 serial console;USB
Authentication Method RADIUS

Dimensions&Miscellaneous
Width 17.299 Inch
Depth 18 Inch
Height 1.72 Inch
Weight 8.5 Kg

UNSPSC Code
UNSPSC Code 43222612
