CISCO MDS 9124V 64G FC Switch with 24 Active Ports and Exhaust Cooling

VENDOR: CISCO Mfg Part#: DS-C9124V-24PEVK9
  • The Cisco MDS 9124V 64G FC is a high-performance Fibre Channel switch featuring 24 active ports and integrated 64G SW optics. Designed for modern enterprise data centers, it delivers fast, reliable, and secure fibre channel connectivity in a compact 1RU form factor. This model includes redundant power supplies and fans for enhanced availability.
1 1

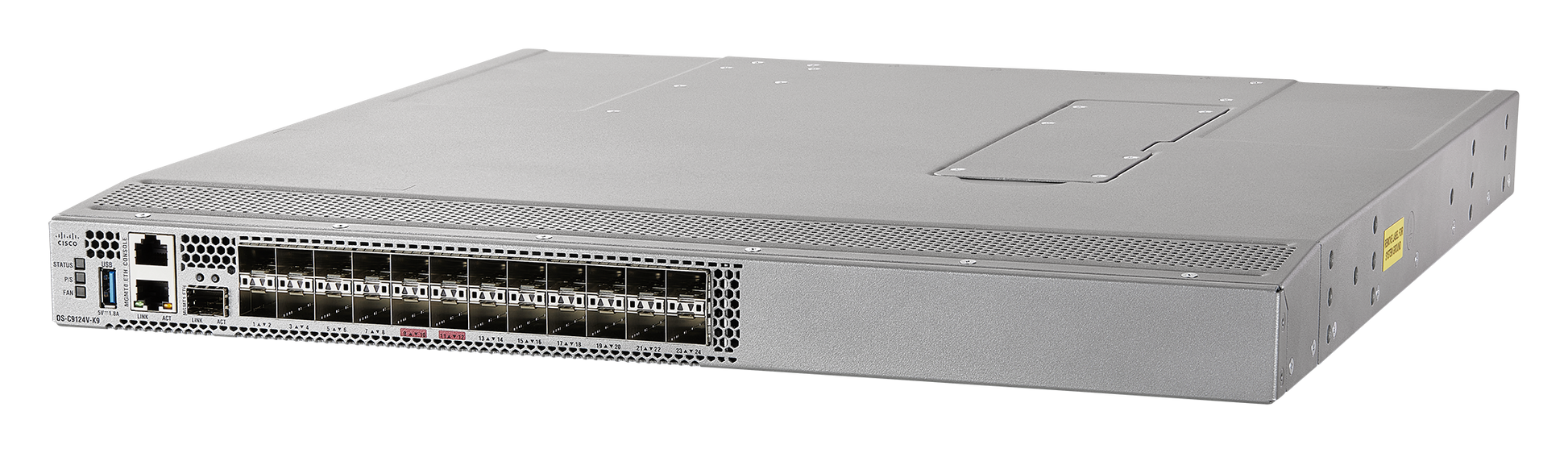

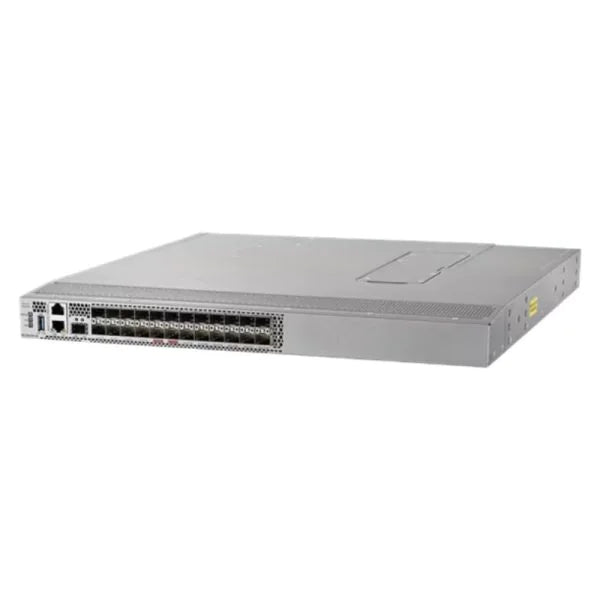

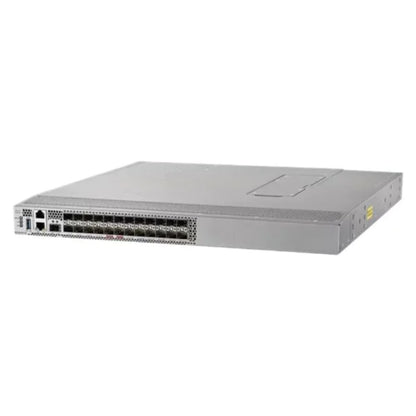

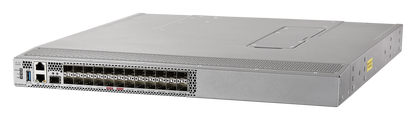

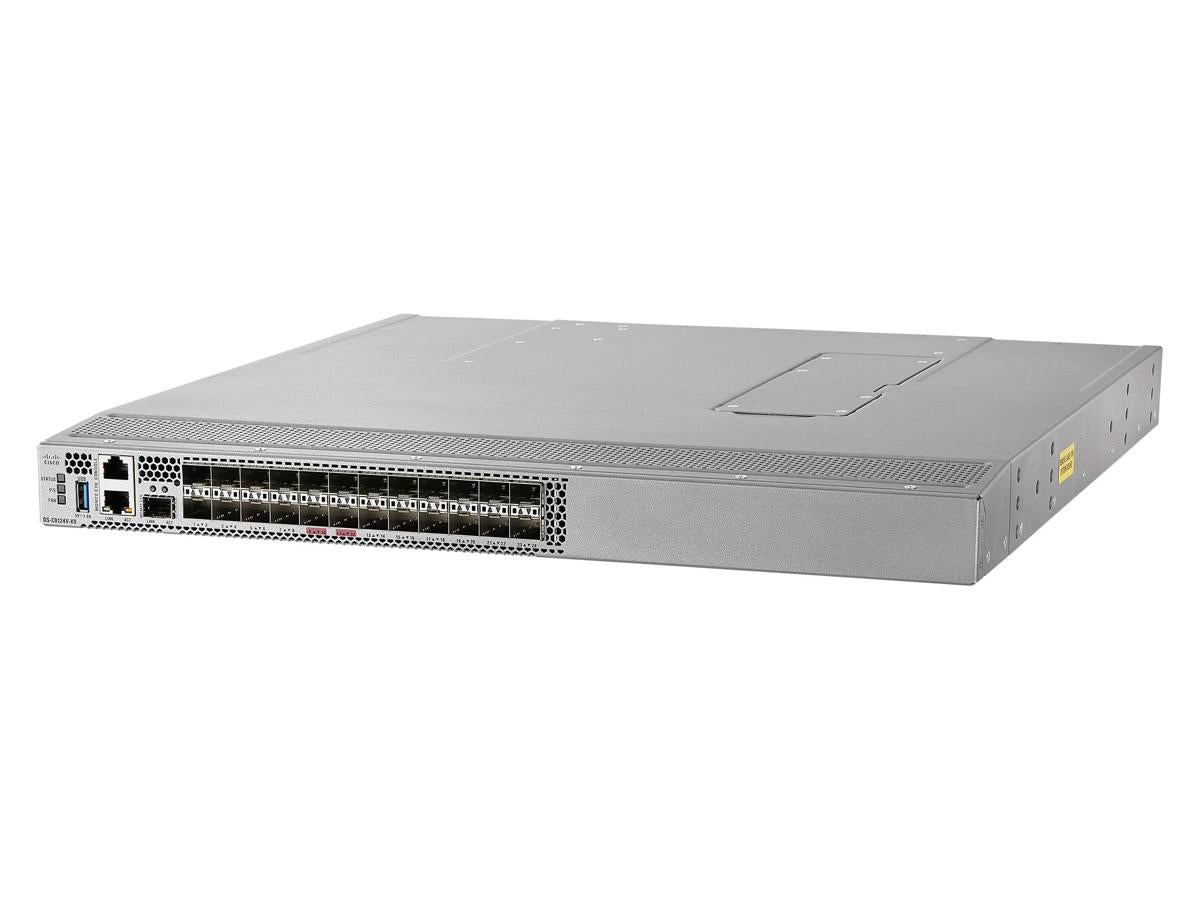

Photo is for illustration purposes only. Actual product may be different.
$33,055.69
$33,055.69
Sale Sold out
MSRP: $48,081.00
Shipping calculated at checkout.
  • 24 active SFP+ ports supporting up to 64 Gbps data transfer rate
  • Integrated 64G SW optics with LED status indicators
  • 1RU compact form factor with 4 fans and 2 installed power supplies
  • Supports SNMP, SSH, Syslog remote management protocols
  • Multi-interface support: SFP+, 10/100/1000BASE-T, RS-232, and USB
  • Advanced security with AES encryption, RADIUS and TACACS+ authentication
View full details

Key Benefits

Eye-Insights
  • Delivers high-throughput 64 Gbps Fibre Channel switching to meet the demands of modern storage networks
  • Redundant fans and dual power supplies ensure high availability and reliability in mission-critical environments
  • Comprehensive interface and management options support flexible deployments with robust security protocols

Product Overview

The Cisco MDS 9124V 64G FC switch is engineered for high-performance fibre channel networking in storage-focused environments. It delivers 24 active SFP+ ports with up to 64 Gbps data throughput, making it ideal for demanding data centers. The 1RU profile contains four fans and two power supplies for improved redundancy and ventilation through exhaust cooling. With support for SFP+, Gigabit Ethernet, RS-232, and USB interfaces, along with management protocols like SNMP, Syslog, and SSH, this switch is optimized for control and integration. Enhanced with RADIUS and TACACS+ authentication plus AES encryption, it aligns with security-intensive applications. Physical and temperature specifications support wide deployment flexibility in enterprise infrastructures.

Specifications

Primary Information
Network Device Type Switch
Model MDS 9124V
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 64 Gbps
Networking / Ports Qty 28
Data Link Protocol Gigabit Ethernet
Status Indicators LED
Power / Device Type Power Supply
Power / Installed Qty 2

Interfaces / Ports
Interfaces SFP+, 10/100/1000BASE-T, RS-232 serial console, USB
SFP+ Ports 24

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO MEXICO / MALAYSIA
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
Remote Management Protocol SNMP; Syslog; SSH
Encryption Algorithm AES
Authentication Method RADIUS, TACACS+
SFP+ Ports 24
Interfaces SFP+, 10/100/1000BASE-T, RS-232 serial console, USB

Dimensions&Miscellaneous
Width 17.299 Inch
Depth 18 Inch
Height 1.72 Inch
Weight 8.5 Kg

UNSPSC Code
UNSPSC Code 43222612
