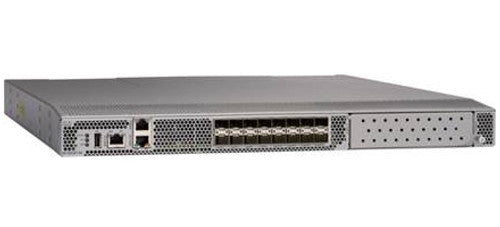

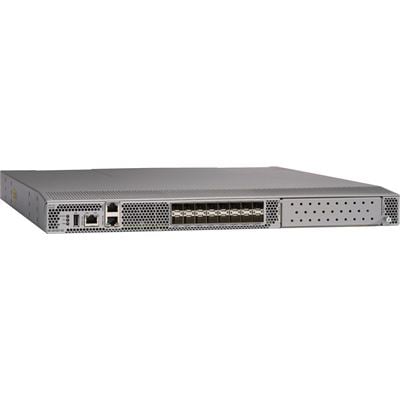

CISCO MDS 9132T 32G 1RU FC Switch with 8 Active Ports

VENDOR: CISCO Mfg Part#: DS-C9132T-MEK9 UPC#: 889728088497
1 3
Photo is for illustration purposes only. Actual product may be different.
$4,670.78
$4,670.78
Sale Sold out
MSRP: $6,850.49
Shipping calculated at checkout.
  • 32 Gbps data transfer rate for high-speed Fibre Channel networking
  • Compact 1RU form factor with 8 active Fibre Channel ports
  • Multiple connectivity options: Fibre Channel, 10/100/1000BASE-T, RS-232, USB
  • Secure management with RADIUS, TACACS+, SNMP, CLI, and Syslog support
  • Integrated 650W power supply supporting 100–240V AC
  • Operates in temperature range of 0°C to 45°C with dual fans and port-side exhaust

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for high-performance SAN environments requiring 32G Fibre Channel throughput
  • Versatile connectivity and remote management protocols streamline complex network integration
  • TAA-compliant and built in Mexico, making it suitable for public sector and regulated industry deployment

Product Overview

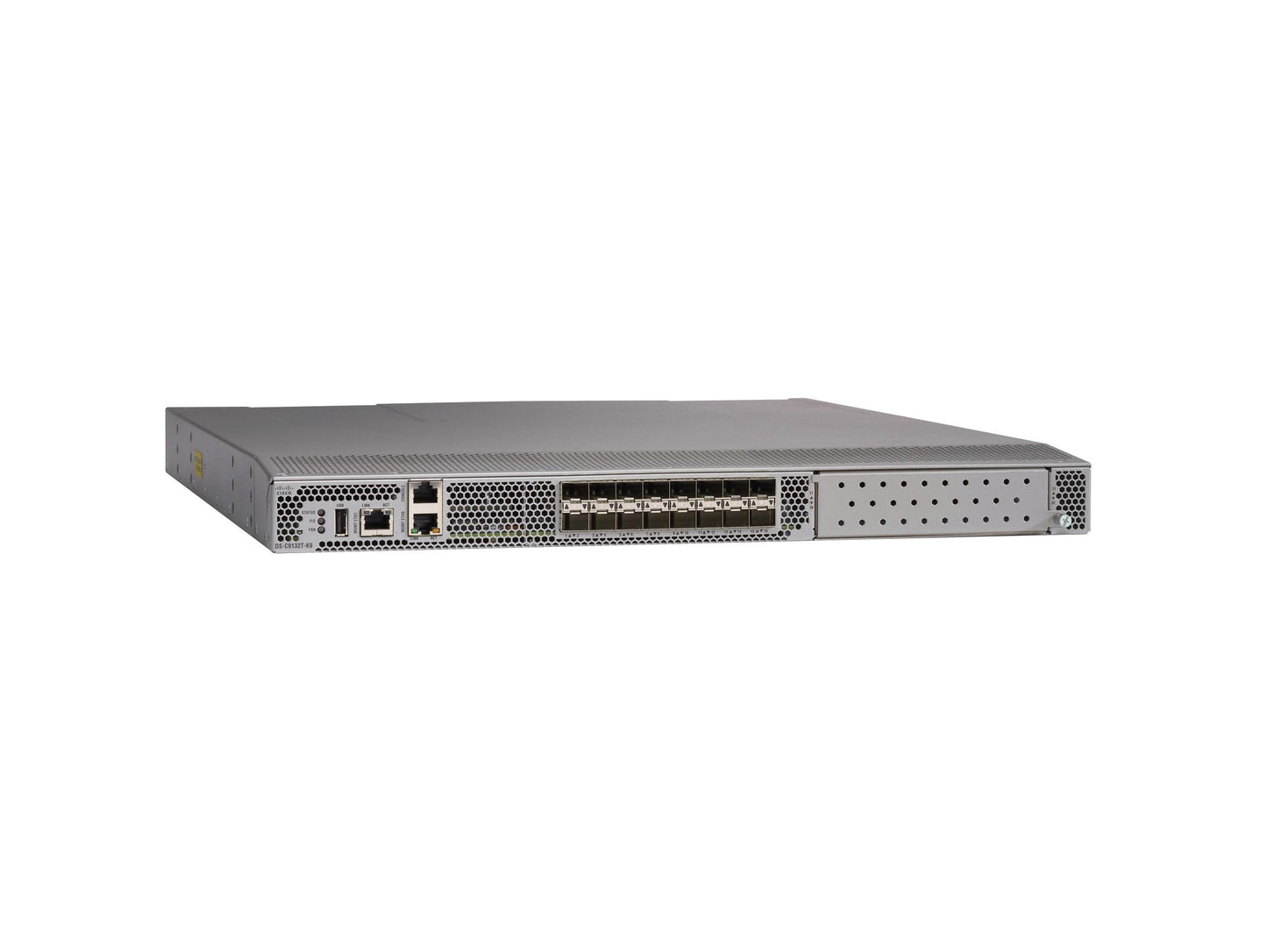

The CISCO MDS 9132T is a 1RU Fibre Channel switch designed for data centers requiring high throughput with compact installation. Featuring 32 Gbps data rates and 8 active FC ports, it ensures rapid, scalable data transit in enterprise SANs. With multi-interface support including Fibre Channel, 10/100/1000BASE-T, RS-232, and USB, it adapts to diversified network structures. Secure management is provided via RADIUS/TACACS+ authentication and SNMP, CLI, Syslog protocols. The system operates within 0–45°C and integrates a 650W PSU for global AC power compatibility. TAA-compliant and manufactured in Mexico, it's an ideal fit for public sector and international use.

Specifications

Product Overview
Product Type Fibre Channel Switch
Model MDS 9132T
Form Factor 1RU
Weight 17.64 lbs (8.0 kg)
Power Supply Type Internal AC Power Supply
Installed Power Supply Units 1
Power Capacity 650 Watt
Power Requirements 100 to 240V AC, 50/60 Hz

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL, CSA, CE, RoHS, FCC Class A
Safety Standards IEC 60950-1, UL 60950-1
Emissions Standards FCC Part 15 Class A, CISPR22 Class A

Advanced Security Features
Authentication Support RADIUS, TACACS+
Encryption Protocols AES
Access Control Mechanisms Role-based access, Secure Boot, SSHv2
Audit & Logging Syslog, SNMP traps

Interfaces
Fibre Channel Ports 32 SFP+ ports (8 active by default)
Max Data Transfer Rate 32 Gbps per FC port
Management Ports 1x 10/100/1000BASE-T Ethernet, 1x RS-232 serial console, 1x USB
Supported Interface Types Fibre Channel, Ethernet, RS-232, USB
Port Expansion Capability Up to 32 FC ports via licensing

Physical & Environmental
Width 17.3 in (43.94 cm)
Depth 20.11 in (51.07 cm)
Height 1.72 in (4.37 cm)
Minimum Operating Temperature 0°C (32°F)
Maximum Operating Temperature 45°C (113°F)
Minimum Storage Temperature -40°C (-40°F)
Maximum Storage Temperature 70°C (158°F)
Operating Humidity 5% to 85%, non-condensing
Storage Humidity 5% to 95%, non-condensing
Cooling System Front-to-back airflow
Rack Mountable Yes

Cloud Management & Licensing
Management Interface CLI, SNMP, Syslog, USB, RJ-45 console
Supported Management Tools Cisco Data Center Network Manager (DCNM)
Licensing Model Port activation licensing
Initial Active Ports 8 Fibre Channel ports active
