Cisco MDS 9132T 32G Fibre Channel Switch – 8 Active Ports, 1U

VENDOR: CISCO Mfg Part#: DS-C9132T-MIK9
1 3

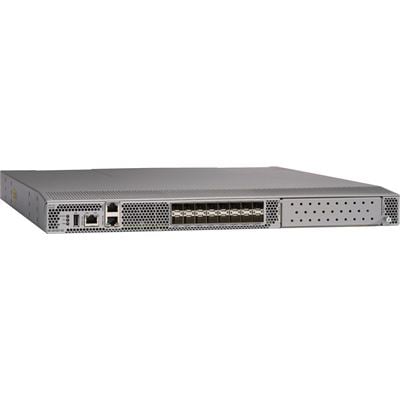

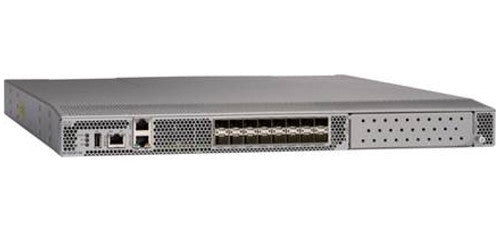

Photo is for illustration purposes only. Actual product may be different.
$4,670.78
$4,670.78
Sale Sold out
MSRP: $6,850.49
Shipping calculated at checkout.
  • 8 x 32Gb Fibre Channel SFP+ ports, with additional Ports on Demand capability
  • 1U rack-mountable design with dual hot-swappable fans
  • Support for AES encryption, RADIUS, TACACS+, and TrustSec for enhanced security
  • Hot-pluggable 650W 80 PLUS Platinum internal power supply with optional redundancy
  • Remote management protocols including SNMP v1/v2/v3, RMON, HTTPS, SSH-2, and SMI-S
  • Comprehensive Fibre Channel standards compliance ensures broad compatibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports high-speed 32Gb Fibre Channel with room for expansion, ensuring investment longevity and scalability.
  • Robust security features including AES encryption and TrustSec support help protect critical enterprise data.
  • Designed for reliability with redundant power option, hot-swappable cooling, and 1U density to optimize rack space usage.

Product Overview

The Cisco MDS 9132T is a next-generation 32G Fibre Channel switch designed for scalable and highly available enterprise storage networks. Engineered in a compact 1U rack-mountable chassis, it includes 8 active SFP+ ports with support for additional Ports on Demand expansion. The switch supports a broad range of Fibre Channel standards, offering extensive protocol compliance to accommodate diverse SAN infrastructures.

Advanced management and monitoring capabilities are integrated, including support for SNMP (v1/2/3), RMON, HTTPS, SSH-2, and SMI-S. High-availability features such as optional power redundancy, hot-pluggable internal 80 PLUS Platinum 650W PSU, and environmental resilience (operating temp range 32 °F – 113 °F) make the MDS 9132T suitable for mission-critical deployments. Security is reinforced with AES encryption, AAA, RADIUS, TACACS+, and TrustSec support.

This model includes dual internal fans, comes with a 1-year hardware replacement warranty, and helps businesses future-proof their Fibre Channel infrastructure while reducing operational disruption during upgrades.

Specifications

Product Overview
Product Type Managed Fibre Channel Switch
Form Factor 1U Rack-mountable
Included Power Supply 1 x 650W internal hot-plug power supply
Redundant Power Supply Support Yes, optional second PSU supported
Power Efficiency 80 PLUS Platinum
Power Requirements AC 120/230 V (50 - 60 Hz)
Total Power Provided 650 Watt
Cooling Fans 2 internal fans
Warranty 1-year limited hardware replacement

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Compliance Standards CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, EMC, ICES-003 Class A, EN 60825, FCC Part 15 A, AS/NZS 3548 Class A, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55022 Class A, 21 CFR 1040, TS001

Advanced Security Features
Encryption Support AES
Authentication Methods RADIUS, TACACS+, LDAP, AAA
Access Control Mechanisms Role-Based Access Control (RBAC), ACL
Compliance with Cisco TrustSec Yes

Interfaces
Fibre Channel Port Count (Active) 8 x 32Gbps Fibre Channel SFP+
Fibre Channel Ports on Demand 8 additional ports
RJ-45 Console Port 1 x RJ-45
USB Port 1 x USB Type A
Management Network Ports 2 x 1GbE RJ-45
Max Expansion Slots 1 x expansion slot (free)

Physical & Environmental
Width 1.7 in (43.2 mm)
Depth 17.3 in (439.4 mm)
Height 20.1 in (510.5 mm)
Operating Temperature Range 32 °F to 113 °F (0 °C to 45 °C)
Storage Temperature Range -40 °F to 158 °F (-40 °C to 70 °C)
Operating Humidity Range 10% to 90% (non-condensing)
Storage Humidity Range 10% to 95% (non-condensing)
Status Indicators Power, system, fan

Cloud Management & Licensing
Remote Management Protocols SNMP (v1/v2/v3), RMON, HTTPS, SMI-S, SSH-2, SFTP
CLI Access Yes (via console and SSH)
Management Software Compatibility Cisco DCNM supported

Protocol Support
Supported Fibre Channel Standards FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5, FC-GS-7, FC-LS-3
Supported Routing Protocols VRRP
Additional Features Auto-sensing, ARP support, QoS, Syslog, RSCN, IVR, ISSU, built-in ASIC, POST, VMID, SPAN, Cisco ISL
