Cisco MDS 9148S 16G Fibre Channel Switch with 12 Active Ports

VENDOR: CISCO Mfg Part#: DS-C9148S-D12PSK9 UPC#: 882658677403
  • The Cisco MDS 9148S 16G FC Switch offers enterprise-class Fibre Channel connectivity in a compact, rack-mountable 1U form. With 12 active 16Gbps FC ports and expansion capability up to 48 ports, it delivers scalable high-performance SAN switching. Integrated management tools and robust remote protocol support make it ideal for data center deployments requiring high availability and secure management.
1 1

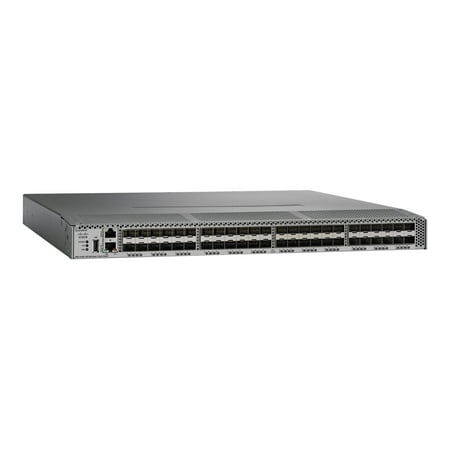

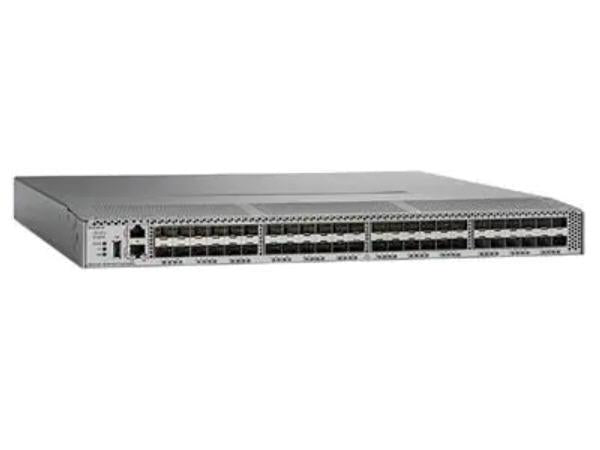

Photo is for illustration purposes only. Actual product may be different.
$9,357.89
$9,357.89
Sale Sold out
MSRP: $13,611.47
Shipping calculated at checkout.
  • 12 active 16Gbps Fibre Channel ports, expandable to 48 with Ports on Demand
  • 1U rack-mountable chassis with back-to-front airflow
  • Extensive Fibre Channel protocol support including FC-GS, FCP, FC-BB families
  • Dual internal hot-plug redundant power supplies (1+1 scheme, 300W)
  • Comprehensive remote management via SNMPv3, SSH-2, CLI, SMI-S, and HTTP
  • Built-in security: AES encryption, RADIUS, TACACS+, LDAP authentication
View full details

Key Benefits

Eye-Insights
  • Scalable design with 12 active ports and expansion up to 48 supports growing SAN requirements
  • Robust management and security protocols ensure compliance and streamlined administration
  • Redundant power supply and enterprise-grade reliability minimize downtime in mission-critical environments

Product Overview

The Cisco MDS 9148S 16G Fibre Channel Switch is a high-performance SAN switching solution designed for data centers. With 12 active 16Gbps FC ports expandable to 48, a 1U rack-mountable chassis, and support for numerous Fibre Channel standards, it's engineered for scalability and compatibility. Featuring remote management protocols like SNMP v3, SSH-2, HTTP, and CLI, plus hot-pluggable dual redundant power supplies, this switch ensures enterprise reliability and uptime. Integrated with DCNM for SAN and Enterprise Package software, it offers comprehensive monitoring and control. AES encryption and support for RADIUS, TACACS+, and LDAP secure its operation across critical deployments.

Specifications

Primary Information
Network Device Type Switch
Model MDS 9148S
Form Factor 1RU
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Power / Device Type Power Supply
Data Transfer Rate 16 Gbps
Networking / Ports Qty 51
Media Layer Supported Multilayer
Power / Installed Qty 2
Power / Provided (W) 300 Watt
Power / Voltage Required 100 to 240V AC
Features Reduce consumption of hardware resources and administrative time needed to create and manage zones.

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces Fibre Channel;Out-of-band 10/100/1000 Ethernet;RS-232 serial console;USB

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
Remote Management Protocol SNMP
Encryption Algorithm AES
Authentication Method RADIUS, TACACS+
Interfaces Fibre Channel;Out-of-band 10/100/1000 Ethernet;RS-232 serial console;USB

Dimensions&Miscellaneous
Width 17.16 Inch
Depth 16.34 Inch
Height 1.72 Inch
Weight 9 Kg
