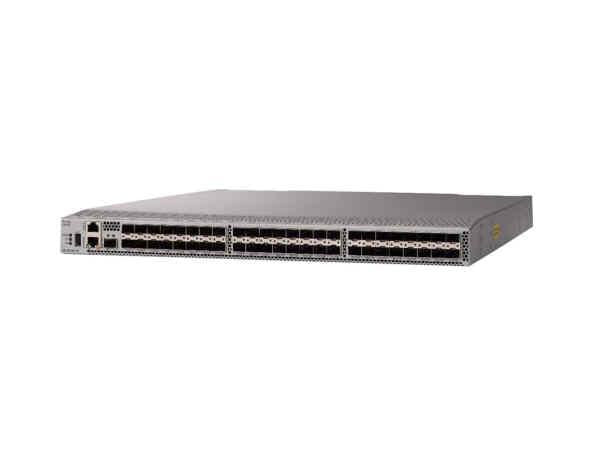

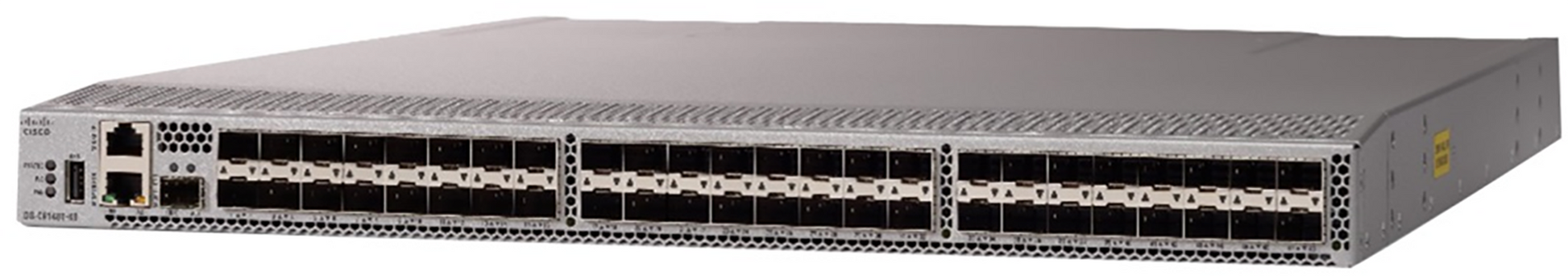

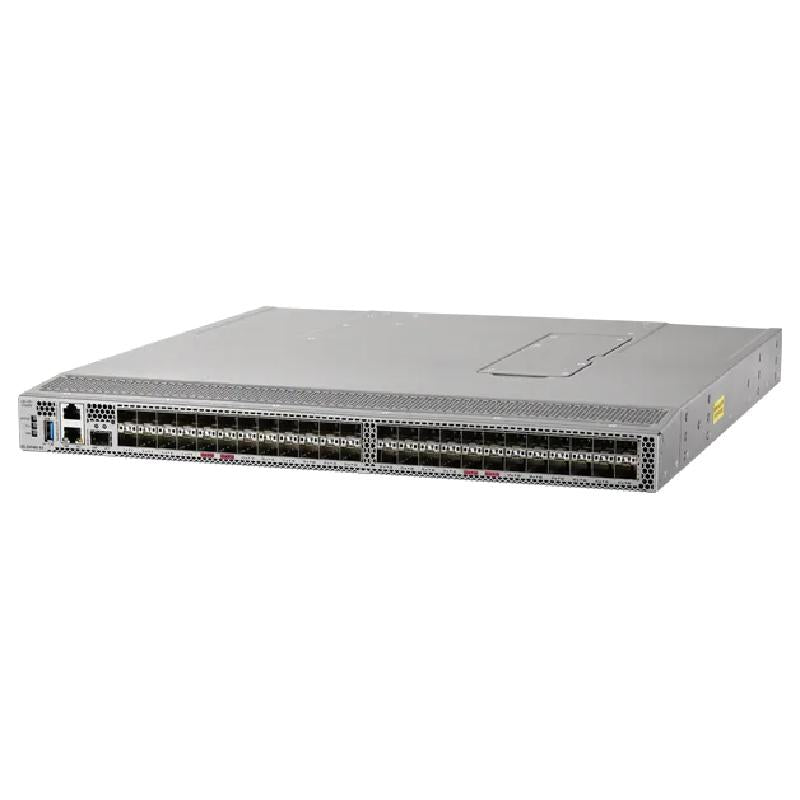

CISCO MDS 9148T 32G FC Switch with 48 Active Ports

VENDOR: CISCO Mfg Part#: DS-C9148T-48PITK9
1 2
Photo is for illustration purposes only. Actual product may be different.
$48,962.77
$48,962.77
Sale Sold out
MSRP: $71,812.07
Shipping calculated at checkout.
  • 48 active Fibre Channel ports enable high-density connectivity
  • Supports 32G Fibre Channel speeds for fast data throughput
  • Intake airflow design for front-to-back cooling alignment
  • Manufactured in Mexico for regional project compliance
  • TAA compliant – meets government procurement regulations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for enterprise storage networking with 48 active 32G ports, delivering high performance and low latency.
  • TAA compliance ensures eligibility for federal and government procurement contracts.
  • Intake airflow supports standard data center cooling, improving thermal efficiency and operational safety.

Product Overview

The CISCO MDS 9148T 32G FC Switch with 48 active ports provides high-speed Fibre Channel switching at 32 Gb/s, ideal for storage networking in enterprise environments. With TAA compliance and intake airflow design, it supports secure deployment in regulated data centers and aligns with standard cooling strategies. Manufactured in Mexico, it is well-suited for government-grade infrastructure and storage-heavy applications.

Specifications

Product Overview
Product Type Fibre Channel Switch
Model MDS 9148T
Form Factor 1U Rack-mountable
Number of Active Ports 48
Max Ports Supported 48
Switching Capacity 768 Gbps
Latency <1 microsecond
Power Supply Type Redundant Hot-swappable AC power supplies
Power Consumption (Typical) 135 Watts
Power Consumption (Maximum) 180 Watts
Airflow Direction Port-side intake
Weight 18.7 lbs (8.5 kg)

Physical & Environmental
Dimensions (H x W x D) 1.72 x 17.5 x 22.06 in (4.37 x 44.5 x 56.05 cm)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 85% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Cooling Fans Redundant hot-swappable fans
Noise Level 61 dB maximum

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, Cisco DCNM
Supported Management Protocols SNMPv3, RMON, Syslog, SSH, Telnet
Licensing Model Port-based licenses with pay-as-you-grow scalability
Included Licenses 48 Ports pre-licensed
Software Upgradeability NX-OS upgradable; license-based feature activation

Interfaces
Host Ports 48 x 32-Gbps Fibre Channel ports
SFP+ Ports 48 x SFP+/SFP28 slots
Console Port 1 x RJ-45
USB Ports 1 x USB 2.0 Type A
Out-of-Band Management Port 1 x 10/100/1000 Mbps Ethernet
Data Transfer Rate 32 Gbps per port
Auto-Negotiation Supported on Fibre Channel Ports
Port Speed Options 8/16/32 Gbps auto-sensing

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
EMC Compliance EN 55032 Class A, CISPR 32 Class A
Safety Certifications UL 60950-1, CAN/CSA-C22.2 No. 60950-1

Advanced Security Features
Role-Based Access Control (RBAC) Yes
RADIUS and TACACS+ Supported
Fabric Binding for Authentication Yes
Cisco TrustSec Supported
Secure Boot and Signed Firmware Yes
