Products Network Stuff CISCO MDS 9148V 64G FC Swit...

CISCO MDS 9148V 64G FC Switch with 48 Active Ports and Exhaust Cooling

VENDOR: CISCO Mfg Part#: DS-C9148V-48PEVK9
1 3

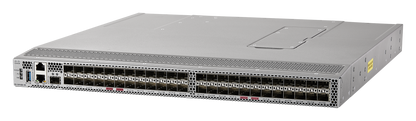

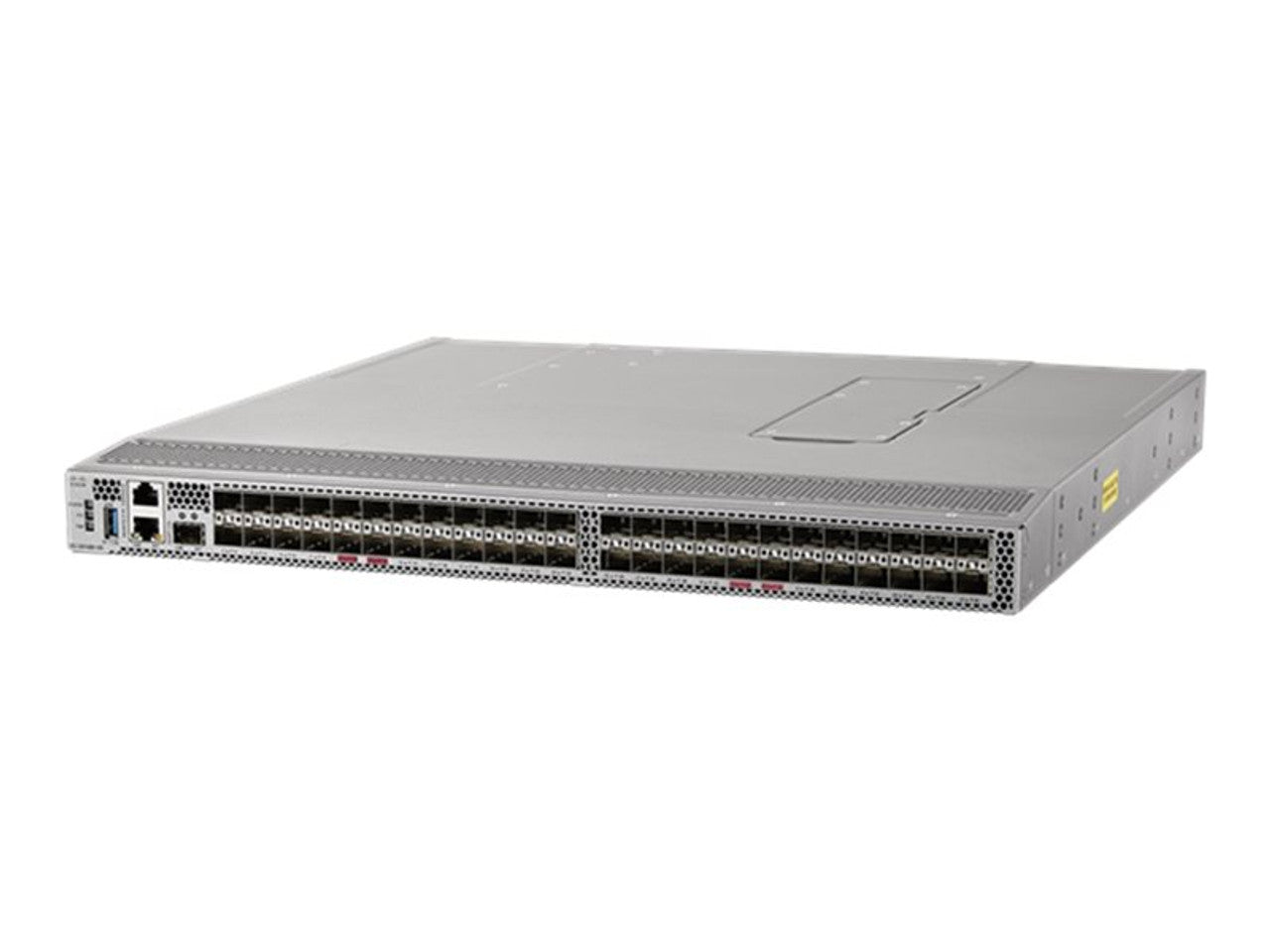

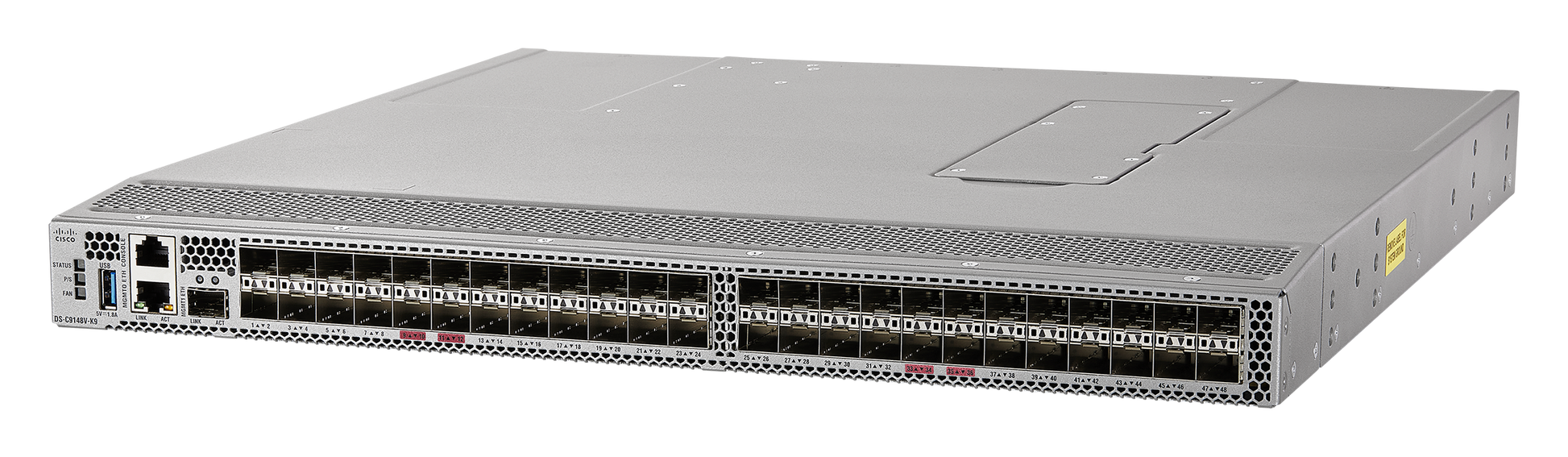

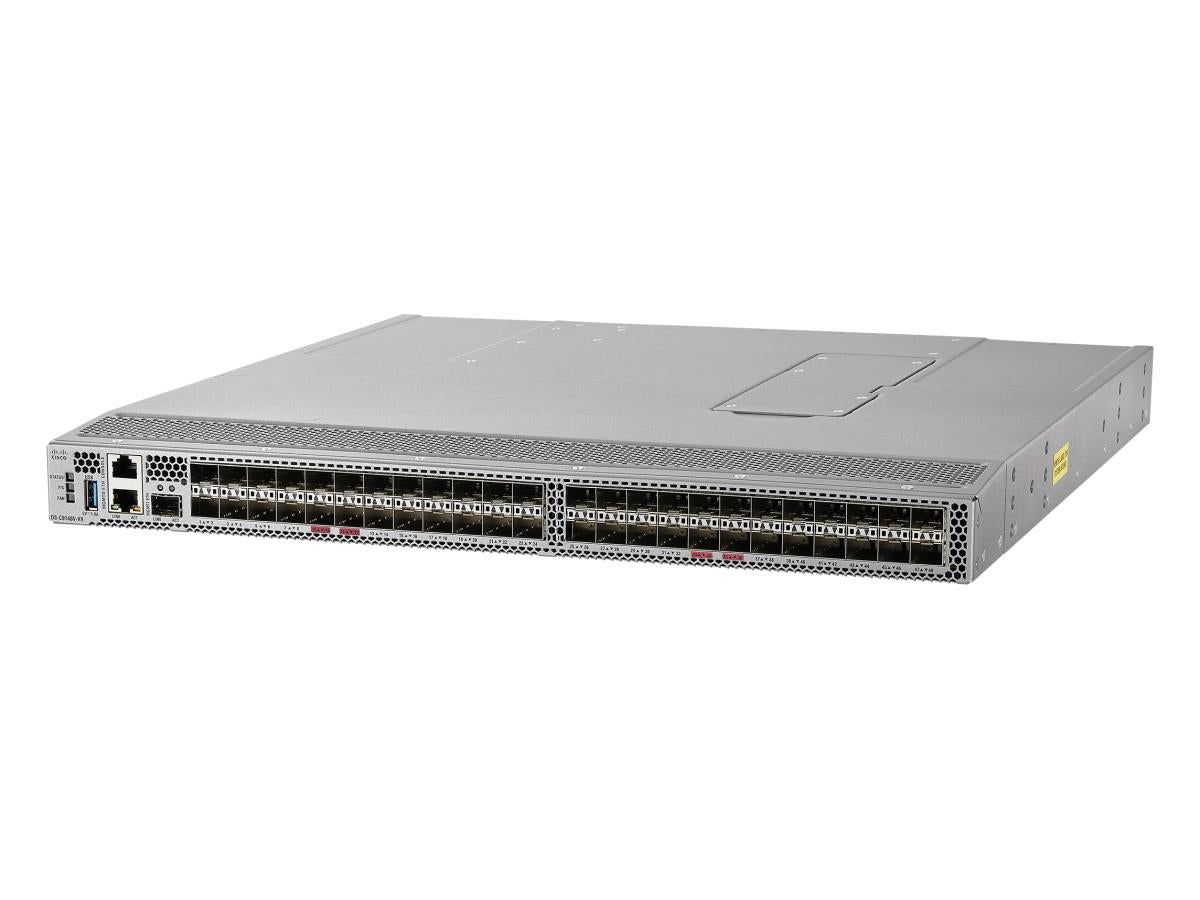

Photo is for illustration purposes only. Actual product may be different.
$74,073.07
$74,073.07
Sale Sold out
MSRP: $108,640.50
Shipping calculated at checkout.
  • 48 active ports preloaded with 64G SW optics
  • Supports up to 64Gbps Fibre Channel data rates
  • 1RU rack-mountable chassis with exhaust airflow
  • Equipped with 4 fans and 2 power supply units
  • Multiple connectivity options: SFP+, Ethernet, RS-232, USB
  • Integrated SAN analytics for advanced diagnostics

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high-density 64G Fibre Channel switching for scalable enterprise SAN deployments
  • Redundant fan and PSU configuration enhances reliability and uptime in critical environments
  • Integrated SAN analytics reduce troubleshooting time and boost operational efficiency

Product Overview

The CISCO MDS 9148V 64G FC Switch is a high-performance, compact Fibre Channel switch tailored for enterprise-class storage area networks. It provides 48 active ports preloaded with 64G SW optics, delivering up to 64Gbps data rates in a standard 1RU rack form. Designed for reliability and scalability, it incorporates 4 cooling fans and 2 power supplies with exhaust airflow.

The switch supports various interfaces including SFP+ ports, a 10/100/1000BASE-T management port, RS-232 serial console, and USB, ensuring versatile connectivity. Integrated SAN analytics enhances diagnostics and cuts down troubleshooting time. Additionally, its TAA compliance makes it suitable for regulated purchasing environments. With features designed to reduce capital expenditure and improve operational efficiency, it's a strong match for data-intensive enterprise deployments.

Specifications

Product Overview
Product Type Fibre Channel Switch
Form Factor 1U Rack-Mountable
Weight 19 lb (8.6 kg)
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Maximum Power Consumption 250 Watts
Cooling Exhaust Airflow with 4 Fans
Redundancy Dual Power Supplies

Wireless Features

Compliance & Origin
Country of Origin Malaysia / Mexico
TAA Compliance Yes
RoHS Compliant Yes
EMC Compliance EN55032, CISPR32, FCC Part 15
Safety Standards UL 60950-1, IEC 60950-1
Certifications CE, CSA, BSMI, RCM, VCCI, NOM

Advanced Security Features
AAA Support RADIUS, TACACS+, LDAP
Role-Based Access Control Yes
Secure Management SSHv2, HTTPS, SNMPv3
FC-SP Authentication Supported
Digital Certificates X.509v3 Certificates supported

Interfaces
Total Fibre Channel Ports 48 Active Ports
Fibre Channel Port Type 64G FC SFP+
Port Speed Up to 64 Gbps per port
Broader Port Speed Support Supports 64G, 32G, 16G, 8G FC
Management Ethernet Port 1 x 10/100/1000BASE-T (RJ-45)
Console Port 1 x RS-232 serial console (RJ-45)
USB Ports 1 x USB 2.0 Type A
Aggregate Throughput Up to 3.2 Tbps

Physical & Environmental
Dimensions (HxWxD) 1.72 x 17.3 x 21.8 in (4.4 x 43.9 x 55.4 cm)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 85% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Altitude 0–10,000 ft (0–3,000 m)
Sound Level 65 dB typical

Cloud Management & Licensing
Management Interface Cisco Data Center Network Manager (DCNM)
Supported Management Protocols SNMPv1, v2, v3; CLI; HTTPS; SSH; XML
Included Software Features SAN Analytics, Slow Drain Detection, Virtual SANs
Licensing Model Port Activation and Feature-Based Licensing
