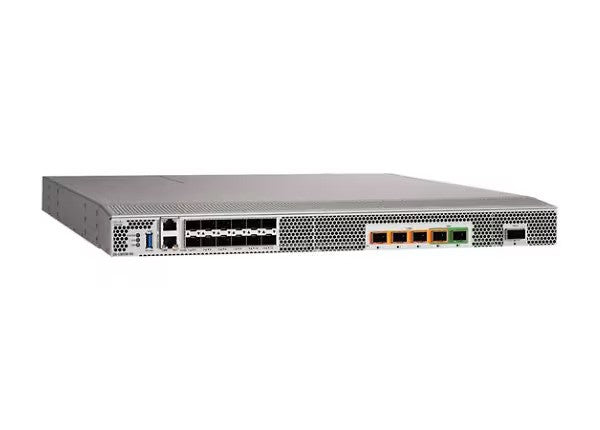

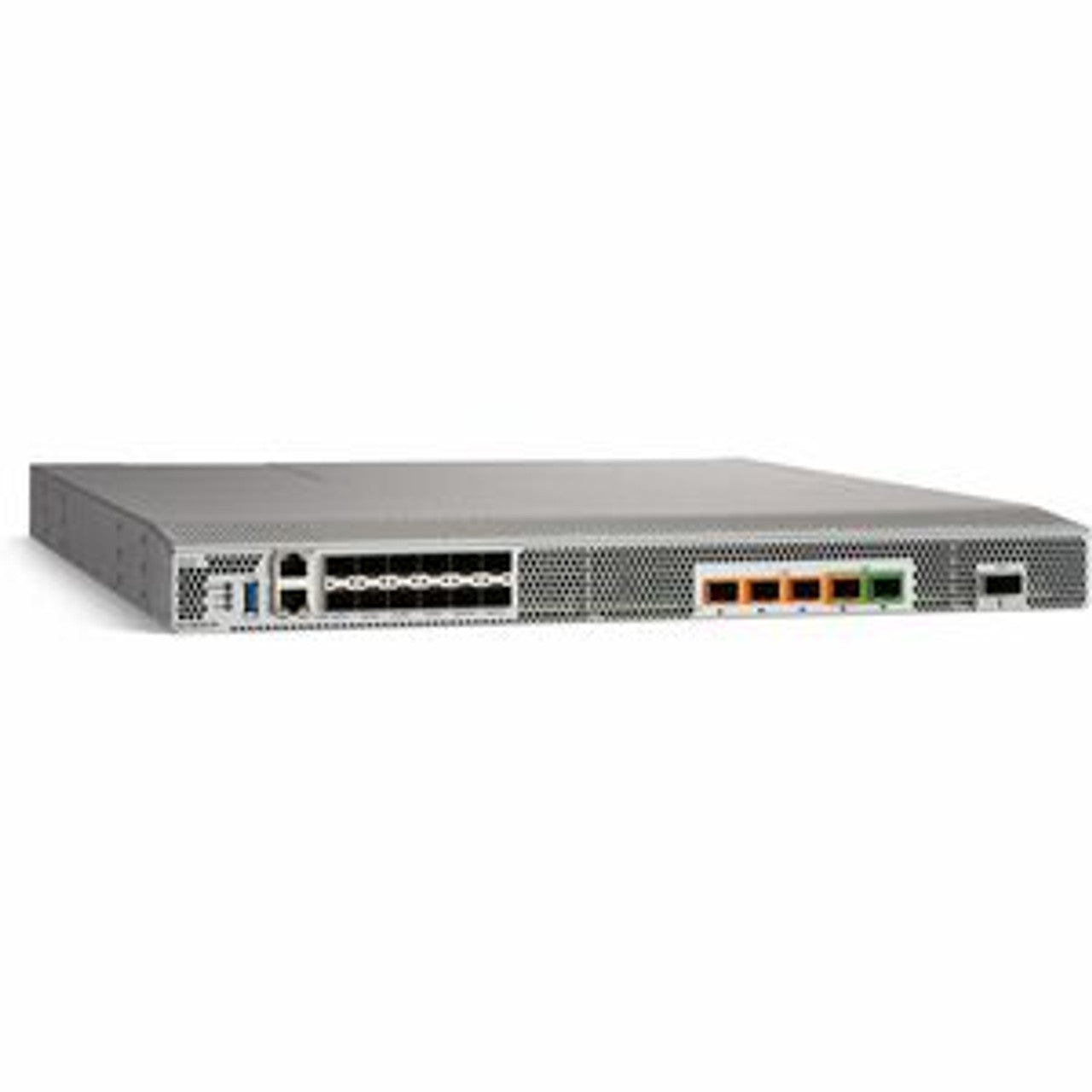

Cisco MDS 9220I 1RU Multiservice Switch, 32Gbps, IPsec

VENDOR: CISCO Mfg Part#: DS-C9220I-12PK9=
  • The Cisco MDS 9220I is a 1RU wired multiservice switch engineered for high-performance data connectivity with support for Fibre Channel and Gigabit Ethernet. Featuring robust interface options including out-of-band management and IPsec authentication, it is designed for enterprise-level networking environments. With a 32Gbps throughput and TAA compliance, the MDS 9220I offers scalable bandwidth and secure connectivity in a compact form factor.
1 1
Photo is for illustration purposes only. Actual product may be different.
$47,930.35
$47,930.35
Sale Sold out
MSRP: $69,716.88
Shipping calculated at checkout.
  • 1RU form factor for high-density, rack-friendly deployment
  • Supports 32Gbps aggregate wired throughput
  • Multiple network protocols: Fibre Channel, Gigabit Ethernet, and out-of-band 10/100 Ethernet
  • Secure transmission with support for IPsec authentication
  • Includes USB and RS-232 serial console interfaces for flexible management
  • TAA-compliant for government and federal compatibility
View full details

Key Benefits

Eye-Insights
  • Delivers high-speed 32Gbps performance in a compact 1RU format, ideal for scalable enterprise deployments
  • Supports robust security protocols including IPsec authentication, ensuring secure data transmission
  • Fully TAA-compliant and manufactured in Mexico, making it suitable for regulated and government use

Product Overview

The Cisco MDS 9220I 1RU Multiservice Switch delivers 32Gbps throughput across Fibre Channel and Gigabit Ethernet interfaces in a compact 1RU form factor. With support for IPsec authentication, out-of-band management, and TAA compliance, it's built for secure, federal-ready network operations. Ideal for enterprise SAN extension and datacenter interconnects, it features comprehensive connectivity via USB, RS-232, and Ethernet ports and operates on a 100–240V AC power range.

Specifications

Primary Information
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Form Factor 1RU
Data Transfer Rate 32 Gbps
Model DS-C9220I-12PK9=
Features SAN consolidation with integrated multiprotocol support; Flexible FCIP port speed
Network Device Type Switch
Power / Device Type Power Supply
Power / Provided (W) 500 Watt
Power Consumption Operational 240 Watt
Power / Voltage Required 100 to 240V AC

Special Feature
COO MEXICO
TAA compliance Yes
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius

Network
Power Over Ethernet (PoE) Support none
PoE Power Consumption none
Remote Management Protocol Syslog; HTTP; HTTPS
Routing Protocol VSAN
Encryption Algorithm AES
Authentication Method IPsec authentication
Interfaces Fibre Channel;Gigabit Ethernet;Out-of-band 10/100 Gigabit Ethernet;RS-232 serial console;USB

Dimensions&Miscellaneous
Width 17.30 Inch
Depth 20.12 Inch
Height 1.72 Inch
Weight 9.8 Kg

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces Fibre Channel;Gigabit Ethernet;Out-of-band 10/100 Gigabit Ethernet;RS-232 serial console;USB
