Cisco MDS 9220I FCIP Switch 4x32G FC 2x1GbE IP 1RU Intake

VENDOR: CISCO Mfg Part#: DS-C9220I-4PIK9
1 3

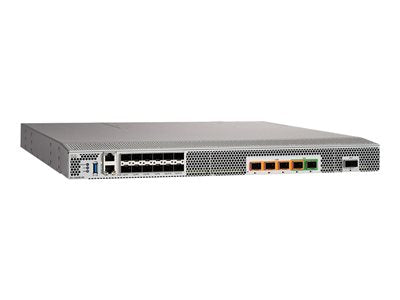

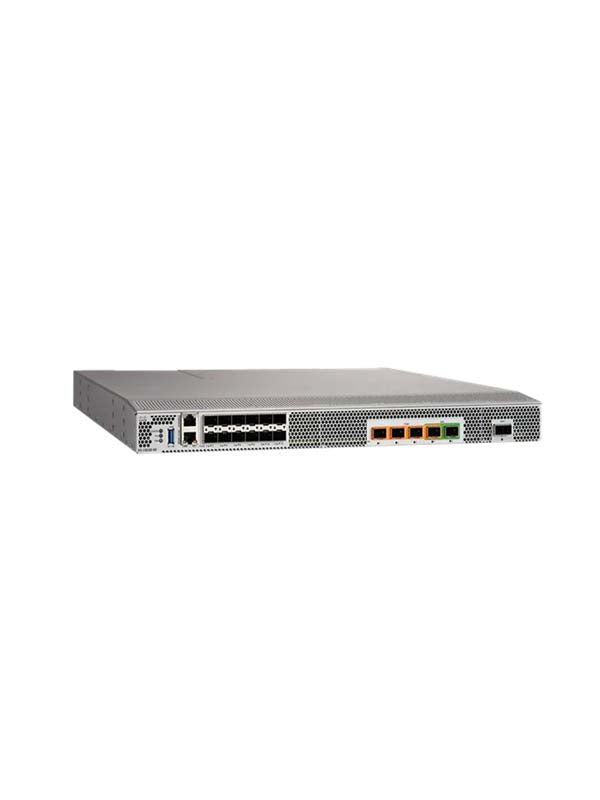

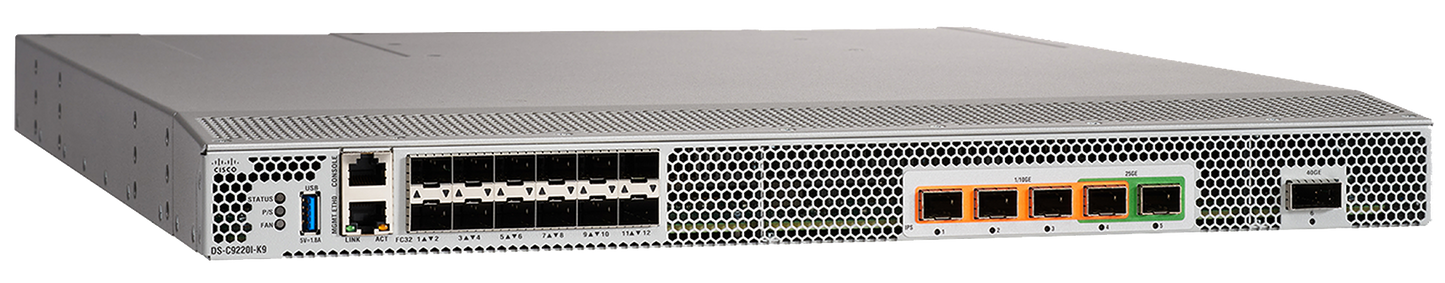

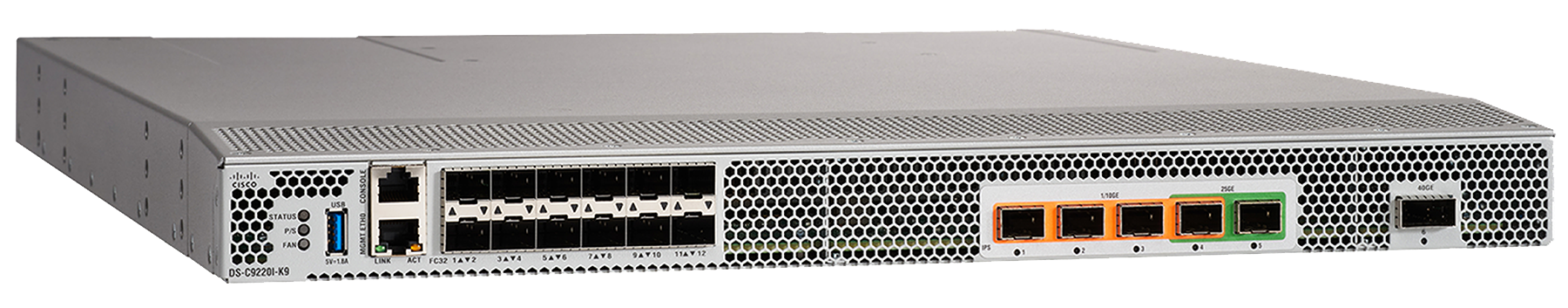

Photo is for illustration purposes only. Actual product may be different.
$20,094.58
$20,094.58
Sale Sold out
MSRP: $29,228.49
Shipping calculated at checkout.
  • 4 x 32Gb Fibre Channel SFP+ and 2 x 1GbE FCIP ports for flexible, high-speed connectivity
  • Supports extensive Fibre Channel protocols including FC-SP, FC-BB, and FC-SW series
  • Redundant 1+1 hot-plug power supplies with 80 PLUS Platinum efficiency
  • Advanced security with AES encryption, IPsec, SSH2, RADIUS, and TACACS+ authentication
  • Rack-mountable 1RU chassis with front-to-back airflow design for data center integration
  • Advanced network management: SNMPv3, RMON, CLI, Syslog, and out-of-band Ethernet/serial access
View full details

Key Benefits

Eye-Insights
  • Ideal for SAN extension and multiservice environments thanks to FCIP support and protocol flexibility
  • Redundancy and efficiency built-in with dual hot-plug power supplies and 80 PLUS Platinum certification
  • Enhanced management and security with full suite of protocols and encrypted access methods, supporting secure, centralized administration

Product Overview

The Cisco MDS 9220I Multiservice Fabric Switch is a high-performance, compact 1RU Fibre Channel over IP (FCIP) switch ideally suited for organizations seeking reliable SAN extension and multiservice convergence. With 4 ports of 32Gb Fibre Channel SFP+ and 2 ports of 1GbE FCIP, it supports flexible, high-bandwidth connectivity options for storage networks. Integrated features like Transparent NPIV mode, ISSU support, and extensive Fibre Channel protocol compliance ensure consistent operation and interoperability.

Designed for enterprise-grade resilience, it offers 1+1 power redundancy with dual hot-plug internal supplies and 80 PLUS Platinum certification. The switch supports advanced remote management options and access control via SNMPv3, SSH2, and RADIUS/TACACS+. Chassis design includes out-of-band management ports and front-to-back airflow. Further reliability is ensured with monitoring features like system indicators and Syslog support.

Ideal for data centers and enterprise environments, the MDS 9220I helps reduce operational complexity while boosting security, scalability, and environmental resilience. Its comprehensive standards compliance and extensive management capabilities make it a strong ROI choice for modern SAN infrastructures.

Specifications

Primary Information
Network Device Type Switch
Model DS-C9220I-4PIK9
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 32 Gbps
Data Link Protocol Gigabit Ethernet
Power / Device Type Power Supply
Power / Provided (W) 500 Watt
Power Consumption Operational 240 Watt
Power / Voltage Required 100 to 240V AC
Features SAN consolidation with integrated multiprotocol support; Flexible FCIP port speed

Interfaces / Ports
Interfaces Fibre Channel;IP storage services;Out-of-band 10/100 Gigabit Ethernet;RS-232 serial console;USB

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO MEXICO / MALAYSIA
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support none
PoE Power Consumption none
Remote Management Protocol Syslog; HTTP; HTTPS
Routing Protocol VSAN
Encryption Algorithm AES
Authentication Method IPsec authentication
Interfaces Fibre Channel;IP storage services;Out-of-band 10/100 Gigabit Ethernet;RS-232 serial console;USB

Dimensions&Miscellaneous
Width 17.30 Inch
Depth 20.12 Inch
Height 1.72 Inch
Weight 9.8 Kg

UNSPSC Code
UNSPSC Code 43222612
