Cisco MDS 9396T 96-Port 32Gb FC Switch with 48 Active Ports

VENDOR: CISCO Mfg Part#: DS-C9396T-48IK9

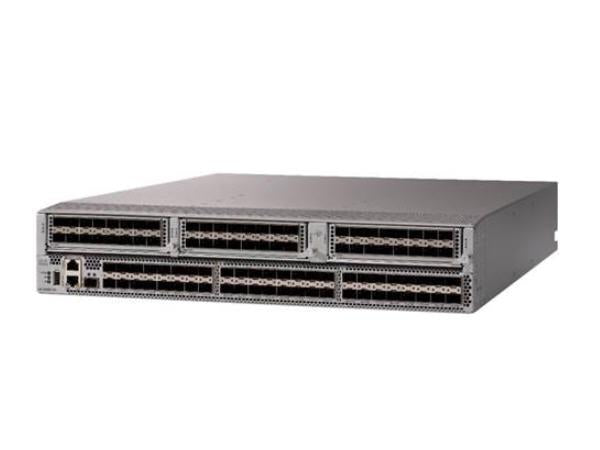

  • The Cisco MDS 9396T is a high-performance, 96-port Fibre Channel switch equipped with 48 active 32Gb ports and designed for scalable, enterprise-level SAN deployments. With advanced network management protocols, robust security features, and 80 PLUS Platinum efficiency, it’s built to support mission-critical infrastructure. Ideal for data centers requiring high throughput, resilience, and powerful remote management capabilities.
1 1

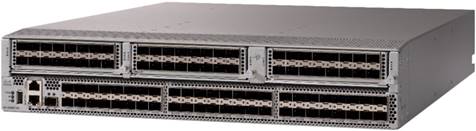

Photo is for illustration purposes only. Actual product may be different.
$61,066.17
$61,066.17
Sale Sold out
MSRP: $88,823.52
Shipping calculated at checkout.
  • 96-port managed Fibre Channel switch with 48 active 32Gb SFP+ ports
  • Rack-mountable 2U enclosure with 2 hot-pluggable power supplies (1+1 redundancy)
  • Supports VRRP, RMON, SNMP v3, SSH-2, HTTPS, SFTP, and CLI management
  • Extensive Fibre Channel protocol support including FC-NVMe and over 40 FC standards
  • Advanced features: TrustSec, secure boot, AAA, RBAC, SPAN, POST diagnostics
  • Included Cisco NX-OS 8.3.1 software and high-efficiency 80 PLUS Platinum power supply
View full details

Key Benefits

Eye-Insights
  • Benefit from 48 active 32Gb Fibre Channel ports for superior data throughput in high-demand environments
  • Includes NX-OS 8.3.1 and built-in power/fan redundancy to maximize uptime and operational stability
  • Meets extensive international compliance standards for enterprise and government network deployments

Product Overview

The Cisco MDS 9396T 96-Port Fibre Channel Switch with 48 active 32Gb SFP+ ports delivers high bandwidth and scalability in a 2U rack-mountable form factor, making it well-suited for dense, mission-critical SAN environments. Designed for performance, it features support for a wide spectrum of Fibre Channel standards and advanced remote management protocols. Redundancy is built in with dual hot-pluggable power supplies and dual hot-swap fan trays. Additional capabilities include secure boot, TrustSec, and loopback diagnostics, running on Cisco’s NX-OS 8.3.1. With rigorous compliance certifications, reliable power architecture, and broad environmental tolerances, this platform stands out as a highly dependable SAN switching solution.

Specifications

Primary Information
Network Device Type Switch
Model DS-C9396T-48IK9
Form Factor 2U
Connectivity Technology Wired
Power / Device Type Power Supply
Power / Voltage Required 90V to 305V AC,192V to 400V DC
Data Transfer Rate 1 Gbps
Networking / Ports Qty 100
Data Link Protocol Gigabit Ethernet
Power / Installed Qty 2
Features High density and scale;Fully integrated SAN analytics; High performance.

Dimensions&Miscellaneous
Width 17.42 Inch
Depth 22.28 Inch
Height 3.39 Inch

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support none
PoE Power Consumption none
Remote Management Protocol SNMP; HTTPS; Syslog
Encryption Algorithm AES
Authentication Method RADIUS
Interfaces active Fibre Channel ports, 10/100/1000 Mbps Ethernet ports; RS-232 serial console port; USB power-on auto-provision ports

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO MEXICO
TAA compliance Yes

Interfaces / Ports
Interfaces active Fibre Channel ports, 10/100/1000 Mbps Ethernet ports; RS-232 serial console port; USB power-on auto-provision ports
