Cisco Meraki 10G Base ZR Transceiver Module, MA-SFP-10GB-ZR

VENDOR: CISCO Mfg Part#: MA-SFP-10GB-ZR
1 3

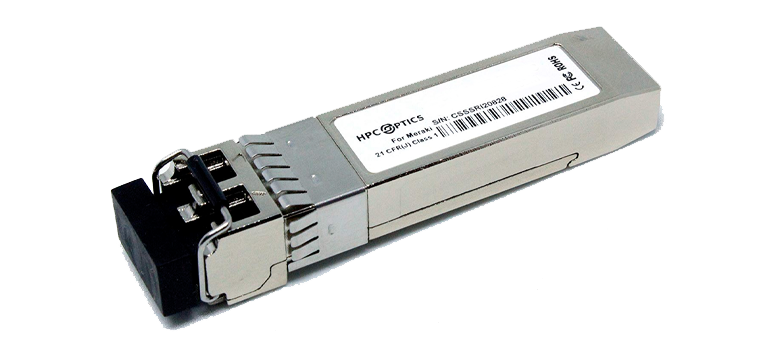

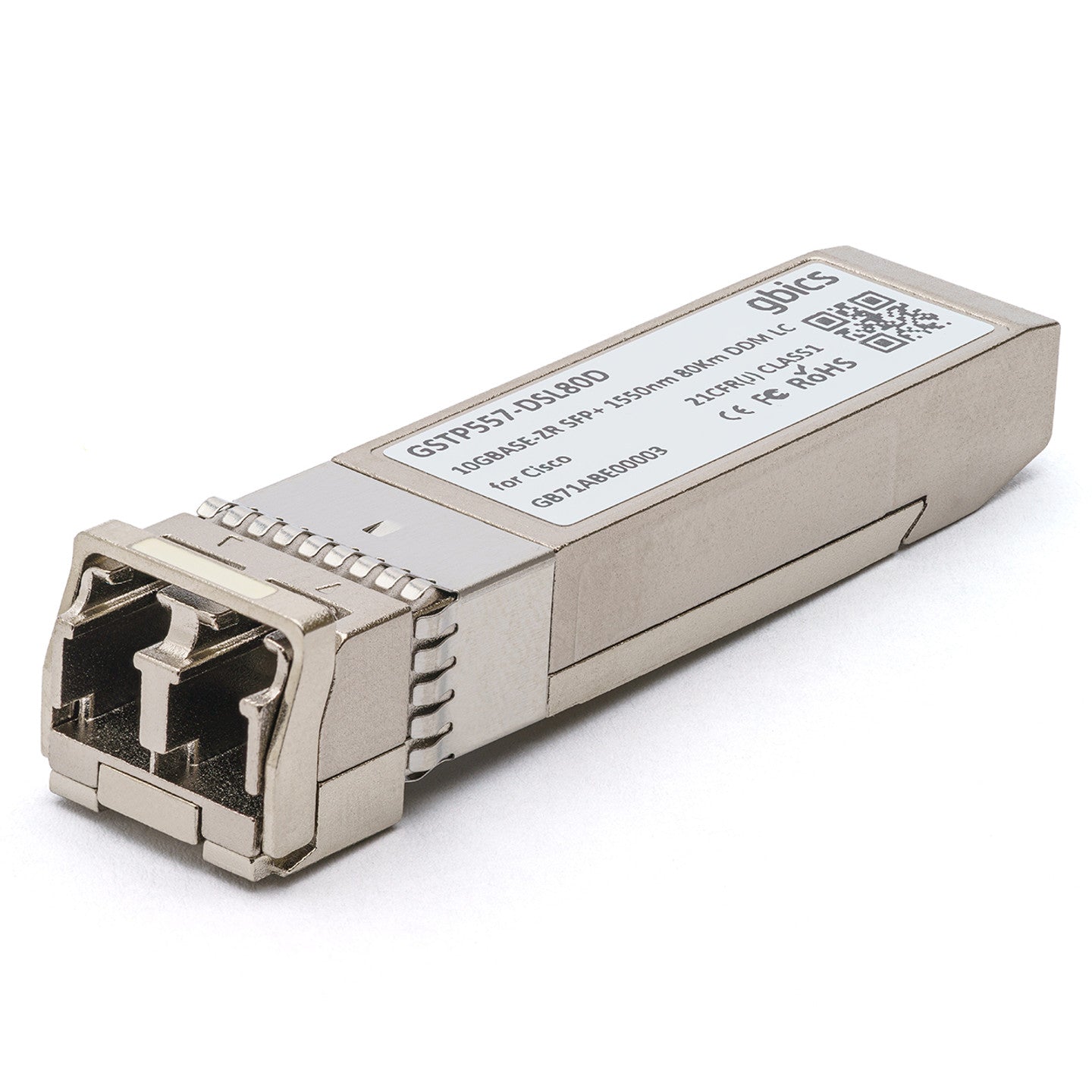

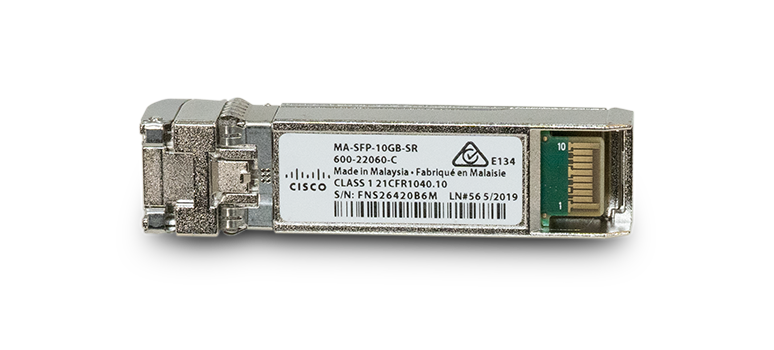

Photo is for illustration purposes only. Actual product may be different.
$12,904.19
$12,904.19
Sale Sold out
MSRP: $18,926.16
Shipping calculated at checkout.
  • Device Type: Transceiver
  • Data Transfer Rate: 10 Gbps
  • Data Link Protocol: Gigabit Ethernet
  • Country of Origin: Japan
  • TAA Compliance: Yes

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-speed 10 Gbps data transfer for demanding business applications.
  • Manufactured in Japan, offering high build quality assurance.
  • TAA compliant, making it suitable for government and regulated enterprise deployments.

Product Overview

The Cisco Meraki 10G Base ZR Module (MA-SFP-10GB-ZR) is a network transceiver engineered to deliver stable and efficient 10 Gbps Ethernet performance. Designed for use within Meraki networking systems, it supports Gigabit Ethernet protocols, making it effective in environments such as enterprise backbones and data center interconnects. Although maximum range is unspecified, the 'ZR' designation suggests long-distance use—verify with Cisco for exact specifications.

The module is manufactured in Japan and is TAA compliant, which supports its use in government or regulated industry procurements. While additional technical specifics such as exact range and form factor are not included, this module remains a valid choice for organizations needing secure, high-bandwidth connectivity.

Specifications

Product Overview
Product Type 10GBase-ZR Transceiver Module
Form Factor SFP+
Weight 75 g
Power Consumption 1.5 W (maximum)
Hot Swappable Yes
Fiber Mode Supported Single-mode
MTBF Over 1,000,000 hours

Physical & Environmental
Dimensions (H x W x D) 13.4 x 56.5 x 8.5 mm
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity (Operating) 10% to 85% (non-condensing)
Relative Humidity (Storage) 5% to 95% (non-condensing)
Enclosure Type Metal
Vibration Resistance IEC 68-2-6

Cloud Management & Licensing
Cisco Meraki Compatibility Yes
Managed via Meraki Dashboard Yes
License Required No (works with licensed Meraki hardware)

Interfaces
Interface Type SFP+ (Small Form-Factor Pluggable Plus)
Network Interface 10GBASE-ZR
Connector Type LC duplex
Wavelength 1550 nm
Cable Type SMF (Single-Mode Fiber)
Typical Reach Up to 80 km
Max Data Rate 10 Gbps
Digital Diagnostic Monitoring (DDM) Yes
Protocol Support 10 Gigabit Ethernet

Compliance & Origin
Country of Origin Japan
TAA Compliant Yes
RoHS Compliant Yes
EMI Standards FCC Part 15 Class B
Safety Standards UL 60950-1
Laser Safety Class 1 FDA and IEC-60825 compliant

Advanced Security Features
Secure Hardware Authentication Yes
Tamper Detection Yes
