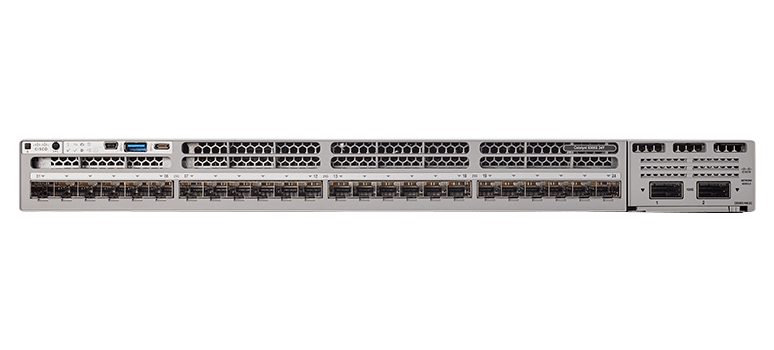

CISCO Meraki C9300 48-port UPOE Switch (C9300-48UXM-M)

VENDOR: CISCO Mfg Part#: C9300-48UXM-M
1 2
Photo is for illustration purposes only. Actual product may be different.
$8,947.65
$8,947.65
Sale Sold out
MSRP: $14,952.39
Shipping calculated at checkout.
  • 48-port configuration: 12 mGig + 36 2.5Gbps ports
  • UPOE (Universal Power over Ethernet) support
  • Integrated 1100W AC power supply
  • TAA compliance for regulated market compatibility
  • Meraki cloud-based network management platform

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports bandwidth-intensive applications with a flexible mix of mGig and 2.5Gbps ports.
  • TAA-compliance ensures suitability for government and enterprise procurement standards.
  • Meraki cloud integration enables simplified and scalable IT management.

Product Overview

The CISCO Meraki C9300-48UXM-M is a high-capacity Layer 3 switch featuring 48 ports, including 12 mGig and 36 2.5Gbps ports for high-speed networking. It supports UPOE to power a wide range of devices and includes a 1100W AC power supply. This switch is TAA-compliant and optimized for cloud-managed Meraki networks, offering streamlined configuration and analytics. Its design supports scalability and efficiency, making it ideal for enterprise-grade IT workloads.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Model C9300-48UXM-M
Series Cisco Catalyst 9300 Series
Form Factor Rack-mountable
Rack Units 1U
Power Supply 1100W AC power supply included
Redundant Power Supply Support Yes
Hot Swappable Components Yes (Power supply and fans)
Switching Capacity 880 Gbps
Forwarding Rate 654.76 Mpps
Weight 7.35 kg (16.2 lbs)
Power Consumption (Full Load) Up to 1100W (with UPOE load)

Wireless Features
Wireless Support Supports wireless access point connections, but not a wireless device itself

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications UL, CSA, CE, FCC, ICES, RoHS, REACH
Safety Standards UL 60950-1, IEC 60950-1, EN 60950-1
EMC Standards FCC Part 15 Class A, EN 55032 Class A

Advanced Security Features
Secure Boot Capabilities Yes
MACsec Encryption Yes (hardware-based 256-bit)
802.1X Authentication Yes
DHCP Snooping Yes
IP Source Guard Yes
Dynamic ARP Inspection Yes

Interfaces
Total Number of Ports 48
Multigigabit Ethernet Ports 12 x 100M/1G/2.5G/5G/10G
2.5G Ethernet Ports 36 x 100M/1G/2.5G
Uplink Interfaces Modular uplink (optional)
Console Port 1 x RJ-45 and 1 x USB mini-Type B
USB Port 1 x Type A for storage and file transfers
Stacking Ports 2 x StackWise-480
PoE Standard UPOE (IEEE 802.3bt, up to 60W per port)
PoE Budget 740W (expandable to 1440W with second PSU)
Stacking Bandwidth 480 Gbps

Physical & Environmental
Dimensions (W x D x H) 44.5 x 44.8 x 4.45 cm (17.5 x 17.6 x 1.75 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% – 90% non-condensing
Storage Humidity 5% – 95% non-condensing
Cooling Internal fans
MTBF 394,770 hours

Cloud Management & Licensing
Management Interface Cisco Meraki Dashboard (cloud-based)
Licensing Required Yes, Meraki license required
Included Management Features Zero-touch provisioning, remote monitoring, alerts, configuration automation, and analytics
Software Defined Access Capable Yes
